Product Description

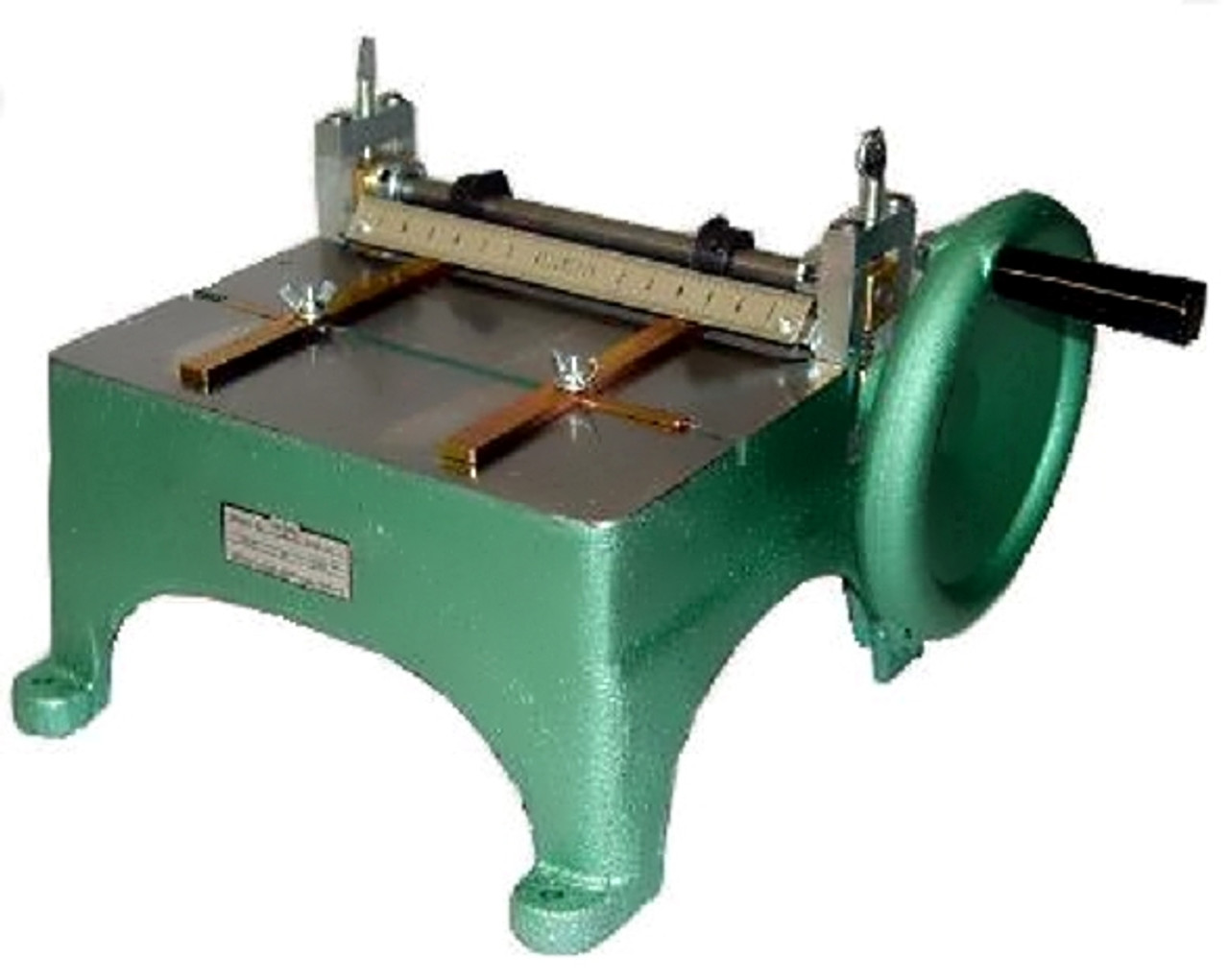

Insulation Former
Our insulation former will form slot insulation quickly and neatly, plain or cuffed, up to 8" wide with any length. It insures uniform slot liners; speeding winding and preventing burnout's due to improperly fitting or torn slot lining. All set-up adjustments are made with thumbscrews, except creasing rollers, which have Allen-head set screws. Insulation is accurately guided between the polyurethane roller and creasing rollers by two guide brackets. The polyurethane roller may be damaged with excessive creasing roller pressure. Vertical adjustments of the roller shaft allow for different thickness of insulation material and for varying pressures between creasing and polyurethane rollers. Do not operate without insulating media between creasing roller and polyurethane roller. When the unit is not in operation, the adjustment thumb screws should be adjusted so as not to exert any pressure on the polyurethane rollers.
This unit is designed for the normal electric motor repair facility that requires different daily settings.
Capacity - 8" maximum width; any length
Troughs - 6" maximum
Warning: Do not operate without insulation paper in rollers or damage to the polyurethane roller will result.
