Product Description
Features:

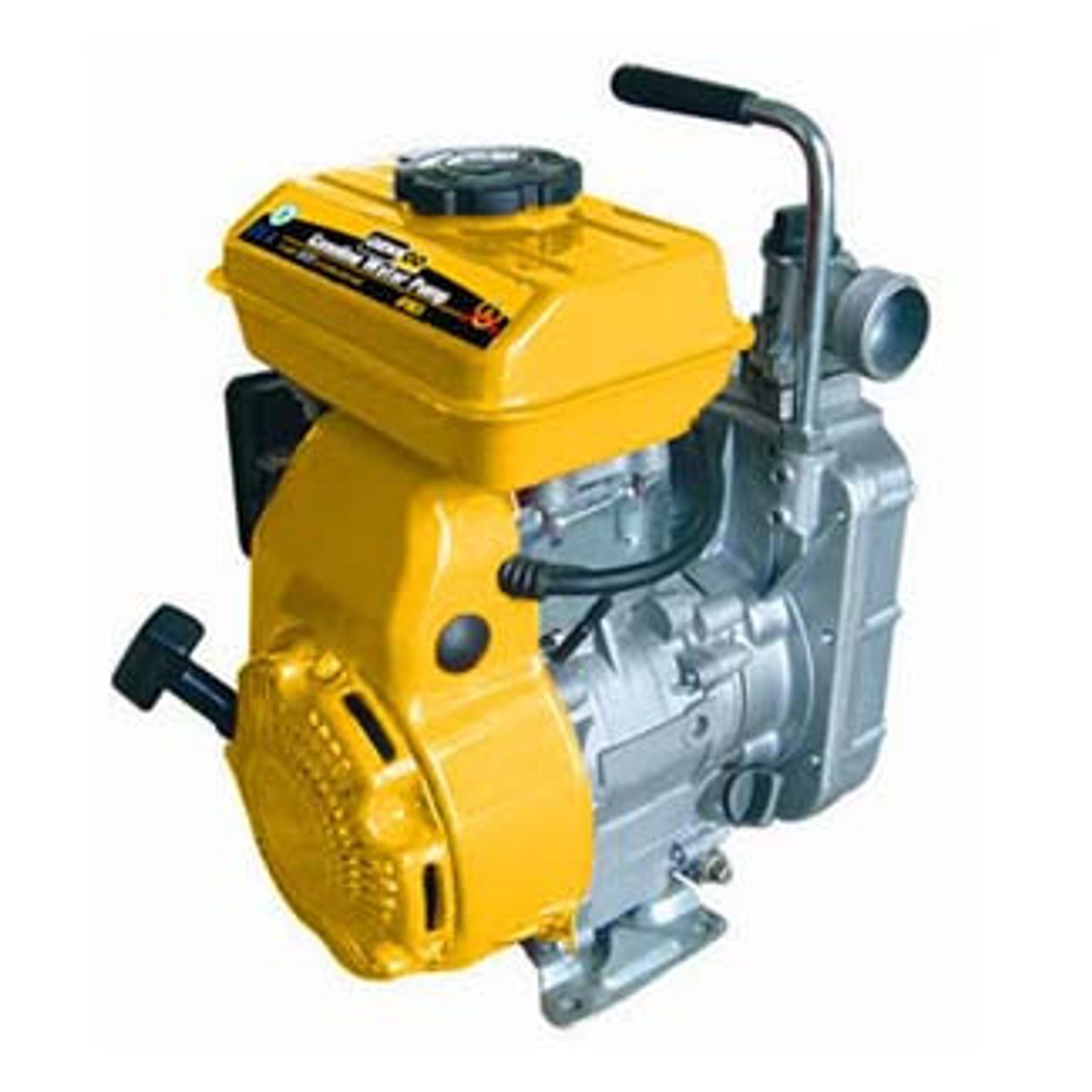

1" Gasoline Water Pump powered by 4-stroke direct injection engine.
Big volume water discharge.
Highly effective mechanical seal.
Compact in structure and light in weight.
Aluminum alloy high pressure casting.
Specifications:
Suction (mm): 38(1in)
Discharge port dia.(mm): 38x1
Max. Capacity (m3/hr): 12
Max. Head (m): 38
Self-priming time(s/4m): 70
Max. Suction Head (m): 7
Model: GG152F
Type: Air-cooled 4-storke OHV25 lnclined Horizontal shaft
Cont. Output (hp)/speed (rpm): 1.8/3600
Displacement (cc): 97
Fuel tank capacity (L): 1.5
Net weight (lbs): 30.86
Dimensions (LxWxH) (in): ~15 x 12 x 14
1" Gasoline Water Pump powered by 4-stroke direct injection engine.
Big volume water discharge.
Highly effective mechanical seal.
Compact in structure and light in weight.
Aluminum alloy high pressure casting.
Specifications:
Suction (mm): 38(1in)
Discharge port dia.(mm): 38x1
Max. Capacity (m3/hr): 12
Max. Head (m): 38
Self-priming time(s/4m): 70
Max. Suction Head (m): 7
Model: GG152F
Type: Air-cooled 4-storke OHV25 lnclined Horizontal shaft
Cont. Output (hp)/speed (rpm): 1.8/3600
Displacement (cc): 97
Fuel tank capacity (L): 1.5
Net weight (lbs): 30.86
Dimensions (LxWxH) (in): ~15 x 12 x 14
1" Gasoline Water Pump powered by 4-stroke direct
