Product Description

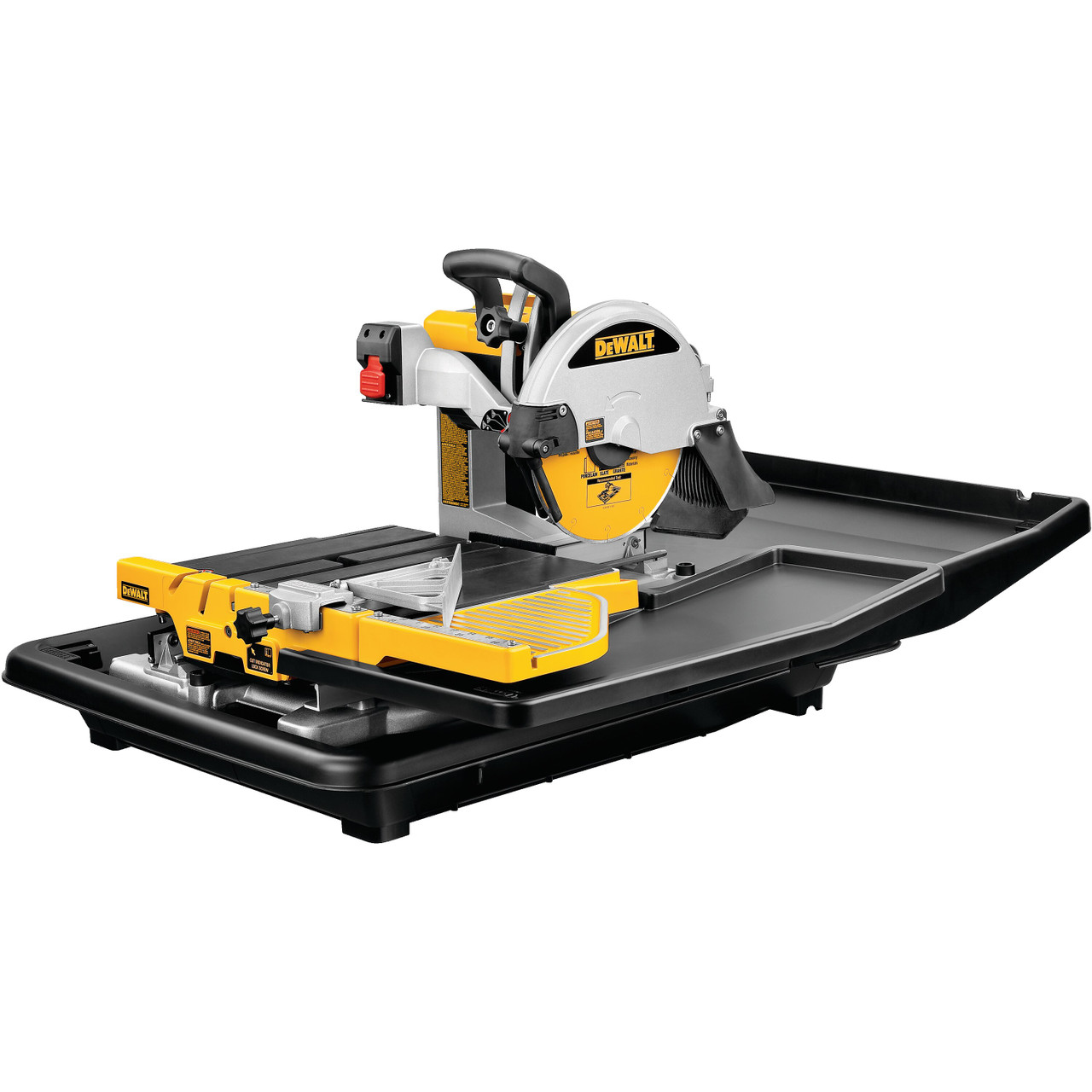

This 10 in. Wet Tile Saw is the lightest in its class. One person can easily move it on and off the jobsite. It provides 25 in. rip cut capacity and up to 28 in. plunge cuts, as well as 18 in. by 18 in. tile diagonal cuts. The incredibly stable, rubber-matted cutting cart will provide consistent accuracy to within 1/32 in. over 18 in. It features excellent water containment, allowing for setup inside a finished home. Durable aluminum framing and stainless steel rails provide durability in the harsh jobsite environment.
FEATURES & SPECS
FEATURES
- Cutting capacity to rip cut 25 inches or 28 inches with a plunge, and cut 18 in. x 18 in. tile on a diagonal
- Lightest saw in its class at 69 lbs., allowing one person to carry it onto the jobsite
- Cut line indicator and stainless steel rollers provide stable, accurate cutting to within 1/32 in. over 18 in. cuts.
- Powerful 1.5 HP motor cuts through dense porcelain, ceramic, granite, marble, and glass tiles
- Rigid aluminum frame and arm is built to last on the jobsite and maintains alignment of the blade and cart
- Side and rear water extensions direct water back into the tub, keeping the workspace and surrounding areas clean
- Ability to adjust the pump's water feed and the nozzles at the blade in order to minimize water spray
- Integrated beveling to quickly make angled cuts up to 45°
- Convenient onboard storage for side extension, miter guide, blade wrench and hex wrench
SPECIFICATIONS
- ADJUSTABLE WATER NOZZLES TRUE
- AMPS 15 AMPS
- ARBOR SIZE 5/8 IN
- BEVEL CAPACITY 45 º
- BLADE DIAMETER 10"
- CORD LENGTH 8 FT
- DIAGONAL CUT CAPACITY 18 IN BY 18 IN
- EDGE GUIDE 45° & 90°
- GFCI TRUE
- MAX DEPTH OF CUT 3 1/8 IN
- MAX RIP CAPACITY 25 IN
- MAX RIP CAPACITY WITH PLUNGE 28 IN
- PEAK HORSEPOWER 1.5 HP
- PLUNGE FEATURE YES
- POWER TOOL TYPE CORDED
- REPLACEMENT BLADES DW4764 PORCELAIN TILE BLADE
- RPM 4200 RPM
- TOOL HEIGHT 24 IN
- TOOL LENGTH 36 IN
- TOOL WEIGHT 69 LBS
- TOOL WIDTH 29 IN
- VOLTAGE 120 V
INCLUDES
- D24000 10 in. Wet Tile Saw
- DW4764 10 in. XP4 Porcelain Tile Blade
- Submersible Pump
- Water Pan
- Side Water Tray
- Rear Water Tray
- Cutting Cart Side Extension
- Angle/Rip Guide
- Blade Wrench
- Hex Wrench
