Product Description

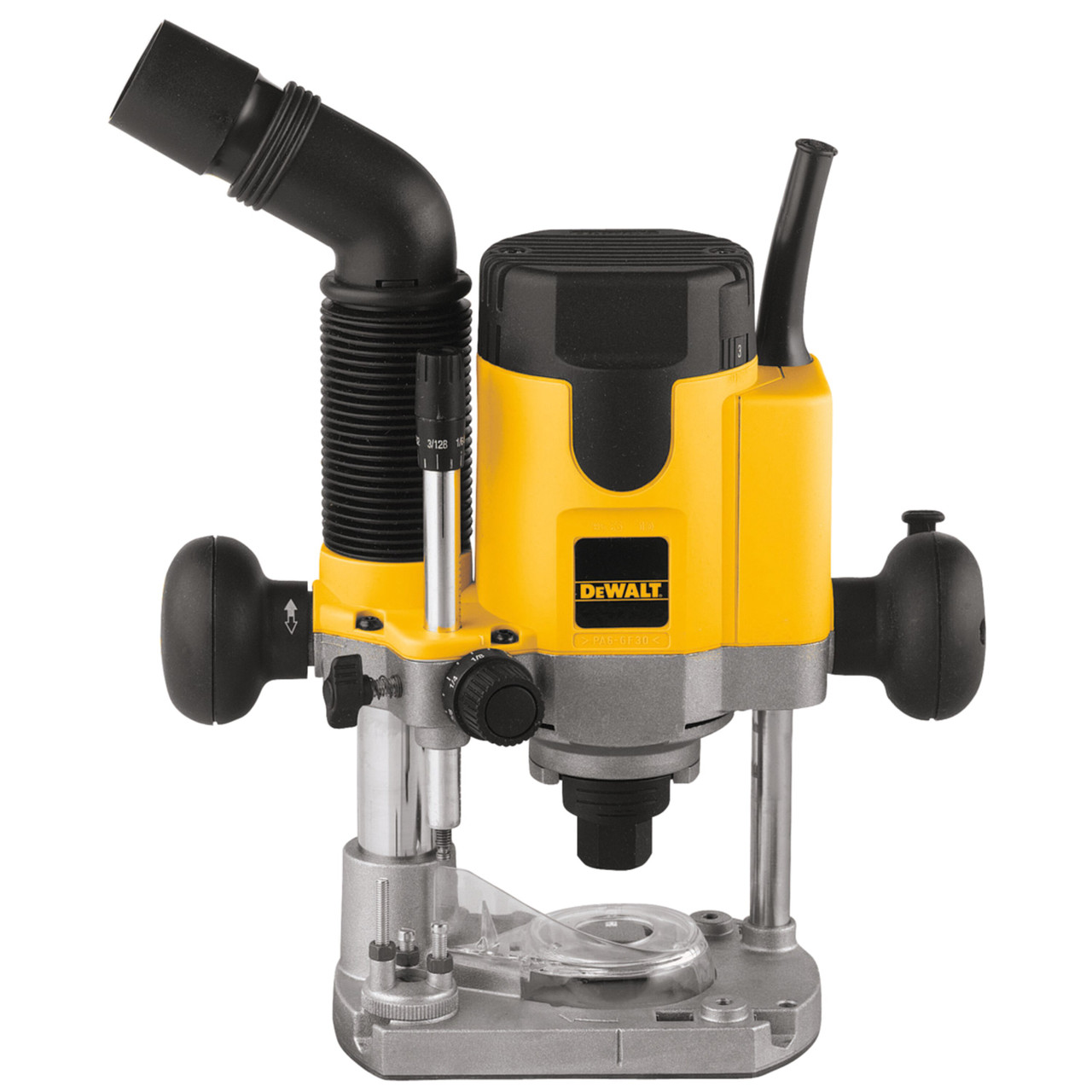

The DW621 2 HP EVS Plunge Router has a full wave electronic variable speed motor with soft start. Runs at 8,000-24,000 rpm with constant speed under load to ensure a quality finish in all materials. Integral dust collection system efficiently removes chips and provides superior bit visibility.
FEATURES & SPECS
FEATURES
- Full-wave electronic variable speed motor with soft start runs at 8,000-24,000 rpm with constant speed under load to ensure a quality finish in all materials
- Rack and pinion depth adjuster with micro-fine adjusting allows quick, accurate set-up
- Integral dust collection system efficiently removes chips and provides superior bit visibility
- Spindle lock button allows for single-wrench bit changes
- Innovative rubber-coated knobs have plunge-lock and on/off built-in for maximum user control
- 1/4" - 1/2" collet capacity for greater versatility
- 10 amp motor uses state of the art circuitry for soft starts and smooth operation
- One-piece motor shaft and spindle ensures perpendicularity and accuracy
- Guide Bushing adapter plate accepts standard guide bushings for template work
- Phosphorous bronze bushings provide a smooth and accurate plunge
- Micro-fine, depth adjustments in increments of 1/256"" for extreme accuracy "
SPECIFICATIONS
- AMPS 10.0 AMPS
- BASE DIMENSION 4-5/16 X 6-1/4 IN
- COLLET DIAMETER 1/2", 1/4 IN
- DEPTH STOP 3 STAGE TURRET STOP
- NO LOAD SPEED 8,000-24,000 RPM
- PEAK HORSEPOWER 2 HP
- PLUNGE STROKE 2-1/8 IN
- POWER TOOL TYPE CORDED
- SPINDLE LOCK YES
- TOOL WEIGHT 9.0 LBS
INCLUDES
- 1/4" and 1/2" collets
- Template guide bushing adapter
- Wrench
