Product Description

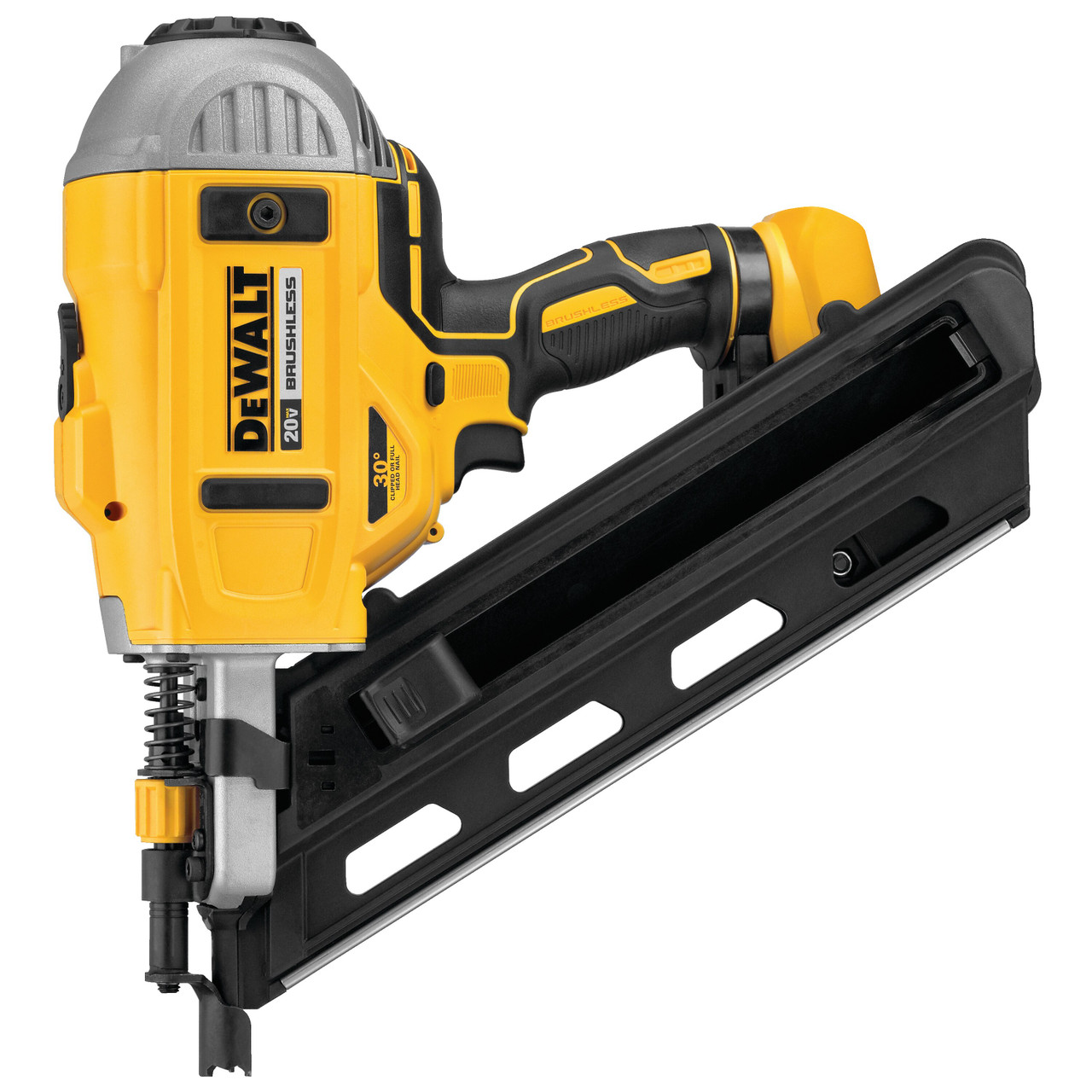

The 20V MAX* Cordless 30° Paper Collated Framing Nailer drives nails from 2 in. to 3-1/2 in. With long runtime and powerful versatility, this nailer is built to handle tough jobsite duty. This tool features our upgraded engine design for increased power and drive quality compared to previous DEWALT cordless nailers. Its compact shape, well-balanced design, and easy-to-operate features make it an efficient, highly productive tool in your team's hands.
FEATURES & SPECS
FEATURES
- Dual-speed motor optimized to drive a wide range of fasteners for a variety of applications
- Tool-free selector switch for sequential or bump fire modes
- Tool-free depth adjustment for precise nail placement
- Stall release lever to reset driver blade in the event of a jam
- Adjustable rafter hook
- Easy access to the nosepiece for removal of jammed nails
- Dry fire lock out prevents tool from firing when nails are low
- 33° magazine holds up to 55 paper collated nails
- Capable of driving 3-1/2 in. fasteners into dense lumber
SPECIFICATIONS
- BELT / RAFTER HOOK TRUE
- DRY FIRE LOCKOUT TRUE
- FASTENER DIAMETER RANGE .113 - .131 IN
- FASTENER LENGTH 2 TO 3-1/2 IN
- FIRING / ACUTATION MODE BUMP AND SEQUENTIAL
- MAGAZINE ANGLE 30 DEGREE
- MAGAZINE CAPACITY 55 NAILS
- MAGAZINE LOADING REAR LOAD
- SYSTEM 20V MAX*
- TOOL HEIGHT 13.5 IN
- TOOL LENGTH 13.25 IN
- TOOL WEIGHT 8 LBS
INCLUDES
- DCN692 Framing Nailer
- No-Mar Tip
- Manual
