Product Description

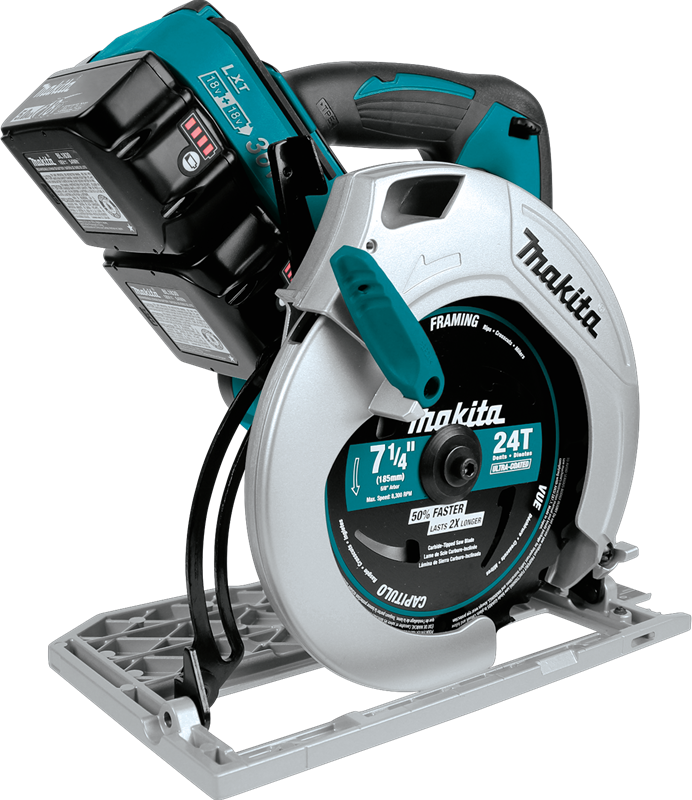

The 36V (18V X2) LXT® 7-1/4" Circular Saw (model XSH01PT) is the world’s first cordless 7-1/4" circular saw powered by two 18V batteries. The XSH01PT provides the performance of a corded saw without leaving the strongly-preferred 18V platform.
It’s part of Makita’s expanding 18V LXT® series, the world’s largest cordless tool system powered by 18V Lithium-Ion batteries. Makita 18V LXT® batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Longer Run Time
The Makita-built motor delivers 4,800 RPM for fast cutting and ripping. In performance testing the XSH01PT/Z made 250 cuts in 2x4 lumber per charge**, which is up to 2.5 times more cuts per charge than the Makita 18V Cordless 6-1/2" Circular Saw, model BSS611Z.
More Capacity, Fast Cutting
With a 7-1/4" blade the XSH01PT/Z has a cutting capacity of 2-5/8" at 90 degrees. In side-by-side testing the XSH01PT/Z exhibited corded power and speed, cross-cutting a 2x10 in only 1.5 seconds and matching the cutting time of the Makita 5007F corded circular saw.
More Features, Less Weight
Model XSH01PT/Z has a reinforced magnesium base for added durability and weighs only 10.1 lbs. (with batteries). The saw includes two L.E.D. indicators that monitor battery charge status and temperature. Additional features include an electric brake for maximum productivity, rubberized soft grip handles for increased comfort, and a built-in dust blower engineered to clear the line-of-cut for improved visibility.
FEATURES
- Powered by two LXT® batteries; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord
- Makita-built motor delivers 4,800 RPM for faster cutting and ripping
- Reinforced magnesium base for durability
- Weighs only 10.1 lbs. with batteries for operator comfort
- Large cutting capacity (2-5/8” at 90°) and bevel capacity (0°- 50°) with a positive stop at 45°
- Rubberized soft grip handles for increased comfort
- Large rubberized levers for quick and easy depth and bevel adjustments
- On-board blade wrench for convenience
- Flat motor housing design for stability when changing the blade
- Built-in dust blower cleans the line of cut for operator accuracy
- Electric brake for maximum productivity
- Two 18V LXT® Lithium-Ion Batteries deliver the power and performance of a corded saw* without leaving the 18V LXT® platform
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B provides up to 65% more run time per charge compared to BL1830
- L.E.D. battery and temperature indicators monitor battery charge status and temperature
- Ideal for framers, formers, builders, roofers, and more
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- Dual Port Rapid Optimum Charger charges two batteries at the same time
- The Dual Port Rapid Optimum Charger communicates with the batteries built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
- For more efficient charging, the Dual Port Rapid Optimum Charger has built-in fans to cool the batteries faster
- Makita technology delivers category-leading charge time, so the battery spends more time working and less time sitting on the charger
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B reaches a full charge in 45 minutes or less
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
- 18V LXT® Lithium-Ion 5.0Ah battery (BL1850B) features an integrated L.E.D. battery charge level indicator
- Only use genuine Makita batteries and chargers
- 3-year limited warranty on tool, battery and charger
- *Compared to Makita 5007 Series
SPECS
- Blade Diameter : 7-1/4"
- Arbor : 5/8"
- Max. Cutting Capacity (at 90°) : 2-5/8"
- Max. Cutting Capacity (at 50°) : 1-11/16"
- Max. Cutting Capacity (at 45°) : 1-7/8"
- No Load Speed : 4,800 RPM
- Battery : 2X 18V LXT® Lithium-Ion
- Overall Length : 14"
- Net Weight (with battery) : 10.1 lbs.
- Power Type : Cordless
- Handle Type (Circular Saws) : Top handle
- Form Factor (LXT) : X2
- Motor Type : Brushless
- Shipping Weight : 21.1 lbs.
- UPC Code : 088381-841917
