Product Description

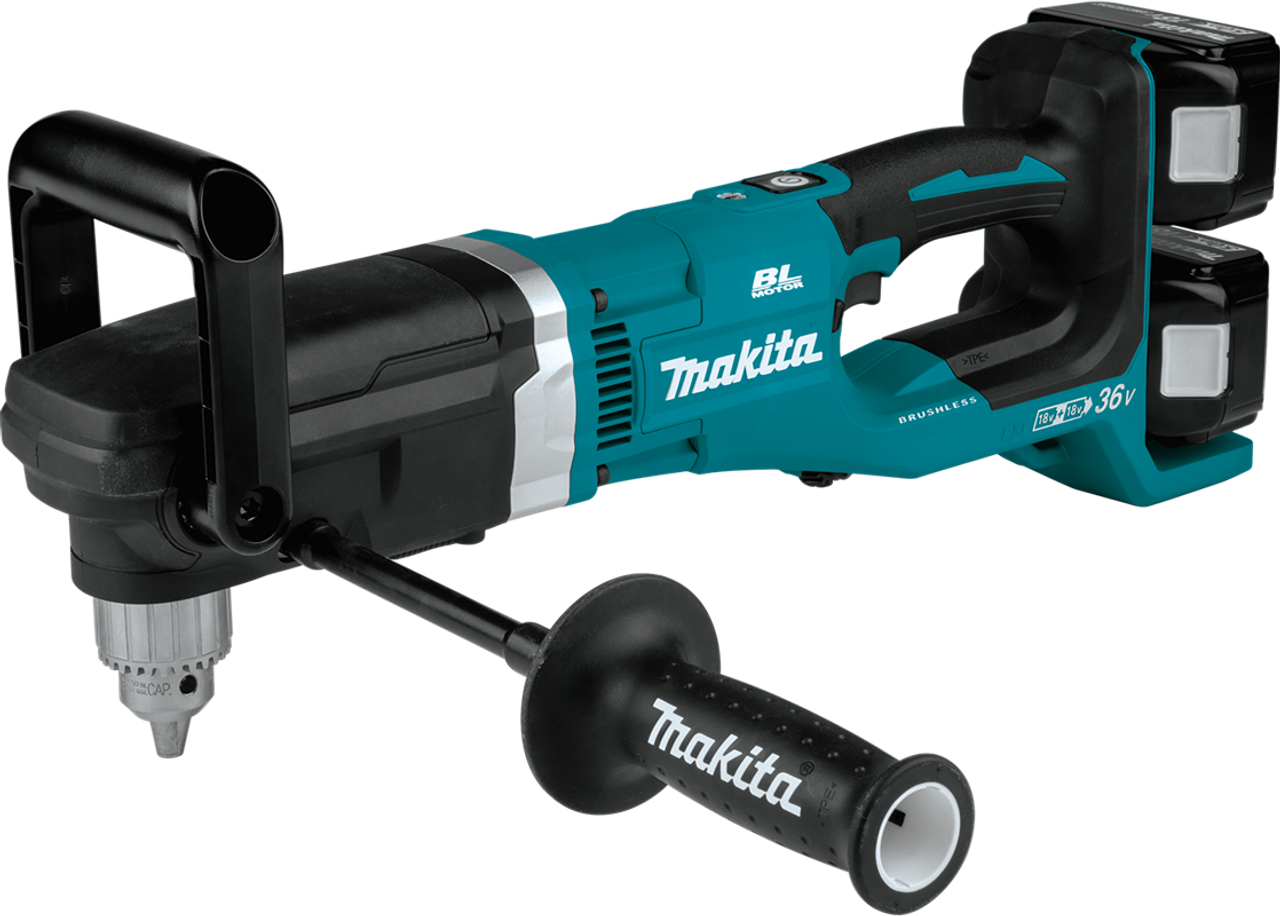

Makita, a pioneer in brushless motor technology and battery innovation, combines both in the 36V (18V X2) LXT® Brushless ½” Right Angle Drill. It's powered by two 18V LXT® Lithium-Ion batteries for maximum performance, and has an electronically-controlled BL™ Brushless motor that matches torque and RPM to the changing demands of the application. Makita 18V X2 means freedom from the cord, and the XAD03 will take on the most demanding applications like drilling up to 6-1/4” holes with hole saws and 4-5/8” holes with self-feed bits. Best of all, users can remain in one battery platform, using the same fast-charging 18V batteries with the XAD03 as they use across the expansive Makita 18V LXT® cordless system.

The XAD03 has a long list of features for drilling with superior speed and efficiency. The Makita BL™ Brushless Motor combined with X2 LXT® technology delivers no-load drilling speeds of 0-350 RPM and 0-1,400 RPM. Under load, the Automatic Speed Change™ technology adjusts drill speed and torque during drilling for optimum performance. Added features include an electric brake for maximum productivity, and a built-in clutch that reduces gear damage by disengaging gears if the bit binds (low speed only). It’s powered by two 18V LXT batteries for maximum power, speed and run time without the hassles of a cord. When using two 18V 5.0Ah batteries and a self-feed bit (bit sold separately), the XAD03 will deliver up to 160 2-9/16" holes per charge in 2x SPF.

It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

FEATURES

Powered by two LXT® batteries; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord
Drills up to 6-1/4" holes with hole saws and 4-5/8" holes with self feed bits
Drills up to 160 2-9/16" holes per charge in 2x SPF using two 5.0Ah batteries and self feed bit (self feed bit sold separately)
Makita BL™ Brushless Motor combined with X2 LXT® technology delivers no-load drilling speeds of 0-350 RPM and 0-1,400 RPM for maximum efficiency
Automatic Speed Change™ technology adjusts drill speed and torque during drilling for optimum performance
Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
Metal-gear housing increases tool durability and extends reliability
Torque limiter; built-in clutch reduces gear damage by disengaging gears if the bit binds (low speed only)
Electric brake for maximum productivity
Variable 2-speed design (0-350 RPM and 0-1,400 RPM) for optimum speed control and drilling versatility
Built-in L.E.D. light illuminates the work area
Built-in tether notch (tether sold separately)
Includes chuck key with convenient on-tool storage
Auto power-off feature preserves battery and tool life
Adjustable top handle for easy positioning
Ergonomically designed handle with rubberized soft grip provides increased comfort on the job
Includes side handle for better bracing and control
Compact and ergonomic design at 21-1/4" long; weighs only 14.0 lbs. with batteries for reduced operator fatigue
Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and SPM to the changing demands of the application
Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
18V LXT® Lithium-Ion 5.0Ah batteries (BL1850B) feature an integrated L.E.D. battery charge level indicator
18V LXT® Lithium-Ion 5.0Ah batteries (BL1850B) reach a full charge in 45 minutes or less
Dual Port Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
Dual Port Rapid Optimum Charger has a built-in fans to cool the batteries for faster, more efficient charging
Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
3-year limited warranty on tool, battery and charger
Only use genuine Makita batteries and chargers

SPECS

Capacity (wood, w/ hole saw) : 6-1/4"
Capacity (wood, w/ ship auger bit) : 2"
Capacity (wood, w/ self feed bit) : 4-5/8"
No Load Speed (var. 2 spd) : 0 - 350 / 0 - 1,400 RPM
Battery : 2X 18V LXT® Lithium-Ion
Overall Length : 21-1/4"
Net Weight (with battery) : 14 lbs.

Chuck Size : 1/2"
Chuck Type : Keyed
Form Factor (LXT) : X2
Motor Type : Brushless
Shipping Weight : 29 lbs.
UPC Code : 088381-859035
