Product Description
Features :

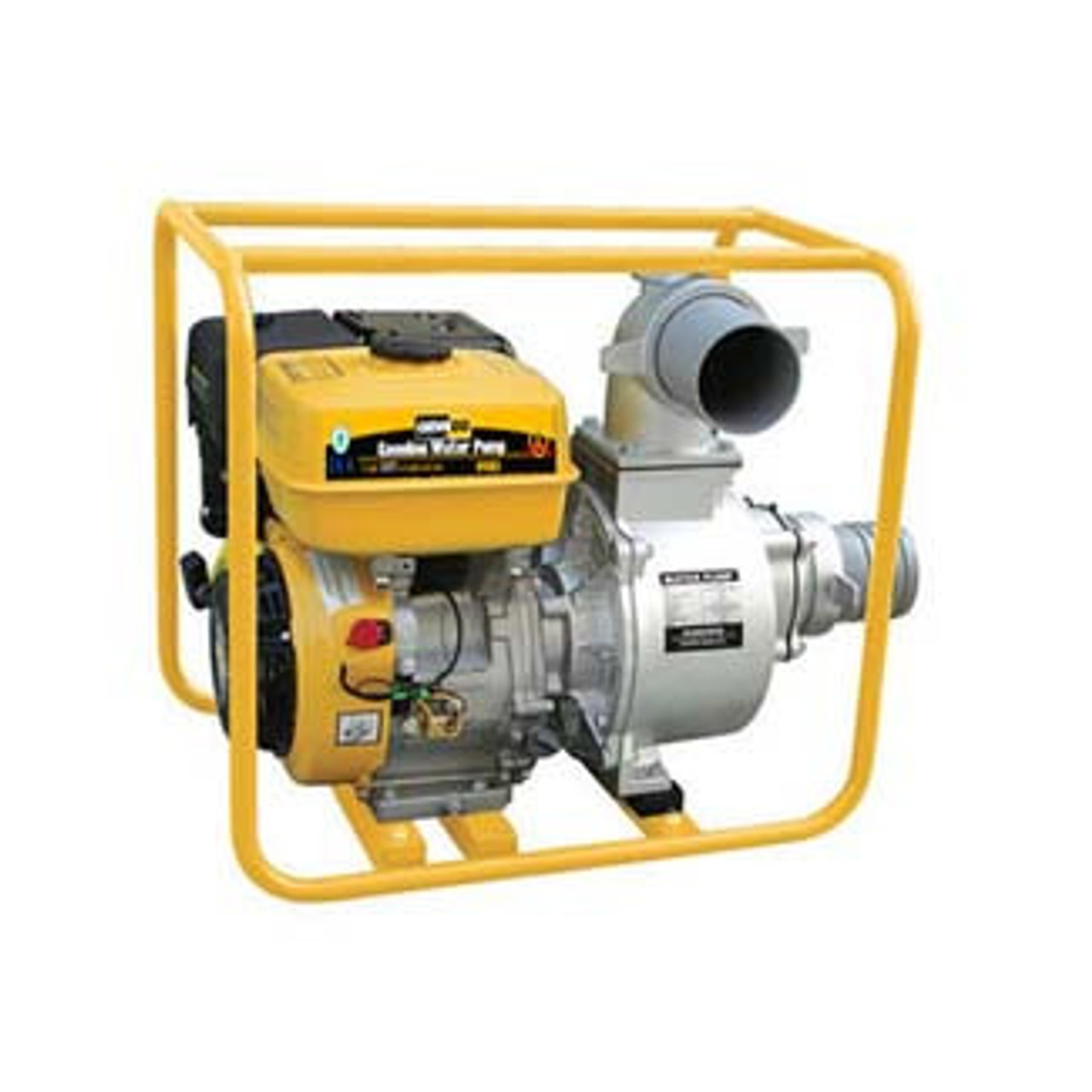

4" Gasoline Water Pump powered by 4-stroke direct injection engine.
Big volume water discharge.
Highly effective mechanical seal.
Compact in structure and light in weight.
Aluminum alloy high pressure casting.
Specifications:
Suction (mm): 100(4in)
Discharge port dia.(mm): 100x1
Max. Capacity (L/min): 1600
Max. Head (m): 31
Self-priming time(s/4m): 180
Max. Suction Head (m): 8
Model: GG173F
Type: Air-cooled 4-storke OHV25 lnclined Horizontal shaft
Cont. Output (hp)/speed (rpm): 9/3600
Displacement (cc): 242
Fuel tank capacity (L): 6
Net weight (lbs): 108
Dimensions (LxWxH) (in): ~25 x 20 x 23
4" Gasoline Water Pump powered by 4-stroke direct injection engine.
Big volume water discharge.
Highly effective mechanical seal.
Compact in structure and light in weight.
Aluminum alloy high pressure casting.
Specifications:
Suction (mm): 100(4in)
Discharge port dia.(mm): 100x1
Max. Capacity (L/min): 1600
Max. Head (m): 31
Self-priming time(s/4m): 180
Max. Suction Head (m): 8
Model: GG173F
Type: Air-cooled 4-storke OHV25 lnclined Horizontal shaft
Cont. Output (hp)/speed (rpm): 9/3600
Displacement (cc): 242
Fuel tank capacity (L): 6
Net weight (lbs): 108
Dimensions (LxWxH) (in): ~25 x 20 x 23
4" Gasoline Water Pump powered by 4-stroke direct injection engine
