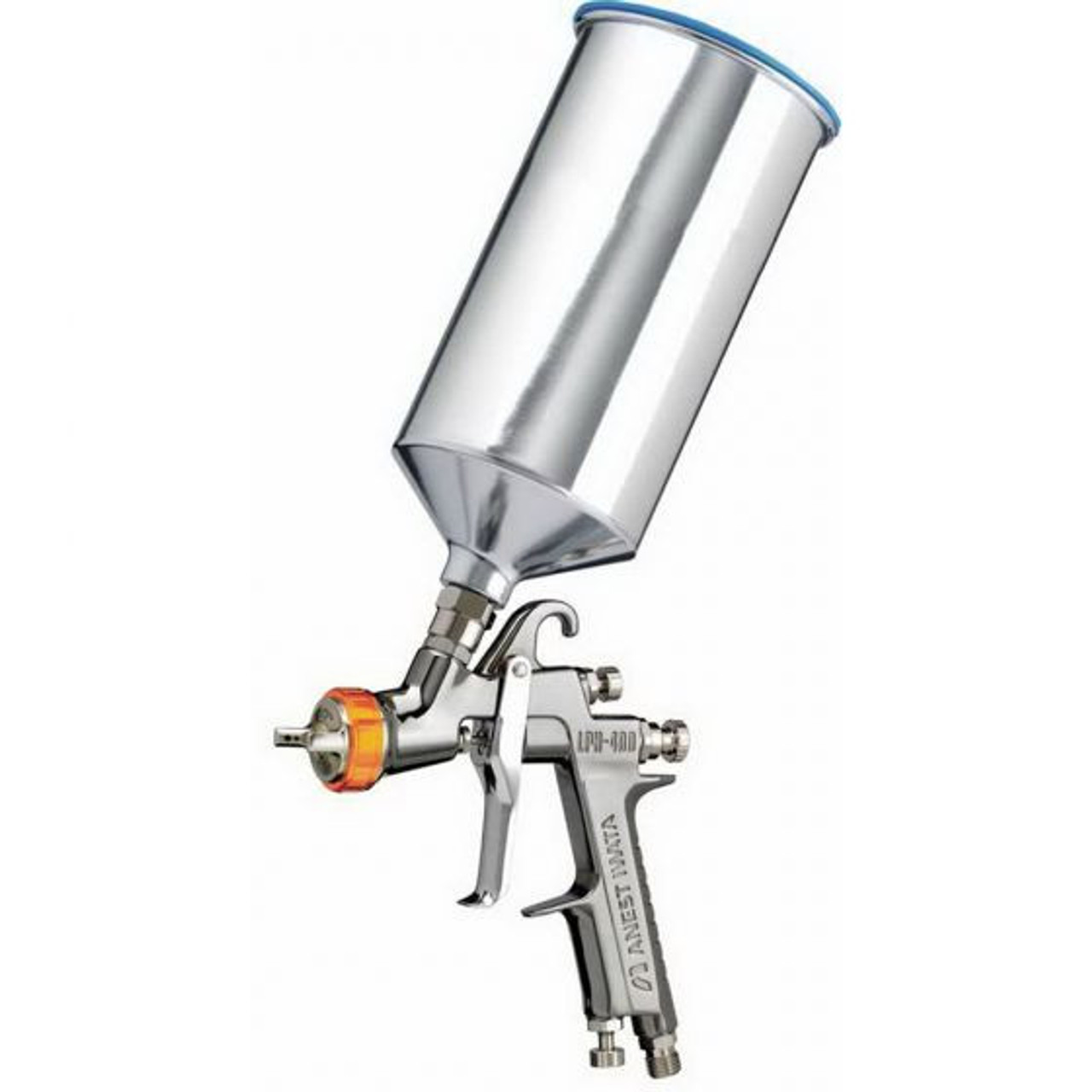

Product Description
Features
- Patented LV technology with split nozzle for increased material savings
- Ideal for general-purpose use
- HVLP technology with low operating air pressure
- Quality surface for an easy cleaning
- Minimal wear parts for easy maintenance
- Pre-atomization technology with split nozzle
- Specially designed orange cap for spraying metallics, stains, and dyes
- Compatible with the 3M PPS cup system (Adapter Type 2)
Teaming up with our LPH400 LVB the LPH400 LVX eXtreme basecoat technology was developed for use with 90 to 95% of basecoat colors and engineered to provide increased productivity in application for solvent or waterborne basecoats. While the LPH400 LVB remains the set-up for the most difficult or complex colors the LPH400 LVX handles all the middle range colors where productivity and speed is a must. Extensive field testing and painter evaluation reports prove that the LPH400 LVX is much faster than the competition and has an ultra smooth application with no technique change. Inlet pressures, spray distance and overlap are the same for the LPH400 LVX as a normal LPH400 LV.
Specifications
| Part No. | 5660 |
|---|---|
| Product Line | IWA |
| MFR Model | 5660 |
| Standard/Approvals | CE Marked | Complies to ATEX Regulations 94/9/EC | JAB QMS Accreditation R005 |
| Application | For basecoat, fine metallic and pearls |
| Manufacturer | Anest Iwata USA |
| Alternate Part Number-1 | LPH400-134LVX |
| UPC | 538995095775 |
| Brand | ANEST IWATA |
| Type | HVLP Gravity Feed |
| Series | LPH400-LVX Extreme |
| Nozzle Size (mm) | 1.3 |
