Product Description
Features & Benefits:
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide
- Overall height: 152" (12' 8")
- 3-Stage Symmetric arms
- Automatic Arm Restraints
- "Padded" Shut-Off Bar
- Rubber Covers on Carriages
- Single Point Lock Release
- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,680 lbs
- 5 Year Structural Warranty/2 Year Hydraulic Warranty
- Freight Prepaid

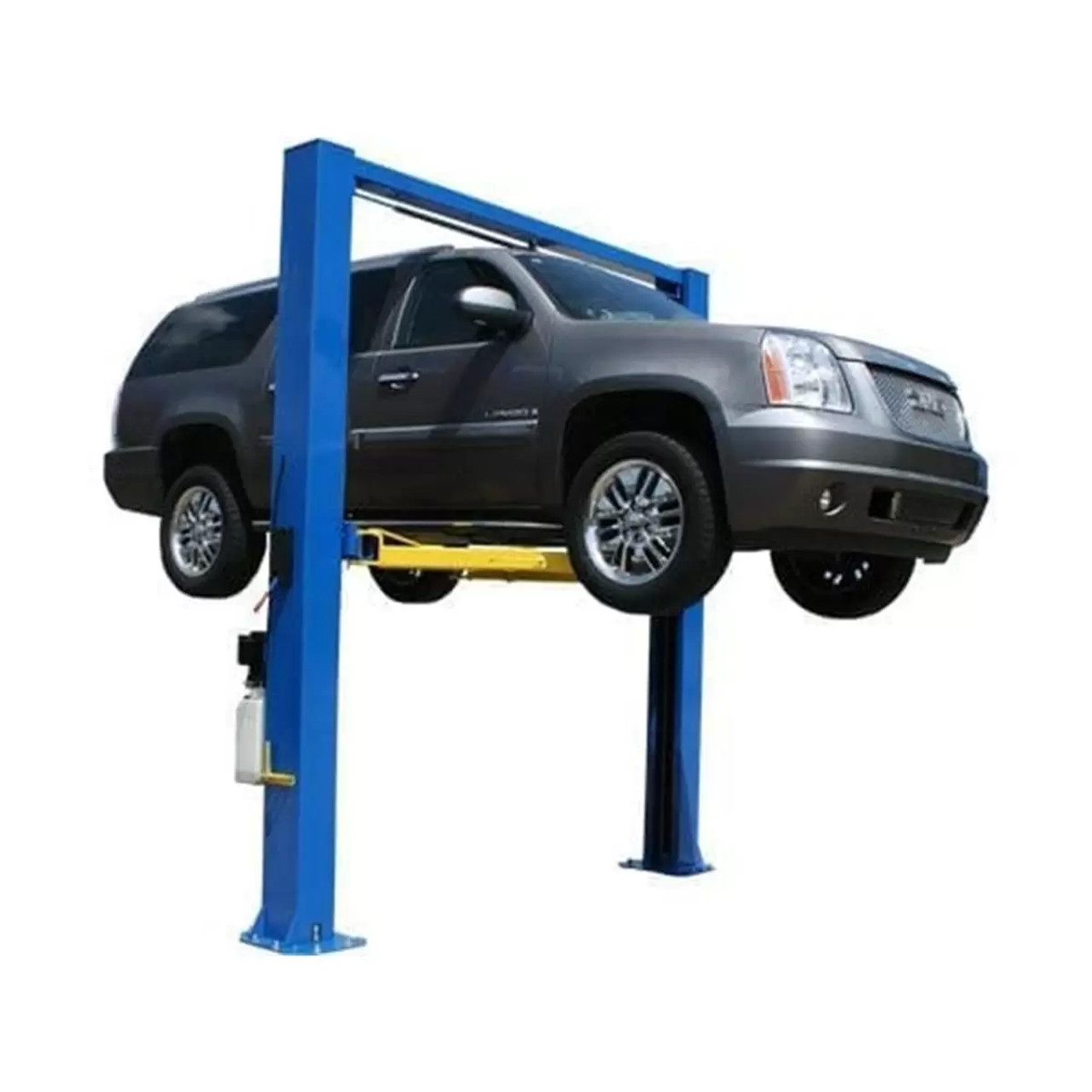

The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the "Mr. Homeowner" who demands the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® OHX10000X was engineered and manufactured to lift vehicles ranging from Smart Cars® to a one ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on all sizes of vehicles and offers a "fudge factor" of about 6 inches when "driving through" to another part of the building or lifting the van or "ladder truck". If you are over 6' 2", the Atlas® OH-10X has longer cylinders which allow the vehicle to be "lifted" about 3 inches higher than many other lifts.
The Atlas® OH-10X incorporates a single piece 12' 7" formed column and an extra long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.
Atlas® ATPK-OHX10000X Specifications:- Capacity: 10000 lbs
- Overall Height: 152" (12' 8")
- Overall Floor Width: 144 3/8" (12' 3/8")
- Outside Columns: 136" (11' 4")
- Inside Column Width: 118 1/4" (9' 10 1/4")
- Drive Thru: 106 7/8"
- Max Lift Height w/o Adapters: 76 3/8"
- Max Lift height w/ Adapters: 85 3/8"
- Minimum Arm Height: 3 1/2"
- Column Size: 9 1/4" x 11"
- Base of Column: 17 1/2" x 19 1/2"
- Column Steel Thickness: 5mm
- Arm Steel Thickness: 6mm
- Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 1680 lbs
- Adapter Heights: 4 Each 1.5", 2", 5"
- Arm Hole/Adapter Peg Size: 1.5"
| Weight | 1665.000000 |
|---|---|
| Brand | ATLAS AUTOMOTIVE EQUIPMENT |
