Product Description
The #480A is a high precision Auto-ranging DMM that can help you troubleshoot all types of electrical problems. Just set to the desired test function and the unit automatically selects the proper test range.Includes test leads, protective holster, instruction manual and two AA batteries.
Features
43 Test Ranges, Auto-Ranging
10 Test Functions
Auto Power-Off, Data Hold
Dual Fuse Protection
10 Meg/Ohm Input Impedance
TEST RANGES:
DC Volts: 0-400mV, 4V, 40V, 400V, 600V
AC Volts: 0-400mV, 4V, 40V, 400V, 600V
DC Current: 0-400uA, 4mA, 40mA, 400mA, 10A
AC Current: 0-400uA, 4mA, 40mA, 400mA, 10A
Resistance: 0-400, 4k, 40k, 400k, 4M, 40M
Frequency: 0-9.999Hz, 99.99Hz, 999.9Hz, 9.999kHz, 99.99kHz, 999.9kHz, 9.999MHz
Capacitance: 0-4nF, 40nF, 400nF, 4uF, 40uF
Duty Cycle: 0.1%-99.9%
Diode: Diode Test
Continuity Test: Audible Beep

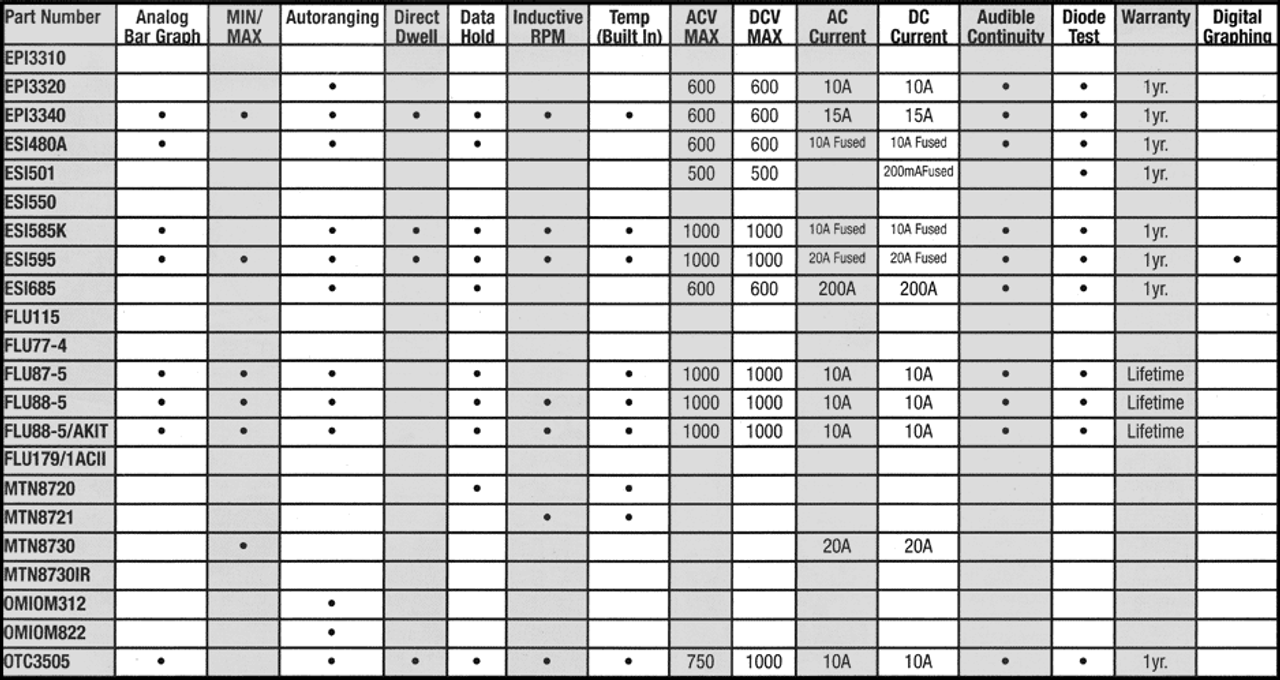

NOTE: Click image for multi-meter comparison chart.
Features
43 Test Ranges, Auto-Ranging
10 Test Functions
Auto Power-Off, Data Hold
Dual Fuse Protection
10 Meg/Ohm Input Impedance
TEST RANGES:
DC Volts: 0-400mV, 4V, 40V, 400V, 600V
AC Volts: 0-400mV, 4V, 40V, 400V, 600V
DC Current: 0-400uA, 4mA, 40mA, 400mA, 10A
AC Current: 0-400uA, 4mA, 40mA, 400mA, 10A
Resistance: 0-400, 4k, 40k, 400k, 4M, 40M
Frequency: 0-9.999Hz, 99.99Hz, 999.9Hz, 9.999kHz, 99.99kHz, 999.9kHz, 9.999MHz
Capacitance: 0-4nF, 40nF, 400nF, 4uF, 40uF
Duty Cycle: 0.1%-99.9%
Diode: Diode Test
Continuity Test: Audible Beep
NOTE: Click image for multi-meter comparison chart.
43 Test Ranges, Auto-Ranging • Removable Safety Leads and Jacks 10 Test Functions. Powered by two AA batteries. Auto Power-Off. 10 Meg/Ohm Input Impedance. Dual Fuse Protection. Data Hold. Relative Chanqe Function. Manual Ranqe Select.
