Product Description
Overview
This portable box and pan brake is designed for precise sheet metal bending with a 24‑inch width capacity. Featuring 10 segmented modules (1", 2", 3", 4") and 5 adjustable fingers, it allows intricate bends for channels, truck beds, mudguards, and more. Built from Q236 heavy‑duty steel, it ensures durability and long‑term performance.
Key Features
-
Bending Width: 24" (610 mm)
-
Material Capacity: 20‑gauge low carbon steel, 14‑gauge aluminum
-

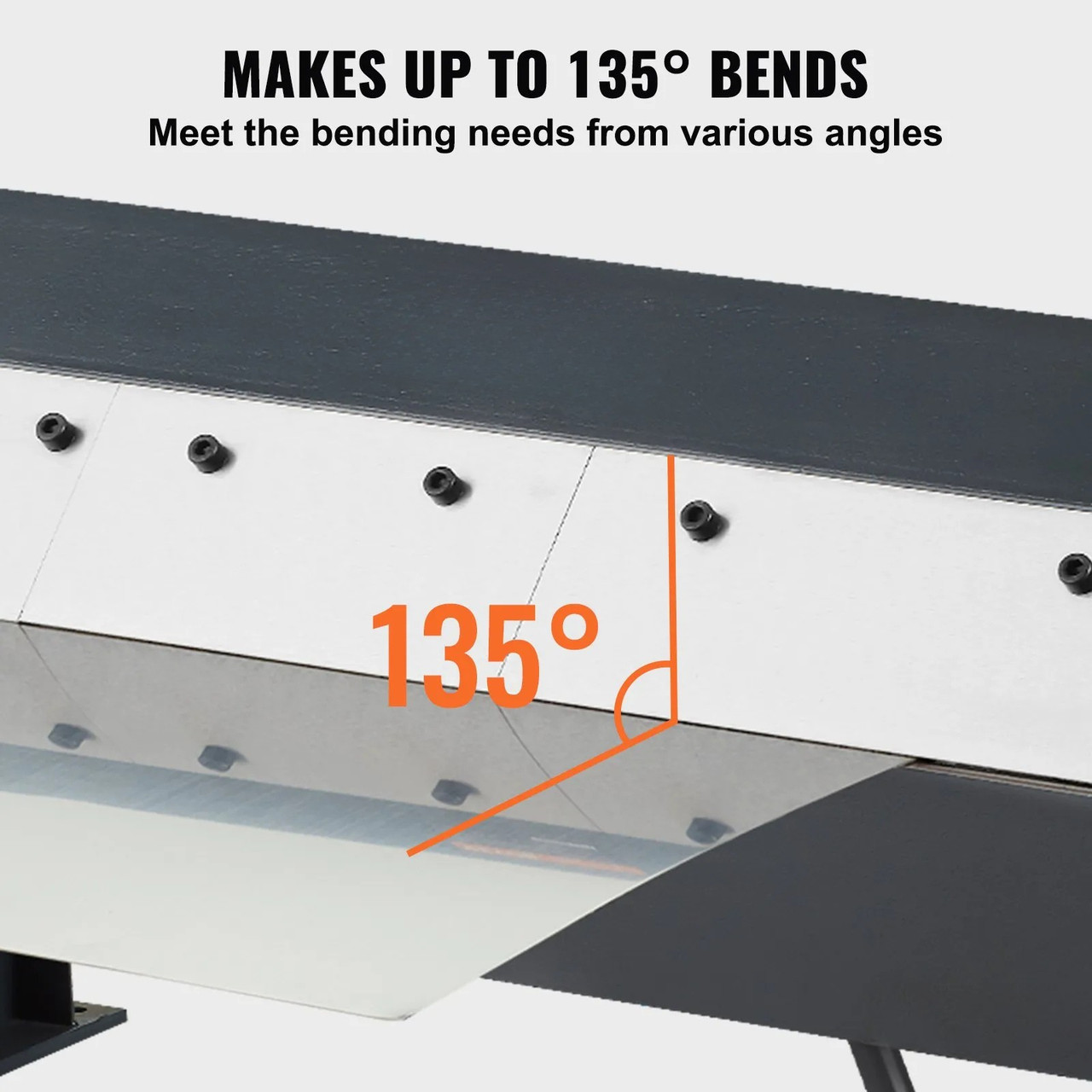

Angle Range: 0–135° adjustable
-

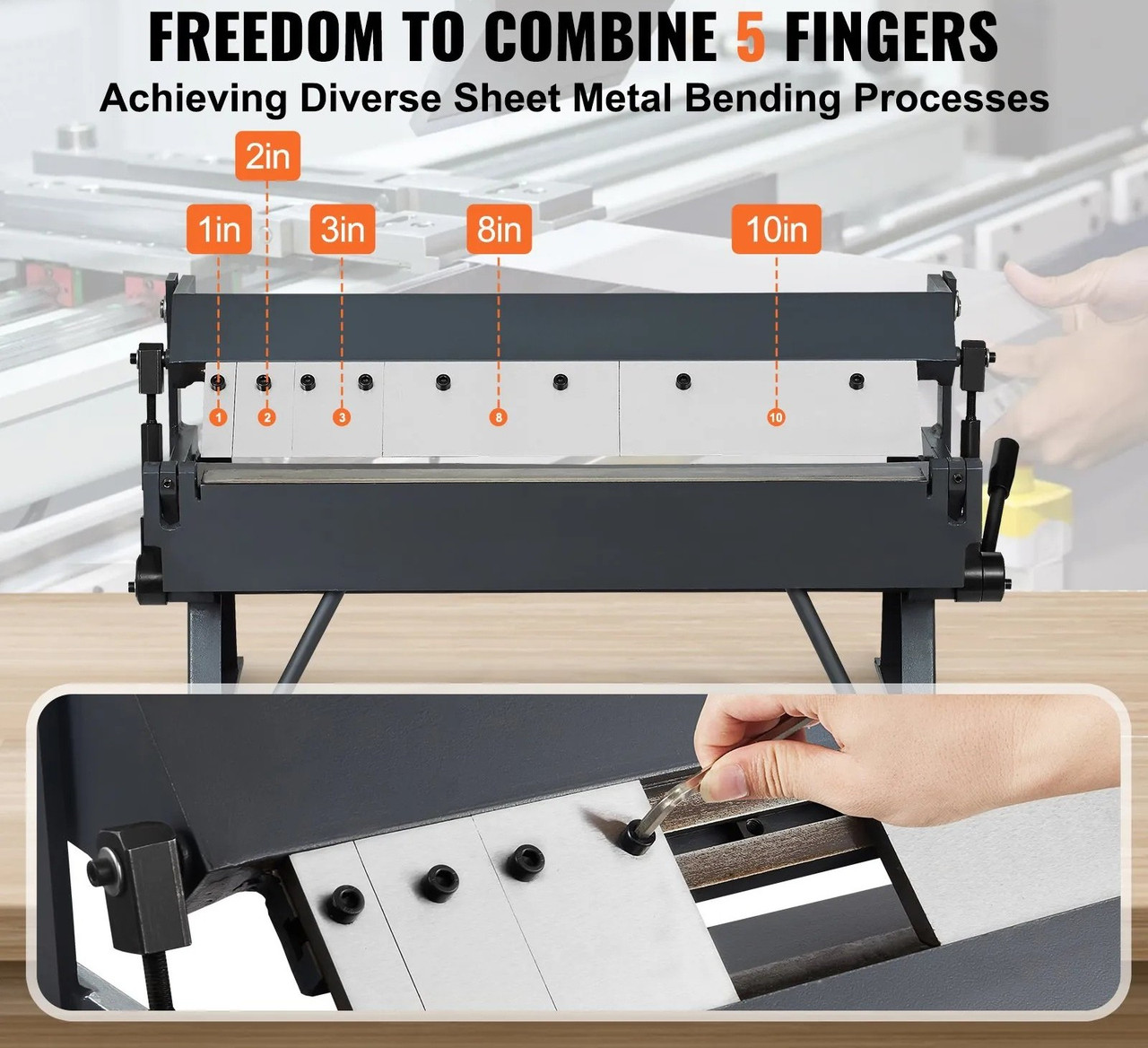

Segmented Modules: 10 pieces (1" ×2, 2" ×4, 3" ×2, 4" ×2)
-
Construction: Q236 heavy‑duty steel, 0.39" thick, hardness up to 21 HRC
-
Portable Design: Compact, bench‑mountable, screw‑in installation holes
-
Applications: Stainless steel, copper, aluminum, iron, galvanized sheets
Applications
-
Reinforcing floor channels
-
Corrugated pickup truck beds
-
Truck headboards
-
Metal mudguards
-
Workshop & factory sheet metal bending
Technical Specs
-
Bending Width: 24" (610 mm)
-
Angle Range: 0–135°
-
Material Capacity: 20‑gauge steel, 14‑gauge aluminum
-
Module Thickness: 0.39"
-
Hardness: 21 HRC
-
Net Weight: ~55 lbs (25 kg)
-
Exterior: Heavy‑duty steel construction
-
Model Number: Box & Pan Brake (24")
Warranty
1‑year manufacturer warranty covering defects in materials and workmanship.
End‑of‑Page Summary
The 24‑inch Box and Pan Brake offers segmented modules, adjustable fingers, and 0–135° bending flexibility. Built from heavy‑duty steel, it handles 20‑gauge steel and 14‑gauge aluminum, making it ideal for workshops, factories, and construction sites.
