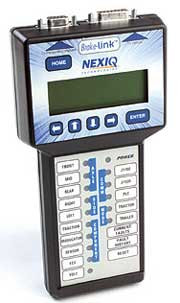

__52470.1663956617.jpg?c=2 "Brake-Link Hand-Held Diagnostic Trailer Brake Tool, MPS116021-Discontinue-Please see MPS798021ISN")
__52470.1663956617.jpg?c=2 "Brake-Link Hand-Held Diagnostic Trailer Brake Tool, MPS116021-Discontinue-Please see MPS798021ISN")
Product Description
Features and Benefits
Reads & Clears Fault codes - simplifies and expedites the brake troubleshooting process
Doubles as an interface between a PC and the tractor/trailer for OEM diagnostic software
J560 adapter included (7 way)
Diagnose trailer without tractor connected
6 and 9 pin Deutsch adapters for tractor connection
INCLUDES:
BRAKE-LINK Tool Case
421001 J 560 Cable
501003A Data Cable
404024 6 Pin Deutsch
405028 9 Pin Deutsch
Computer interface cable for updates
Manual
BRAKE-LINK ABS COVERAGE
Bendix EC-17, EC-30 and EC-30T
Bendix Tractor
Meritor WABCO Easy-Stop and Enhanced Easy-Stop
WABCO Tractor
Wabash National MBS-1P and MBS-2
Eaton GEN4 and GEN5
Haldex PLC, PLC Plus, and PLC Select
BENEFITS CONVENIENT TESTING OF THE FOLLOWING :
Trailer ABS system with PLC communications
Auto detects the OEMs ECU system configuration
View and clear current and historic faults
Actuate modulators and valves
Cycling of the brake retarder relays
Testing of battery voltage
Wheel sensor testing and traction disabling
Retrieval of ECU information
Testing of the trailers ABS “Test Warning Lamp”
Read trailer odometer/trip distance
FEATURES:
NEXIQ Technologies has addressed your needs for a rugged, low cost, easy to use brake and PLC (Power Line Carrier) scan tool with the Brake-Link. ™ The Brake-Link™ connects to tractors and trailers utilizing the SAE J1587 communication protocol over J1708 buses enabling you to access the electronic ABS system and obtain the diagnostic trouble codes. NEXIQ also prepares you for the future by enabling the Brake-Link™ to interface with the new trailer PLC (Power Line Carrier) bus utilizing the SAE J2497 protocol. As new brake systems become available, new software can be downloaded to the Brake-Link™ by purchasing an update kit.
No more working under the trailer watching for blink codes
Complete standalone brake tool or as a PC interface
The Brake-Link is convenient, light weight, and durable
ADDITIONAL FEATURES
Low cost ABS brake scan tool
Easy to use, menu driven
Sealed membrane key pad
Rugged and shock resistant
Backlit LCD screen
PC link for RP1210A compliant applications
Requires no batteries; powered by the tractor/trailer
Includes all cables and connectors required
J1939 hardware ready
BENEFITS
Simplifies and expedites the brake troubleshooting process
One tool for all trailer ABS systems & PLC communication
Doubles as an interface between a PC and the tractor/trailer for OEM diagnostic software
SUPERSEDES MPS112221
