Product Description

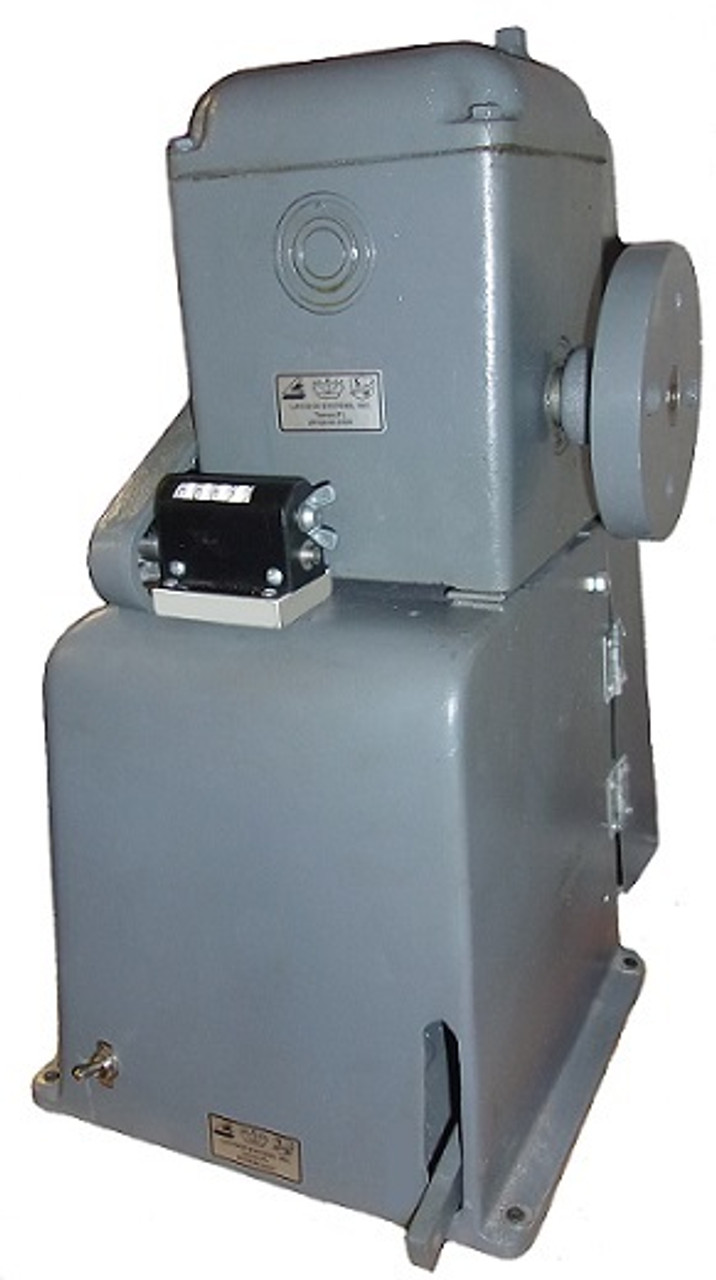

Coil Winder Machine 1/3 H.P. 230V, 50 / 60 Hertz Motor, Single Phase, Heavy Duty Counter
This compact, low cost coil winder is designed with a 13 1/2" center height to accommodate Crown coil winding heads and can produce field, mush, armature, solenoid, electromagnet and other small coils. It offers unexcelled performance for smaller shops and fits well into larger shops as a second utility winder.
It is engineered for smooth operation with constant torque and positive stopping for precise control over every job. Sealed ball bearings on all shafts guarantee true running without vibration or chatter and a lifetime of maintenance-free performance. This unit has the versatility to handle practically any job coming into the shop giving you the ability to offer a complete winding service package. Easy to read 5 digit counter in clear view to reach required turns.
Clutch and Brake: Controlled in one operation; engaging the clutch releases the brake. Releasing the clutch automatically engages the brake.
Speed Adjustments: Simple belt adjustments on three speed pulleys will vary speed to low, medium, or high.
Face Plate Shaft: Tapped to take standard 1/2" - 13 bolt for quick set-up in winding solenoid, electromagnet, and other small wound coils.
Speed: Low: 108 rpm, Medium: 220 rpm; High: 440 rpm.
Torque: At Low Speed, 28 ft.lbs.; At Medium Speed, 15 ft.lbs.; at high Speed, 7 ft.lbs.
