Product Description
Overview

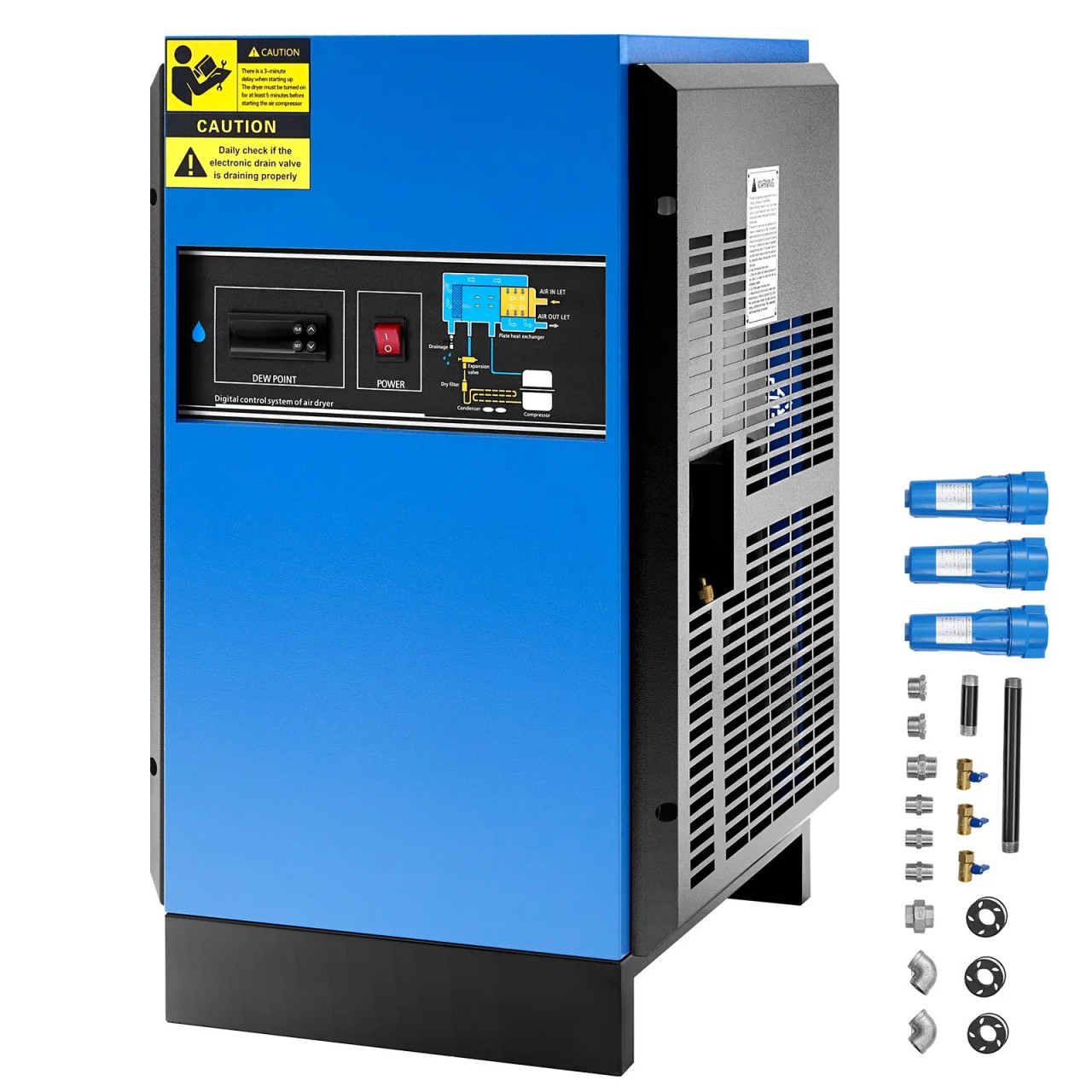

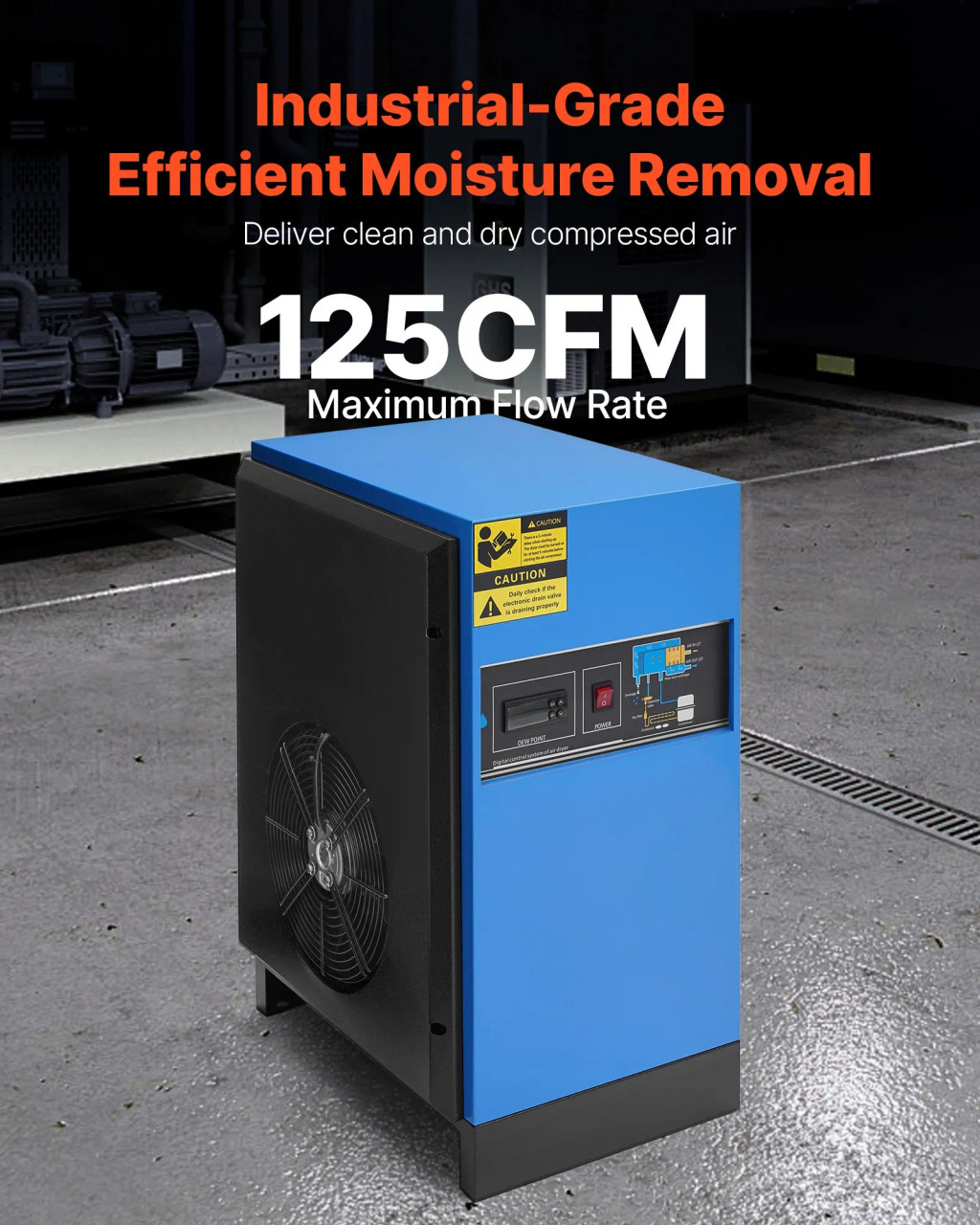

This industrial refrigerated air dryer delivers 125 CFM flow rate and efficiently removes moisture, oil, and impurities from compressed air. Compatible with 20HP, 25HP, and 30HP compressors, it ensures clean, dry air for industrial applications. Equipped with a color screen control panel and automatic electronic drainage, it provides reliable, energy‑saving operation.
Key Features
-
Voltage: 110–120V, 60Hz
-
Flow Rate: 125 CFM
-
Working Pressure: 87–232 PSI
-
Dew Point: 35.6–50 °F
-
Inlet Air Temperature: 59–149 °F
-
Refrigerant: R410a
-
Connection Size: RC 1"
-
Compatible Compressors: 20HP, 25HP, 30HP
-

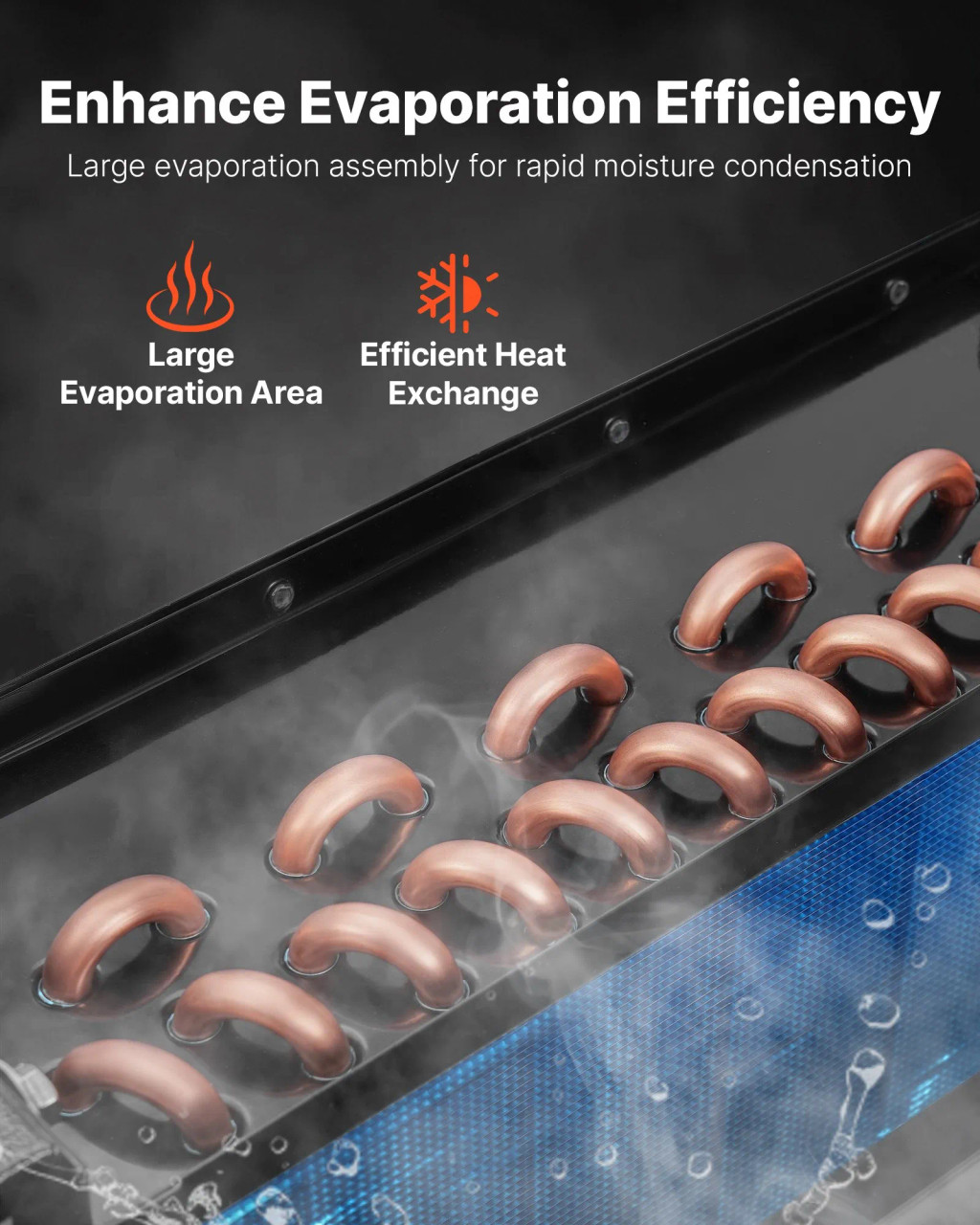

Refrigeration compressor + large evaporator for efficient heat exchange
-

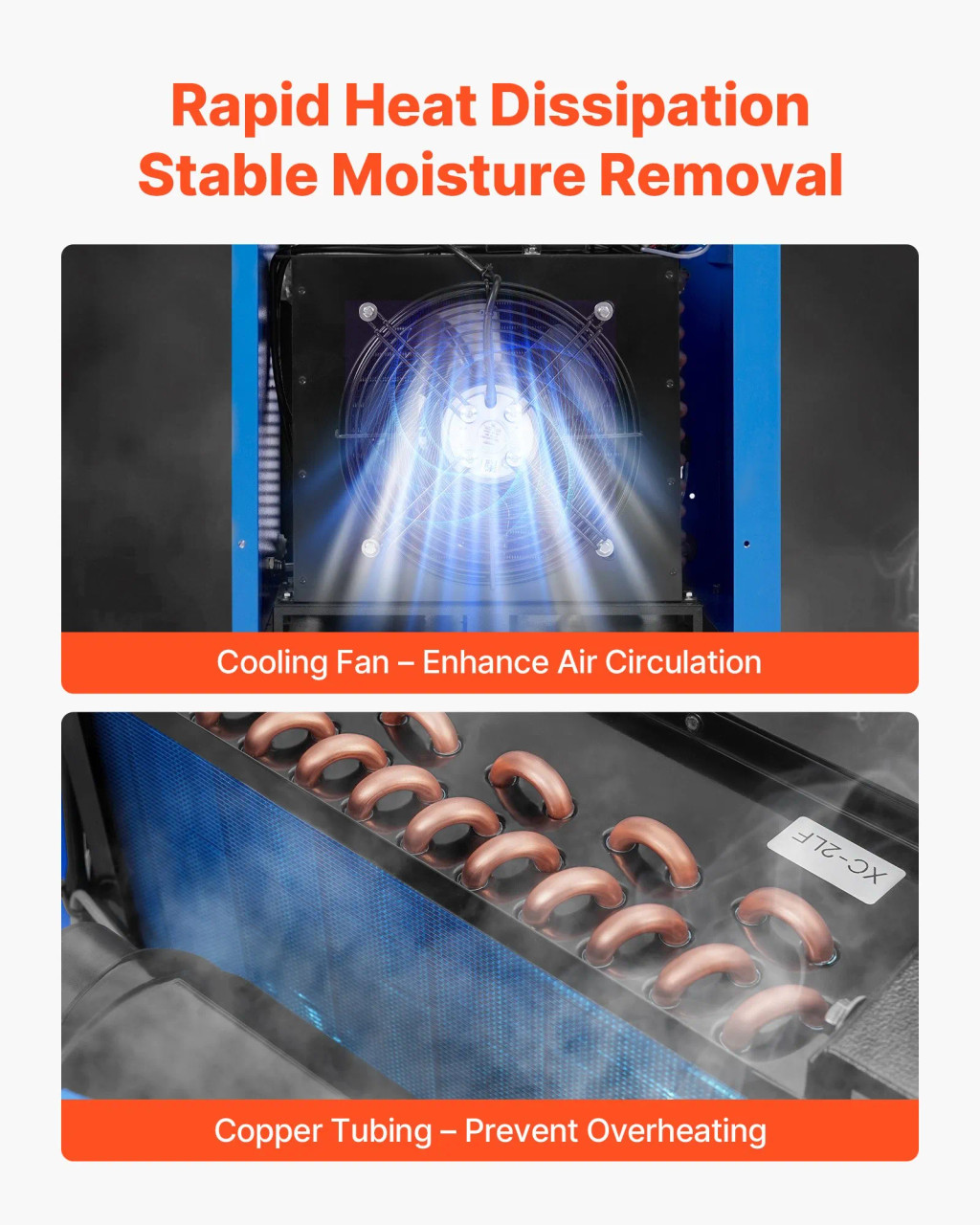

High‑efficiency cooling fan + copper tubing for rapid heat dissipation
-
Color screen control panel for real‑time monitoring
-
Automatic electronic drain valve for moisture removal
Applications
-
Industrial compressed air systems
-
Manufacturing plants
-
Automotive workshops
-
Textile factories
-
Food processing facilities

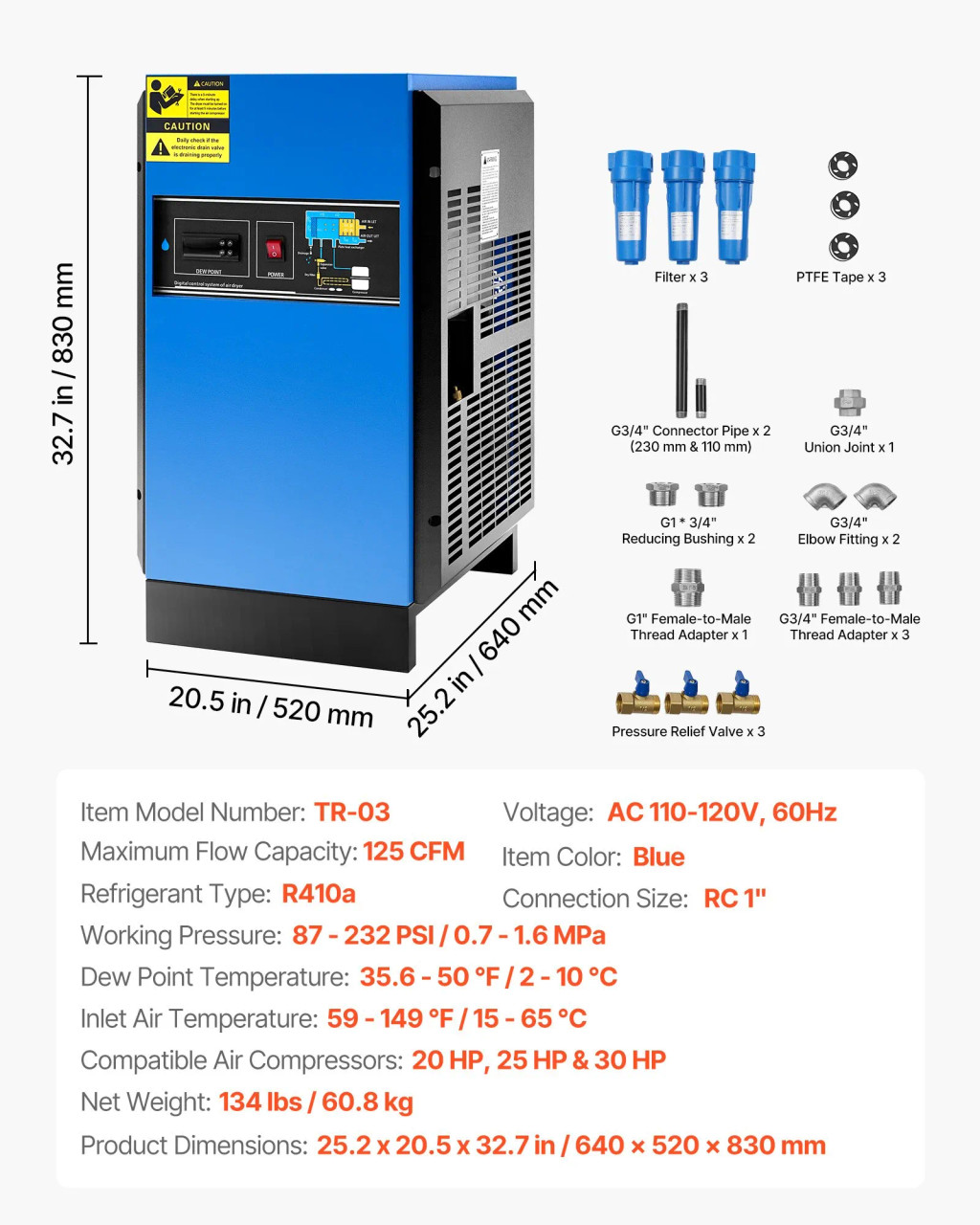

Technical Specs
-
Voltage: 110–120V, 60Hz
-
Flow Rate: 125 CFM
-
Pressure Range: 87–232 PSI
-
Dew Point: 35.6–50 °F
-
Inlet Air Temp: 59–149 °F
-
Refrigerant: R410a
-
Connection Size: RC 1"
-
Net Weight: ~95 lbs (43kg)
-
Exterior: Steel body with cooling fan
-
Model Number: Refrigerated Air Dryer (125 CFM, 110–120V)
Warranty
1‑year manufacturer warranty covering defects in materials and workmanship.
End‑of‑Page Summary
The Refrigerated Air Dryer (125 CFM) is a high‑performance moisture removal system for 20HP–30HP compressors. With automatic drainage, color screen control, and R410a refrigerant, it ensures clean, dry compressed air for industrial applications.
