Product Description

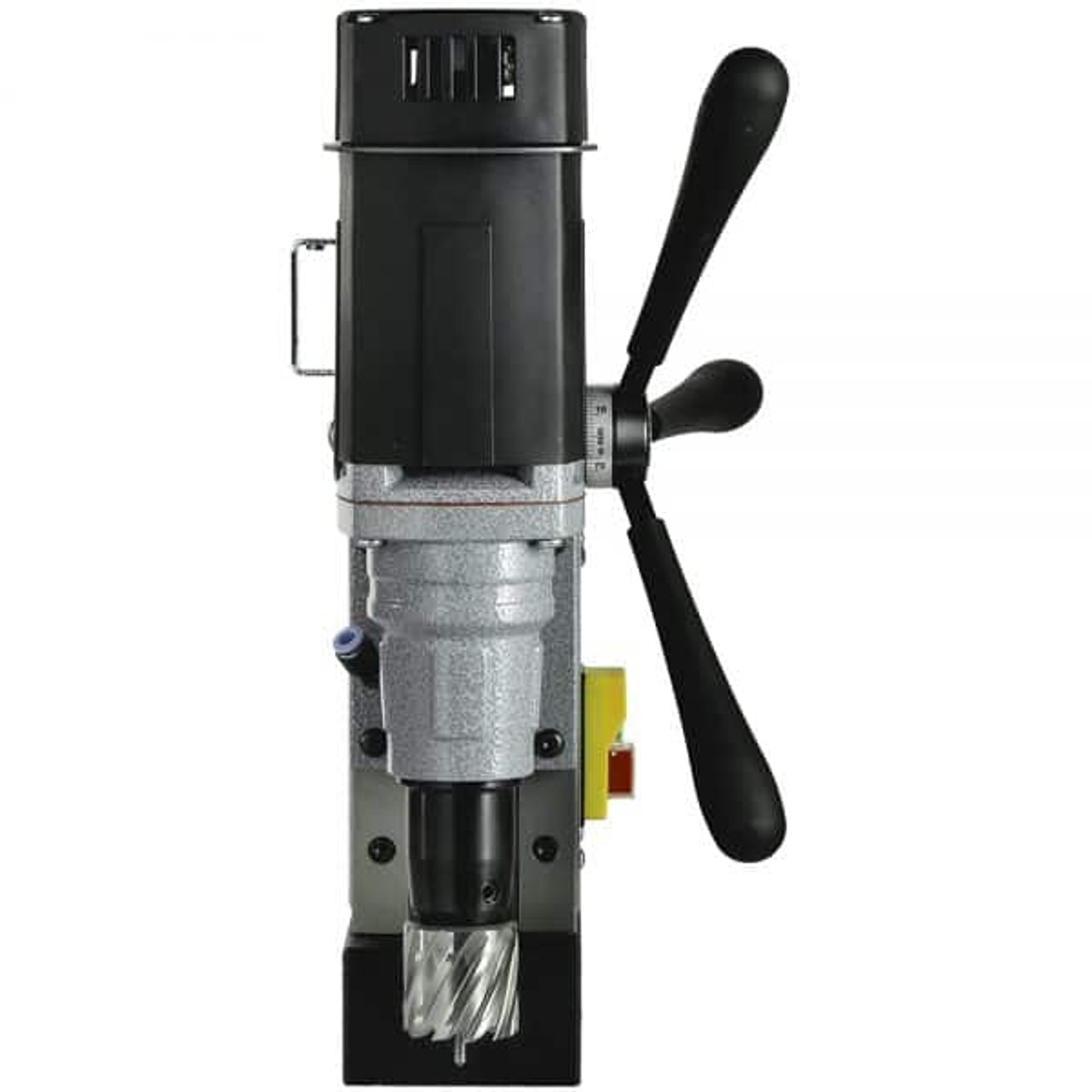

The Euroboor ECO.40S+/M magnetic core drilling machine with integrated motor cable and high power magnet, drills up to ø 1 9/16” (40 mm) and fits cutters up to 4 5/16” (110 mm) in length. Our portable ECO.40S+/M magnetic core drilling machine benefits from an oil lubricated gearbox, bigger and stronger magnet but also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
| Annular cutting | Ø 7/16" - 1 9/16" |
| Twist drilling | Ø 1/16" - 5/8" |
| Countersinking | Ø 3/8" - 1 3/4" |
| Length | 10 3/8" |
| Width | 7 1/16" |
| Height | 14 7/16" - 17 5/8" |
| Stroke | 5 11/16" |
| Weight | 26.9 lbs* |
| Magnet (l x w x h) | 6 5/8" x 3 5/16" x 1 15/16" |
| Magnetic force | 4079 lbs |
| Motor power | 10.5 A |
| Total power | 10.9 A |
| Speed (no load) | 600 rpm |
| Speed (load 10.5 A) | 380 rpm |
| Spindle (Weldon) | 3/4" |
| Voltage | 110 - 120 V / 60 Hz |
