Product Description

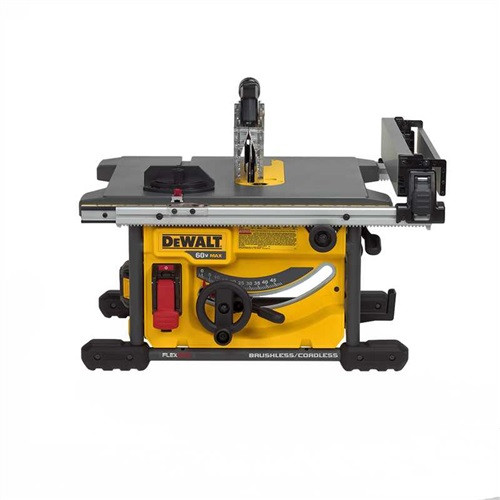

The FLEXVOLT 60V MAX* 8 1/4 in. table saw is maximized for accuracy, capacity and runtime. The brushless motor delivers the power to cut all co mm.on materials, the rack & pinion fence allows for fast, easy adjustments and provides the capacity to rip 4x8 sheet goods. The DCS7485T1 comes with one FLEXVOLT 20V/60V MAX* battery and fast charger.
FEATURES & SPECS
FEATURES
- Rack and pinnion telescoping fence rails make fence adjustments smooth and accurate
- 24 in. of rip capacity for ripping 4x8 plywood or OSB sheets
- Run off of FLEXVOLT 20V/60V MAX* battery system for maximum portability
- Site-Pro Modular Guarding System allows for tool free adjustment of the guarding
- Power-Loss Reset prevents accidental re-starts following a power disruption when the switch is left in the in.on in. position
- Metal roll cage base offer greater durability than plastic bases
- On board storage for Guard, Fence, wrenches and miter gauge
- Table coating reduces friction for smoother cutting
SPECIFICATIONS
- ARBOR SIZE 5/8" IN
- BLADE DIAMETER 8-1/4"
- DEPTH OF CUT AT 45° 1 3/4" IN
- DEPTH OF CUT AT 90° 2 1/2" IN
- DUST PORT DIAMETER 2 1/2" IN
- FOR WOOD CUTTING TRUE
- MAX RIP TO LEFT OF BLADE 12" IN
- MAX RIP TO RIGHT OF BLADE 24" IN
- MAX WIDTH OF DADO N/A IN
- NO LOAD SPEED 5800 RPM
- POWER TOOL TYPE CORDLESS
- SYSTEM 60V MAX*
- TOOL HEIGHT 12.8 IN
- TOOL LENGTH 22.8 IN
- TOOL WEIGHT 48 LBS
INCLUDES
- (1) DCS7485 60V MAX* Table Saw
- (1) Carbide Blade
- (1) Push Stick
- (1) Blade Guard
- (1) Rip Fence
- (1) Non-Thru Cut Riving Knife
- (1) FLEXVOLT® 20V/60V MAX* Battery
- (1) Fast Charger
- (2) Blade Wrenches
- (1) Miter Gauge
