Product Description

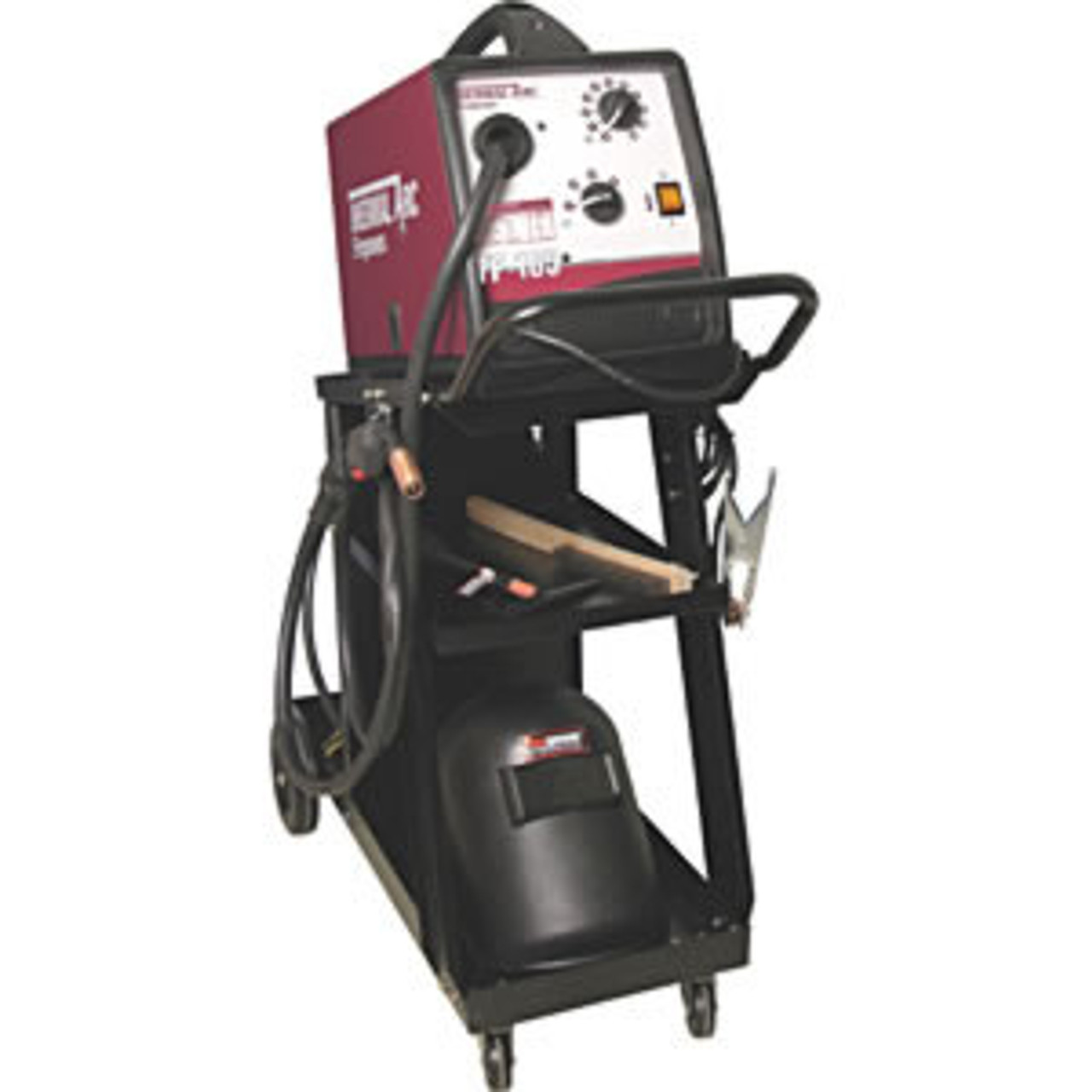

The new portable FP-135 and FP-165 dual purpose wire welders deliver very versatile and effective welding performance. With its simple operation and key set up chart even the novice can achieve high quality, professional results.
This system features a quick change internal polarity adjustment to change between MIG (GMAW) and flux cored (FCAW) welding. Designed to operate from a standard household outlet. The ready to weld systems come complete with Tweco? WeldSkill? gun, return cable & clamp, input power cord & plug, spool of flux cored wire and an operating manual.
Applications Include:
• Home DIY Hobbyist
• Farm / Ranch
• Maintenance and repairs
• General light duty fabrication & repair
• Number of voltage settings 4
• Wire diameter range .023" - .035" (0.6 - 0.9mm)
• Dimensions (HxWxD) 12.75" x 9.75" x 17.35" (375x250x440mm)
• Lead cord length 6 ft. (1.8m)
• Rated kVA @ 90 Amps 2.8 kVA
Includes:
• MIG Welder • MIG Welder Cart
• Chipping Hammer • Wire Brush
• Maximum output 165 Amp
• Duty cycle @ 104§F 20% @ 130 Amp at 30V
• Current range 20-165 Amp
• Maximum plate thickness 3/8" (9mm)
• Weight 60 lbs. (27.3kg)
• Primary voltage 230 Volt
• Supply plug NEMA 6-50P
*FREE THD-4100-1002 USA Eagle Graphics Auto-Darkening Welding Helmet with purchase. Available while supplies.
This system features a quick change internal polarity adjustment to change between MIG (GMAW) and flux cored (FCAW) welding. Designed to operate from a standard household outlet. The ready to weld systems come complete with Tweco? WeldSkill? gun, return cable & clamp, input power cord & plug, spool of flux cored wire and an operating manual.
Applications Include:
• Home DIY Hobbyist
• Farm / Ranch
• Maintenance and repairs
• General light duty fabrication & repair
• Number of voltage settings 4
• Wire diameter range .023" - .035" (0.6 - 0.9mm)
• Dimensions (HxWxD) 12.75" x 9.75" x 17.35" (375x250x440mm)
• Lead cord length 6 ft. (1.8m)
• Rated kVA @ 90 Amps 2.8 kVA
Includes:
• MIG Welder • MIG Welder Cart
• Chipping Hammer • Wire Brush
• Maximum output 165 Amp
• Duty cycle @ 104§F 20% @ 130 Amp at 30V
• Current range 20-165 Amp
• Maximum plate thickness 3/8" (9mm)
• Weight 60 lbs. (27.3kg)
• Primary voltage 230 Volt
• Supply plug NEMA 6-50P
*FREE THD-4100-1002 USA Eagle Graphics Auto-Darkening Welding Helmet with purchase. Available while supplies.
• MIG Welder • MIG Welder Cart• Chipping Hammer • Wire Brush• Maximum output 165 Amp• Duty cycle @ 104§F 20% @ 130 Amp at 30V• Current range 20-165 Amp• Maximum plate thickness 3/8" (9mm)
