Product Description

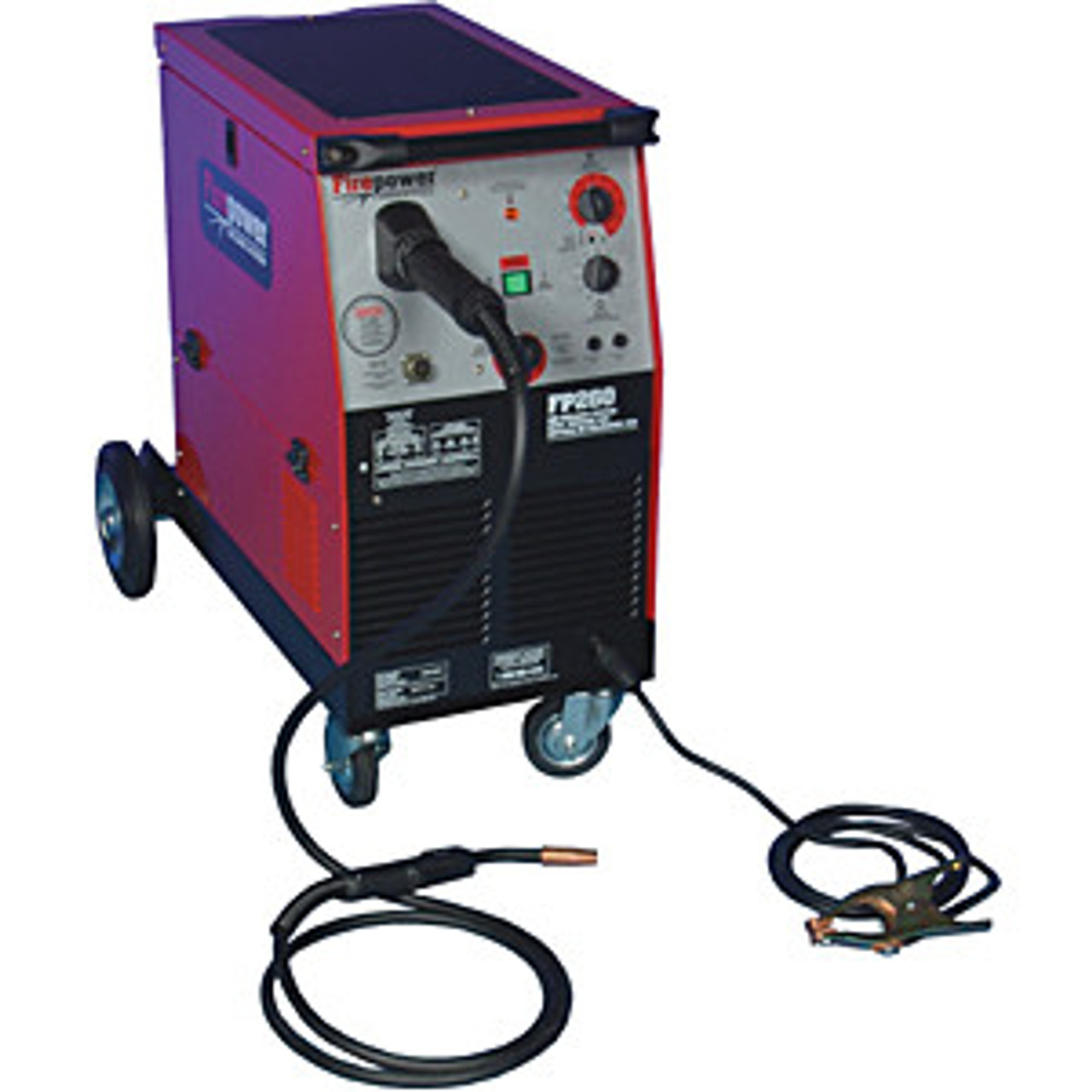

The FP-260 dual purpose wire welder delivers a very versatile and effective welding performance. This system features a quick change internal polarity adjustment to change between MIG (GMAW) and flux cored (FCAW) welding. Designed to operate from a standard 230V outlet and delivers a high maximum output of 270 Amps. The ready to weld system comes complete with Tweco gun, return cable & clamp, input power cord & plug and an operating manual. This system offers industrial grade performance at an affordable price.
• Primary voltage: 230 Volt
• Lead cord length: 10 ft. (3m)
• Rated kVA @ 190 Amps: 11.2 kVA
• Max. output: 270 Amp
• Duty cycle @ 104•F: 60% @ 200 Amp at 30V
• Current range: 20-270 Amp
• Number of voltage settings: 7
• Maximum plate thickness: 5/8" (15mm)
• Wire diameter range: .023" - .045" (0.6 - 1.2mm)
• Dimensions: (HxWxD) 31" x 19.5" x 33" (785x488x840mm)
• Weight: 200 lbs. (91kg)
• Primary voltage: 230 Volt
• Lead cord length: 10 ft. (3m)
• Rated kVA @ 190 Amps: 11.2 kVA
• Max. output: 270 Amp
• Duty cycle @ 104•F: 60% @ 200 Amp at 30V
• Current range: 20-270 Amp
• Number of voltage settings: 7
• Maximum plate thickness: 5/8" (15mm)
• Wire diameter range: .023" - .045" (0.6 - 1.2mm)
• Dimensions: (HxWxD) 31" x 19.5" x 33" (785x488x840mm)
• Weight: 200 lbs. (91kg)
Maximum plate thickness: 5/8" (15mm)Max. output: 270 AmpPrimary voltage: 230 Volt
This item is discontinued and has been replaced by VCT-1444-0872. Upon ordering we will ship the VCT-1444-0872
