Product Description

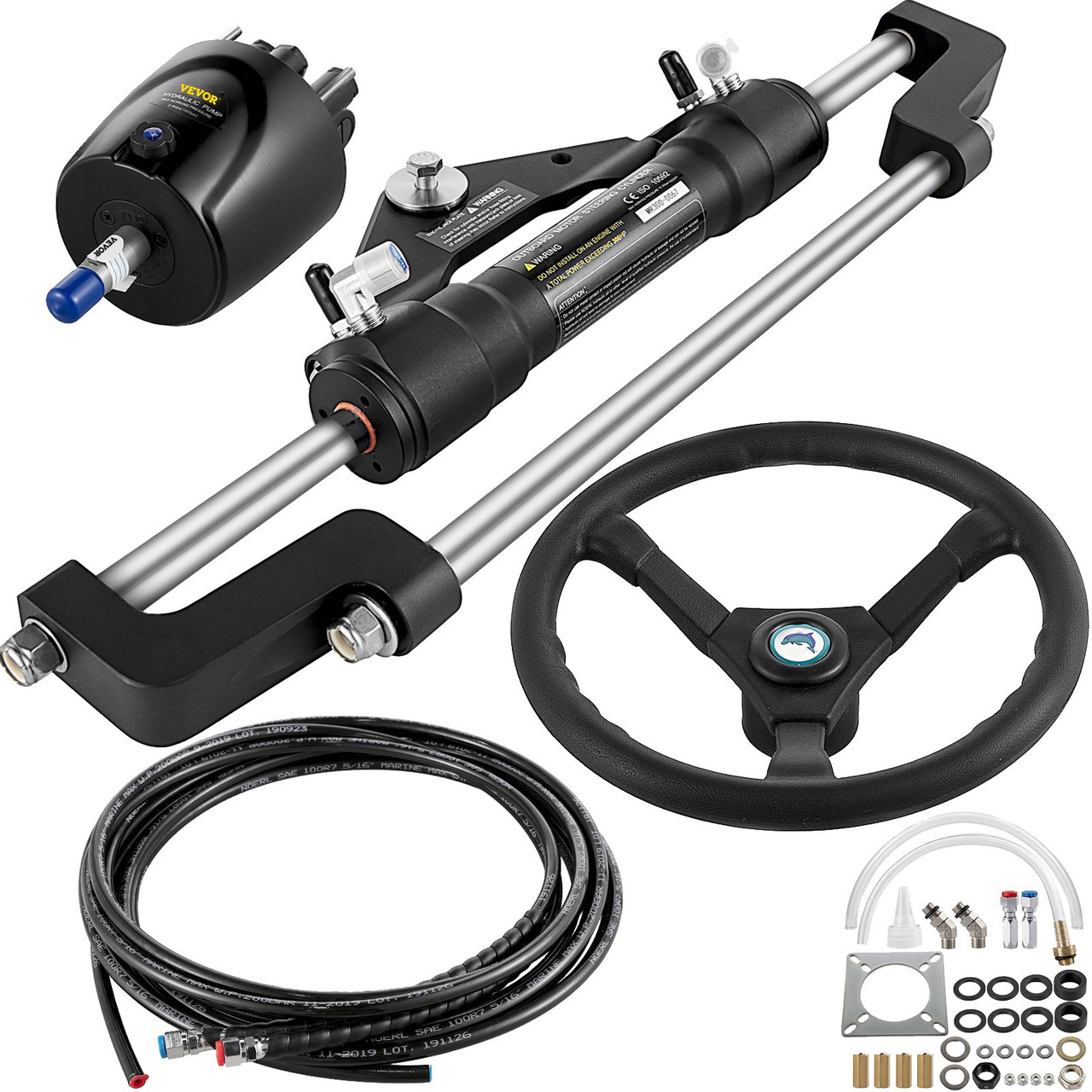

- Hydraulic Outboard Boat Steering Kit: The hydraulic outboard boat steering kit includes a steering cylinder, a steering pump, a 13.5" steering wheel, and a 14ft hose kit. It is a perfect replacement for your aging or broken equipment and becomes a good companion for your sailing trips.
- Aluminum Alloy Steering Cylinder: Output force: 468 KGF. Steering cylinders come with an upgraded sealing system for maximum protection from saltwater and compression set. Positionable stainless steel O-ring (ORB) fittings for easy hose routing. And the robust barrel is made of aluminum alloy, which is wear-resistant, corrosion-resistant, and does not fear seawater erosion.
- Max. 300HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The hydraulic pump has a replaceable shaft seal, built-in locking valve, relief valve, ORB fittings, and airbag. Allow you to use the equipment securely and conveniently.
- Nylon Hose & Steering Wheel: The 13.5" steering wheel is made of aluminum alloy and high-quality plastic. The 14" nylon hose with quick-fit 1/4 fitting is easy to install. And the hose can be cut to the desired length.
- Great Partner for Your Boat: Works for boats up to 60 MPH with single outboards up to 300 HP. Outboard-powered boats like the center console, offshore fishing, bass boats, flat boats, and many more.
Specifications
- Model: HK6314A-3 Hydraulic Outboard Boat Steering Kit
- MPN: HK6400A-3, HO5114
- Replaces: Teleflex Marine HK6400A-3, HO5114
- Part Number: HK6314A-3
- Output Force: 468(KGF)
- Application: Up to 300HP
- Max Pressure: 6.9 Mpa/1000psi
- Hose Length: 14 FT
- Steering Wheel Dia.: 13.5"
- Material: Aluminum Alloy + PVC
