Product Description

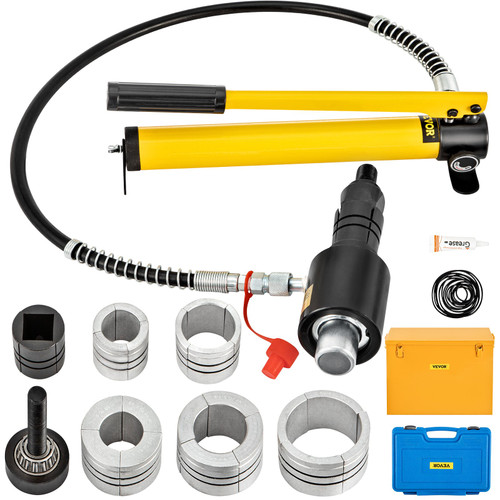

- Wide Expanding Range: The hydraulic exhaust pipe expander provides various collets for a broad expansion range from 1-5/8" to 4-1/4". Includes: mild steel expander (1 5/8" - 1 7/8" collet, 2" - 2 1/2" chuck), and aluminum alloy expander (2 3/8"- 2 3/4" Collet, 2 3/4" - 3 1/8" collet, 3 1/8" - 3 1/2" collet, 3 1/2" - 3 7/8" collet, 3 7/8" - 4 1/4" collet).

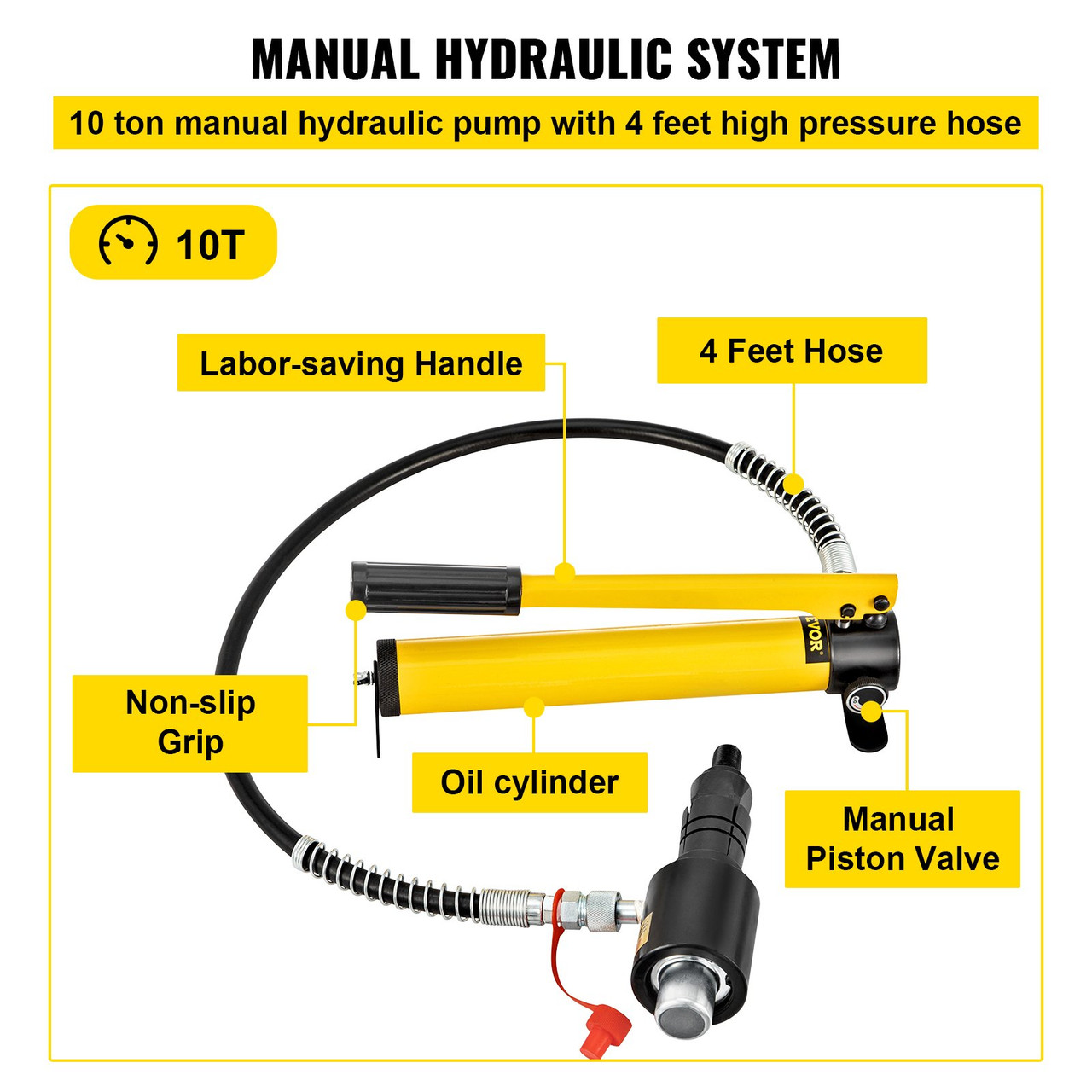

- Labor-saving Hydraulic System: This muffler pipe expander makes pipes expand by using a manual hydraulic mechanism. The hydraulic tool is designed with exquisite details, such as a 4 feet high-pressure hose and no-leakage oil cylinder. Pressure: 10 tons.

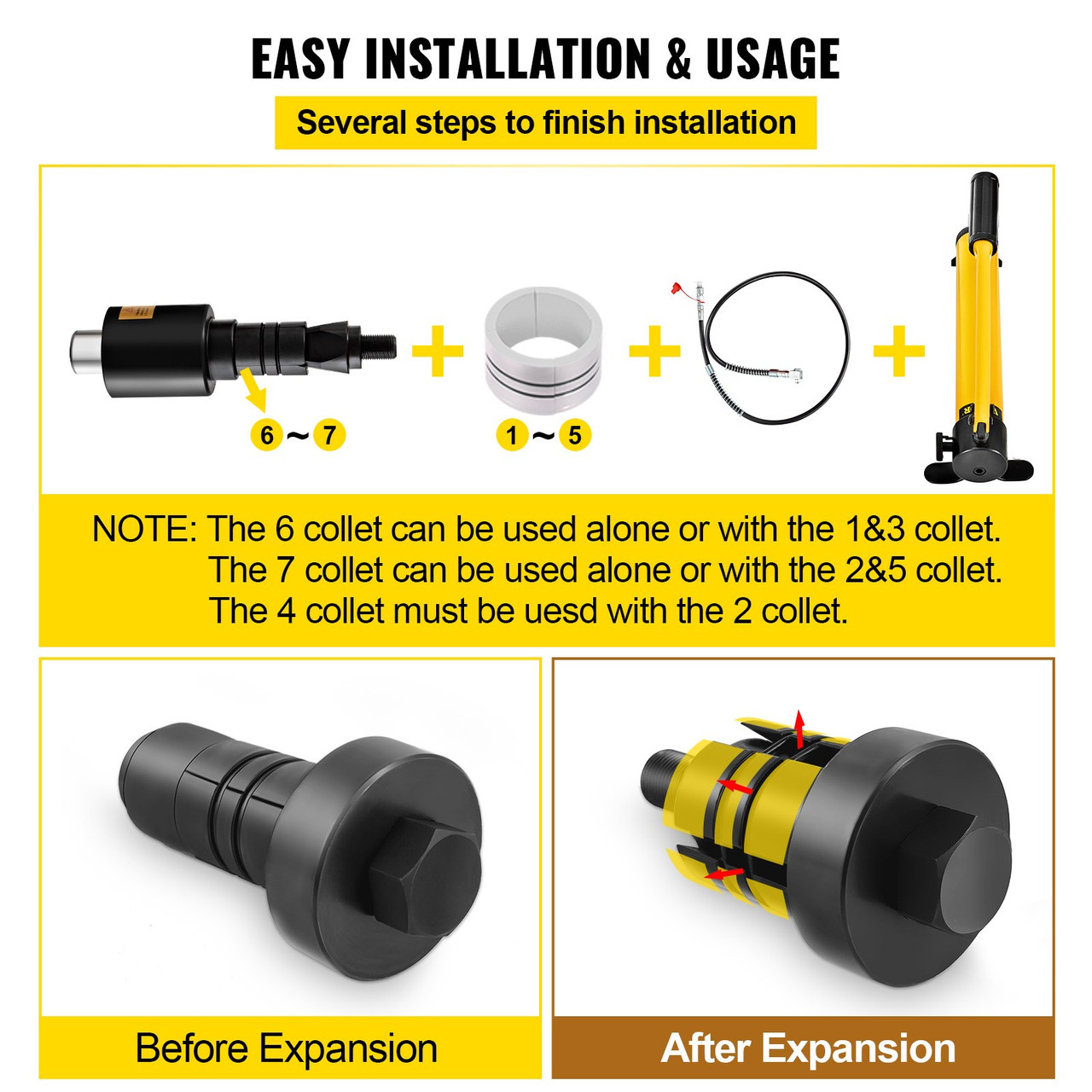

- Easy to Install & Operate: Different sizes of collet need to be matched with specified collets. Details are provided in the picture. You need to assemble the expanding part with a hydraulic mechanism and insert it into the pipe.

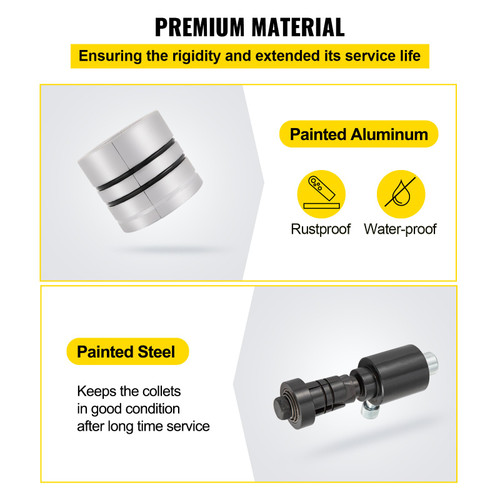

- Heavy-duty Construction: All collets are made of Aluminum alloy, ensuring rugged rigidity over an extended service life. The coated surface of the exhaust pipe expander kit provides rust resistance.

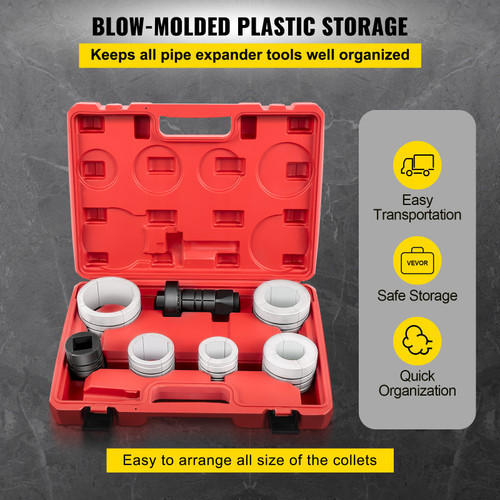

- Convenient Storage: Our exhaust pipe spreader dies are packaged in a plastic box. The box with a hydraulic pump is stored in an iron box, thus providing double protection. The toolbox is portable and easy to carry.
Specifications
- Model: 78835
- Length of Hose: 4 Feet
- Pressure: 10T
- Pipe Size: 1-5/8" to 4-1/4"
- Expander Size: 1 5/8" - 1 7/8", 2" - 2 1/2", 2 3/8"- 2 3/4", 2 3/4" - 3 1/8", 3 1/8" - 3 1/2", 3 1/2" - 3 7/8", 3 7/8" - 4 1/4"
