Product Description

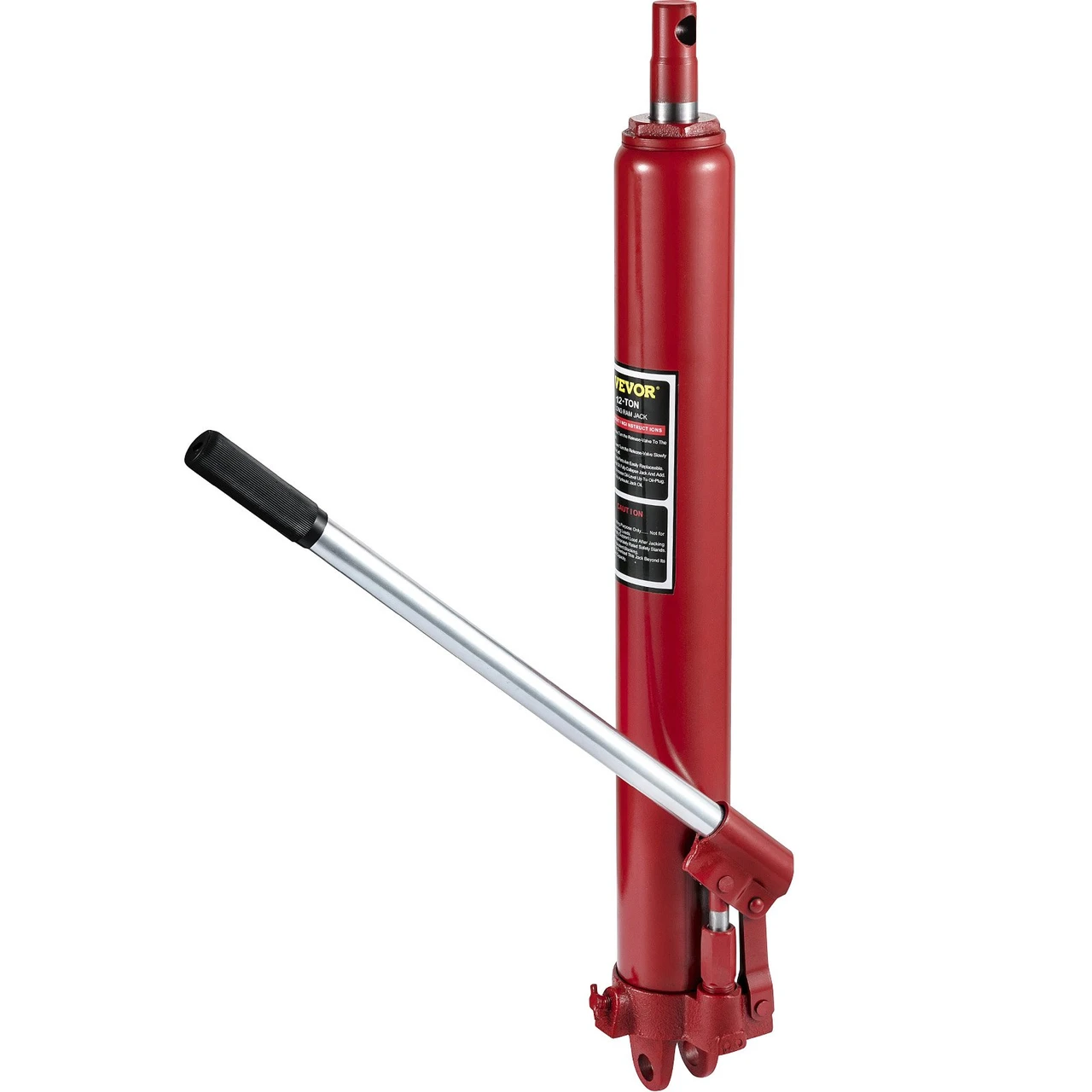

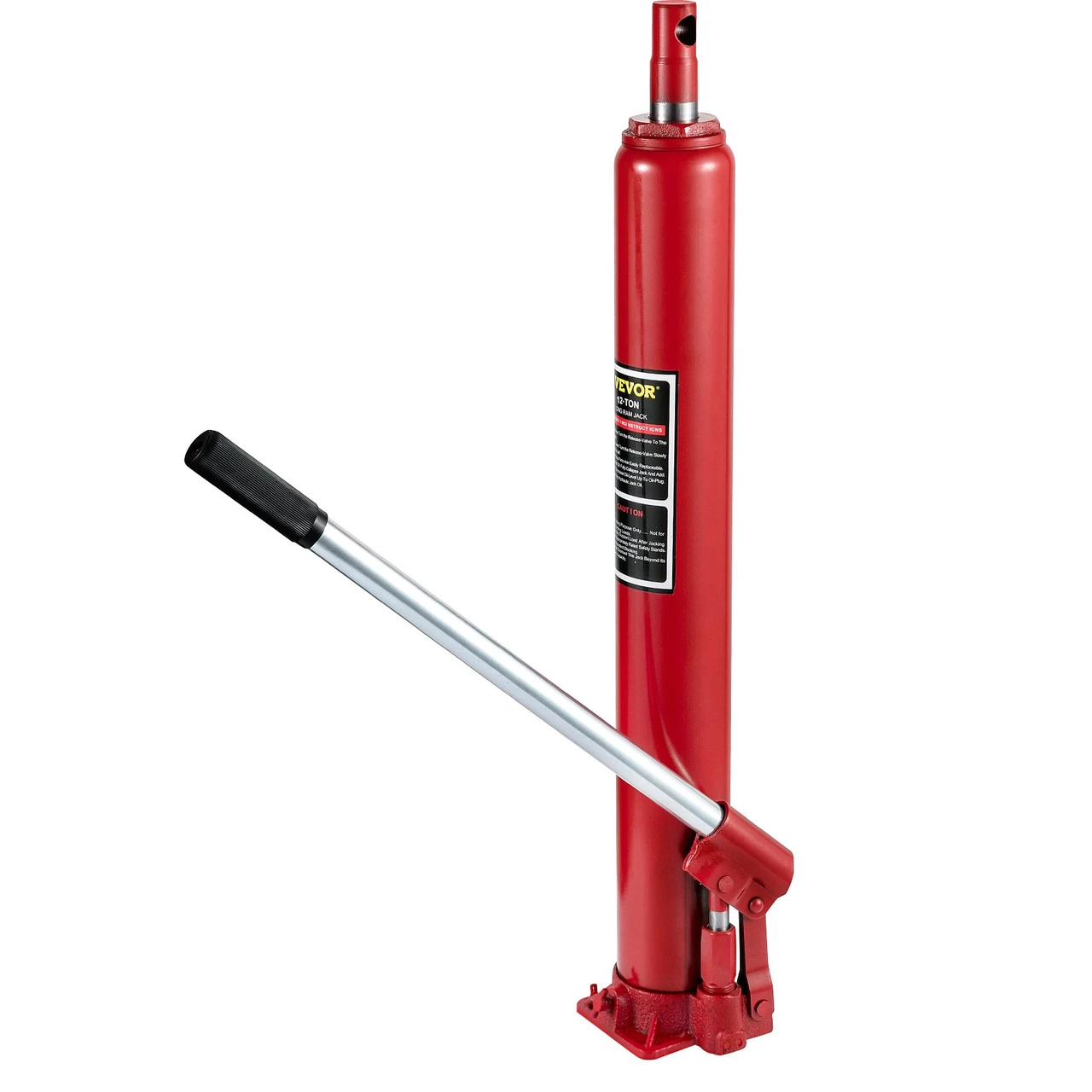

- Handles up to 12-Ton: This 12-Ton capacity long ram hydraulic jack helps you convert your existing hoist to a convenient and fast one. A quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications.
- 26" -45.7" Lifting Range: Minimum height: 26 in/66 cm. Maximum height: 45.7 in/116 cm. The long ram hydraulic round bottom jack provides an ample 19.7 in/50 cm stroke for the optimal lift of objects up to 12 tons/26455 lbs. in weight. And the slow release function for reliability and security.
- Reliable & Durable Jack: Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life. The piston-ram is treated and polished to resist skiving and utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing the load from falling slowly or bypassing oil drift.

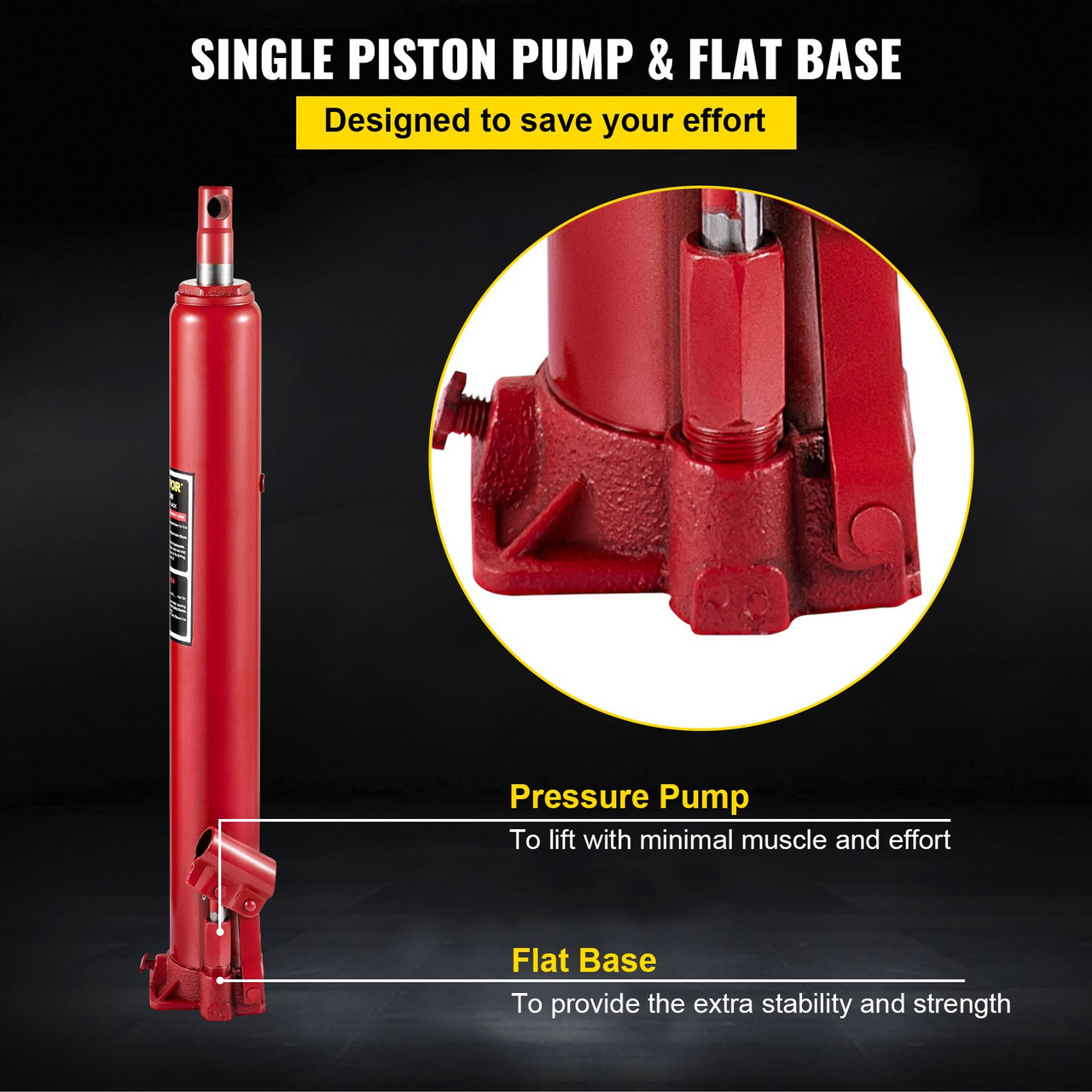

- Labor-saving Long Ram: Long ram jack features a convenient handle with a rubberized comfort grip. Clevis style base allows the jack mounts directly onto most shop cranes. And the glide-action pressure pump is designed to lift with minimal muscle and effort.

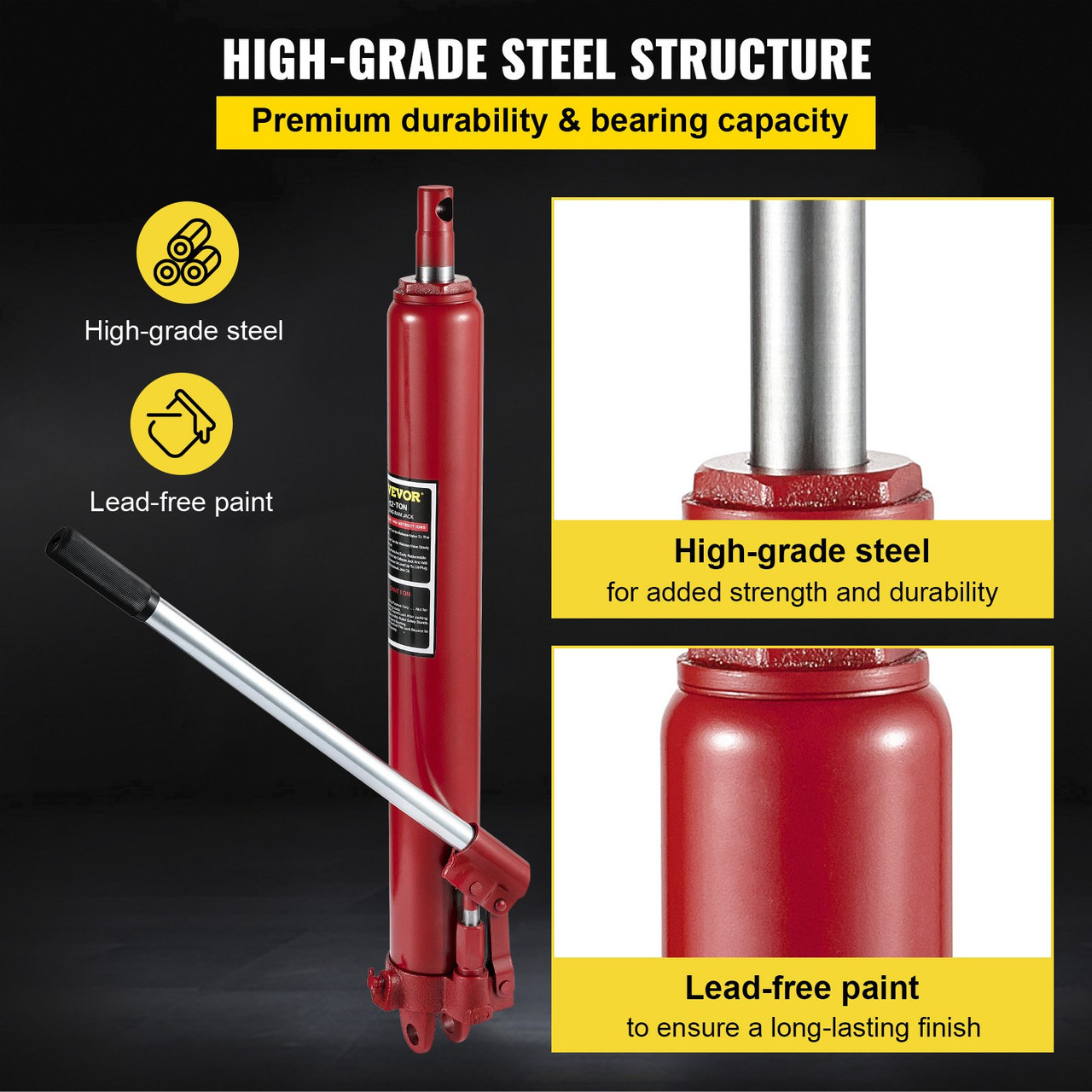

- Sturdy Steel Construction: Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability. A lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish. Paint is oil, grease, and dirt-resistance for easy cleanup.
Specifications
- Model: VV-CGQJD-HODP-12T
- Lifting Capacity: 12 tons/26455 lbs
- Min. Lift Height: 24 in/61 cm
- Max. Lift Height: 43.3 in/111 cm
- Stoke: 19.7 in/50 cm
- Diameter: 3.1 in/8 cm
- Piston Rod Dia.: 1.3 in/3.4 cm
- Pinhole Dia.: 0.7 in/1.7 cm
- Base (L x W): 10 cm x 10 cm/ 3.9 in x 3.9 in
- Weight: 11.8 kg/26 lb
