Product Description

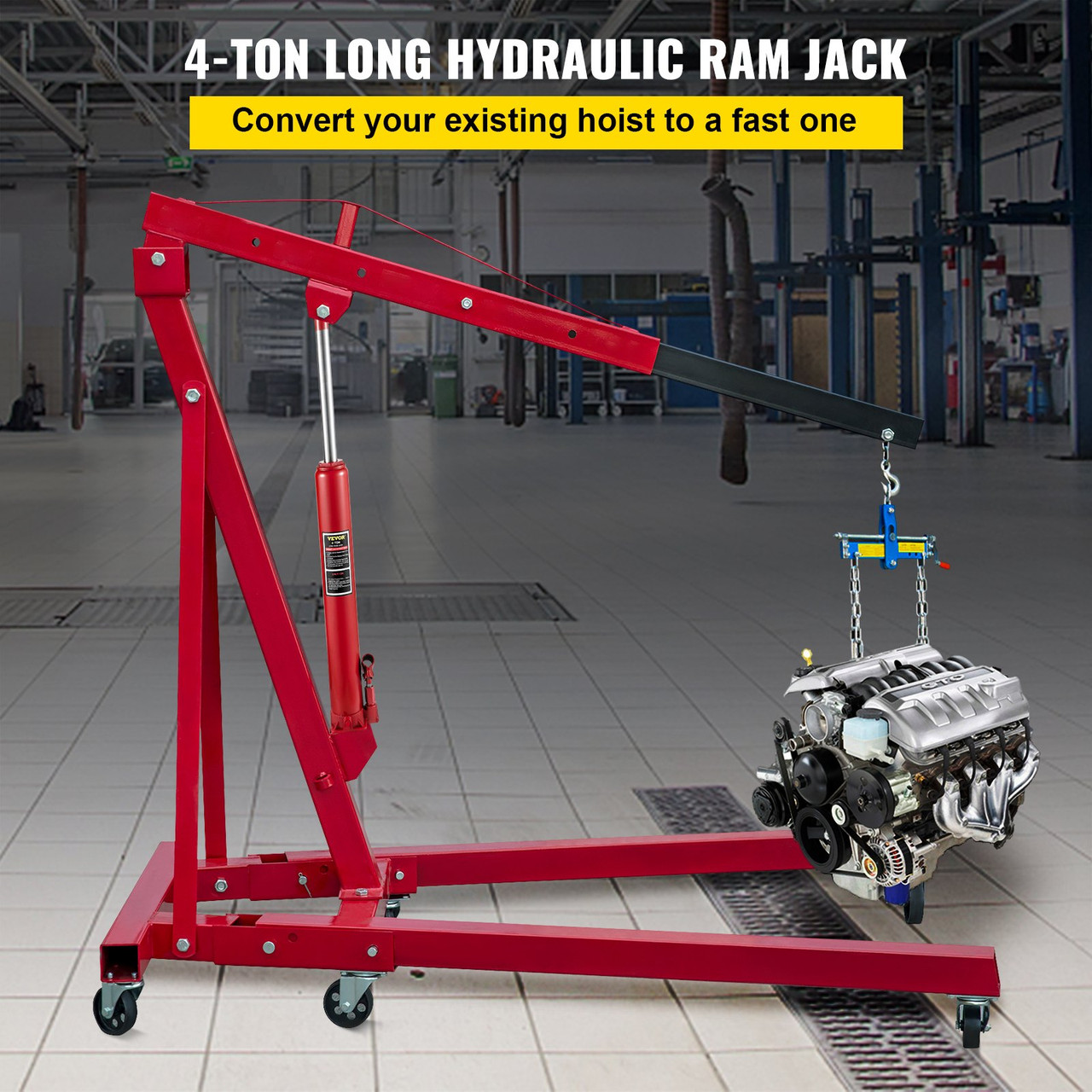

- Handles up to 4-Ton/8818 lbs: This 4-Ton capacity long ram hydraulic jack helps you convert your existing hoist to a convenient and fast one. A quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications.

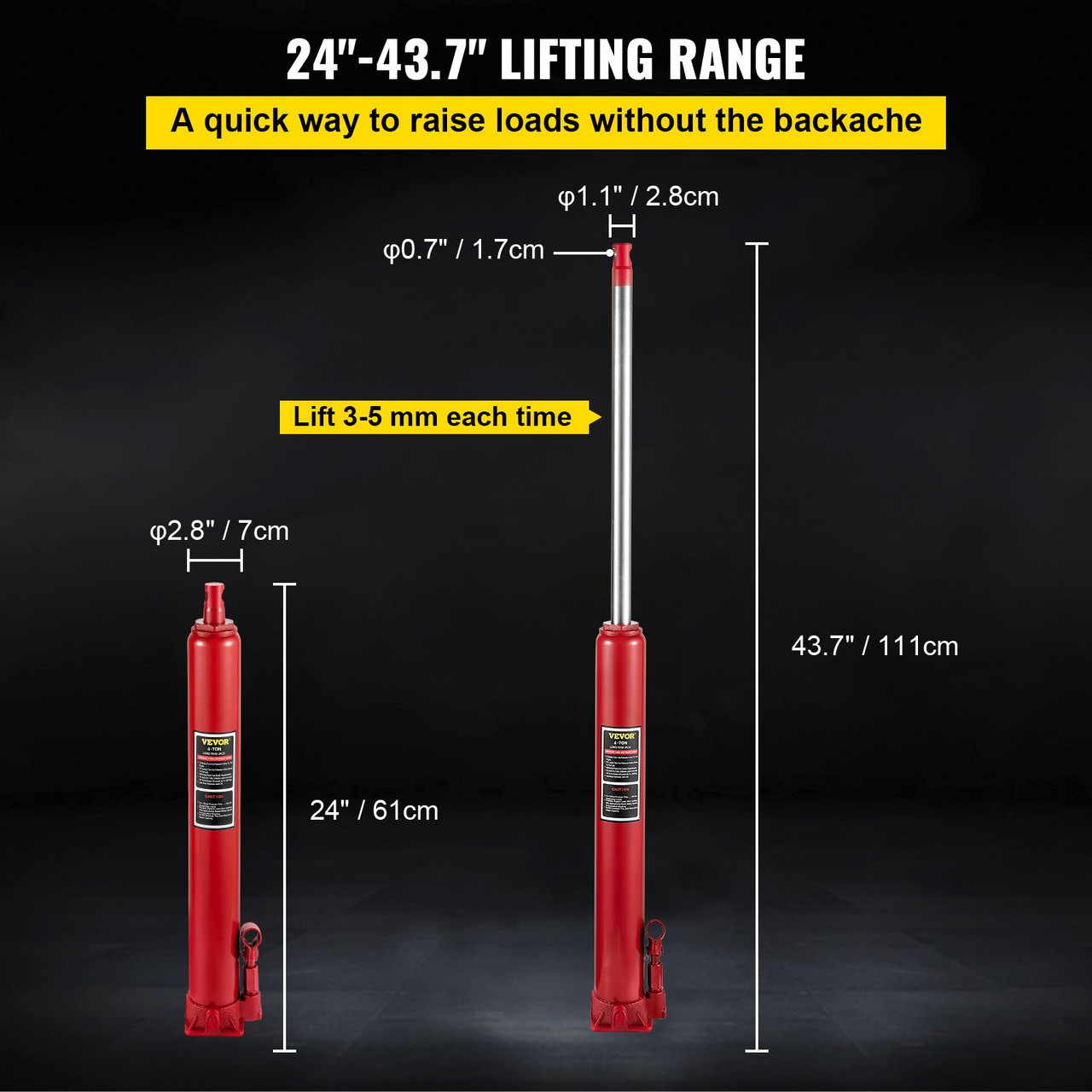

- 24" -43.7" Lifting Range: Minimum height: 24 in/61 cm. Maximum height: 43.7 in/111 cm. The long ram hydraulic round bottom jack provides an ample 19.7 in/50 cm stroke for the optimal lift of objects up to 4 ton/8818 lb. in weight. And the slow release function for reliability and security.

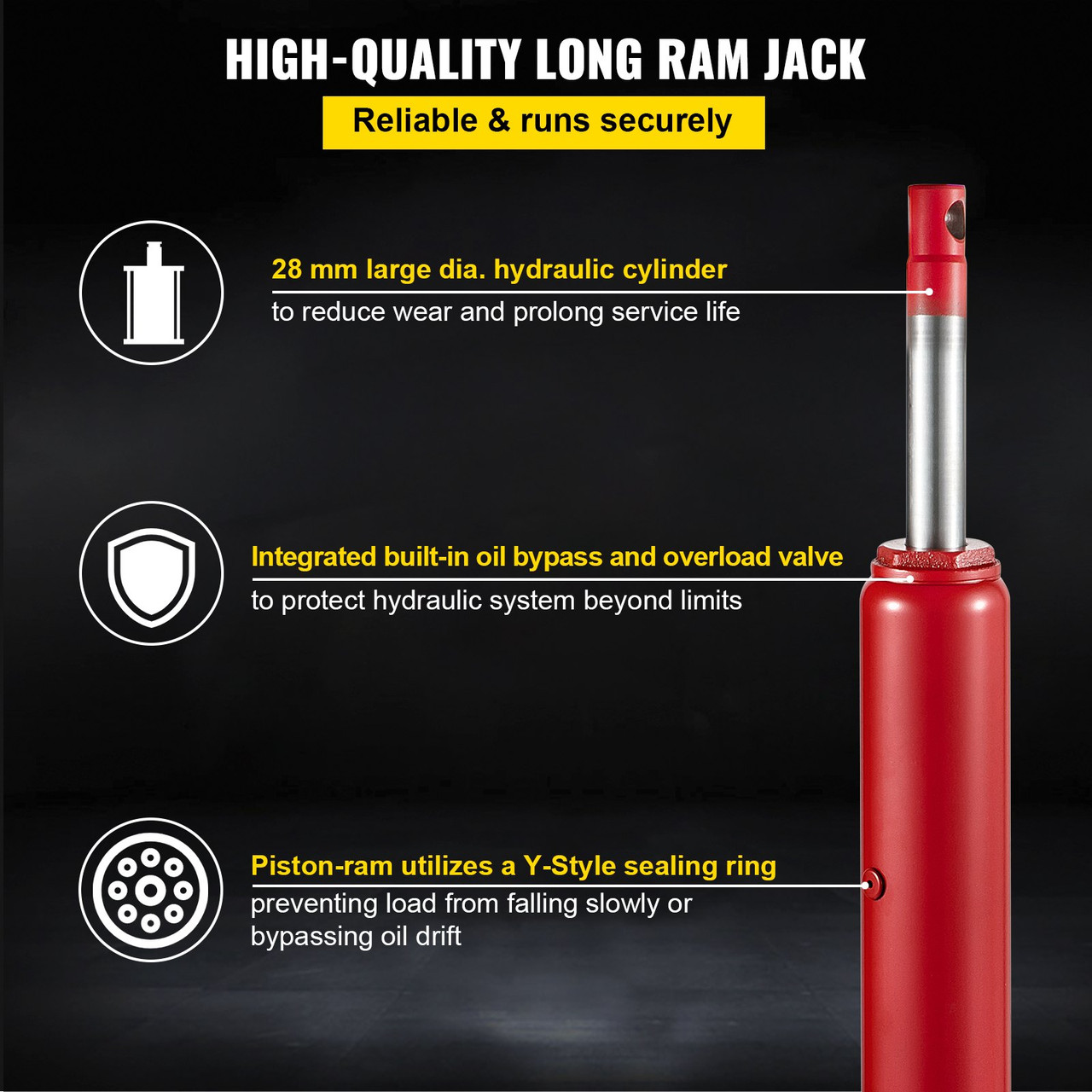

- Reliable & Durable Jack: Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life. The piston-ram is treated and polished to resist skiving and utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing the load from falling slowly or bypassing oil drift.

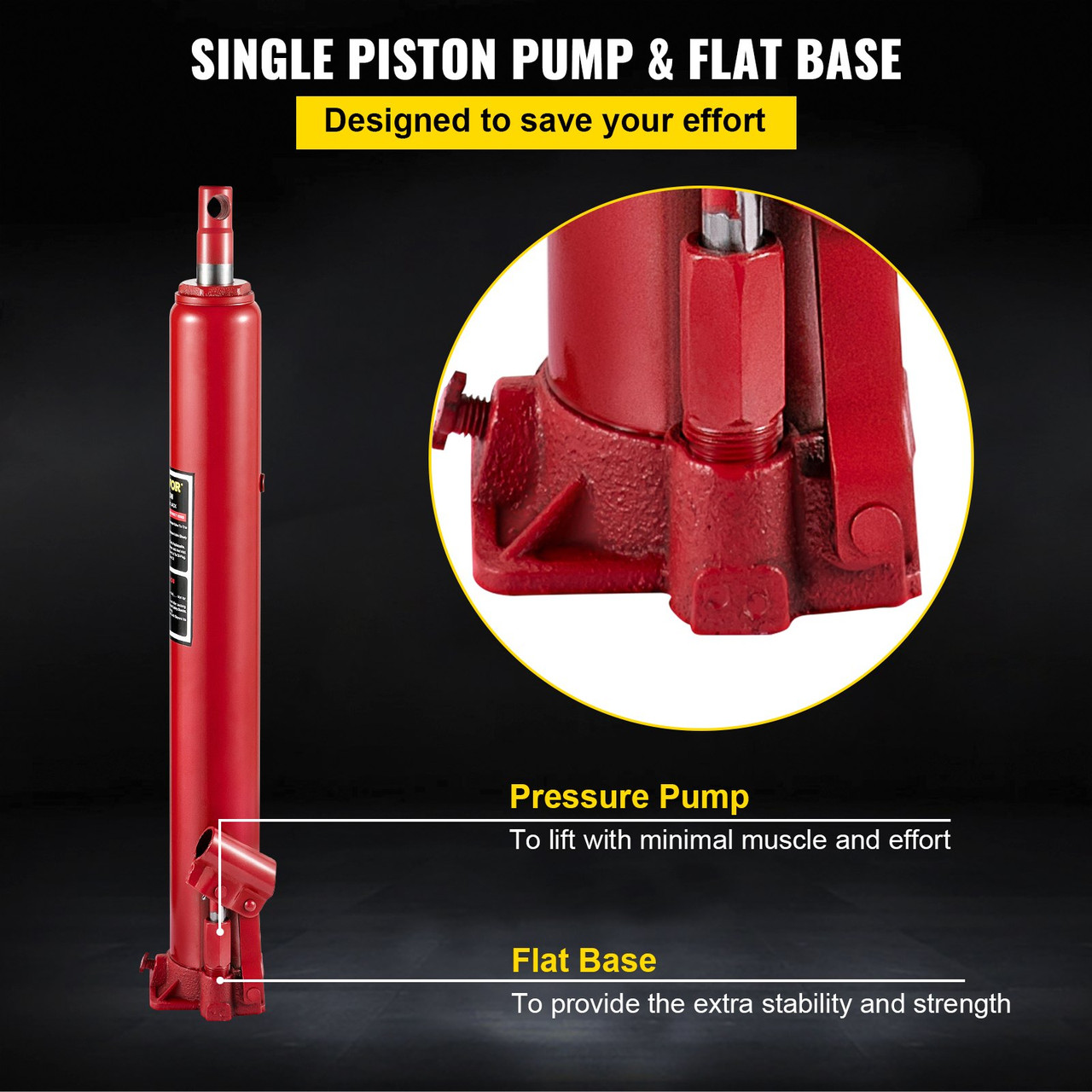

- Labor-saving Long Ram: Long ram jack features a convenient handle with a rubberized comfort grip. The flat base allows the jack mounts directly onto most shop cranes. And the glide-action pressure pump is designed to lift with minimal muscle and effort.

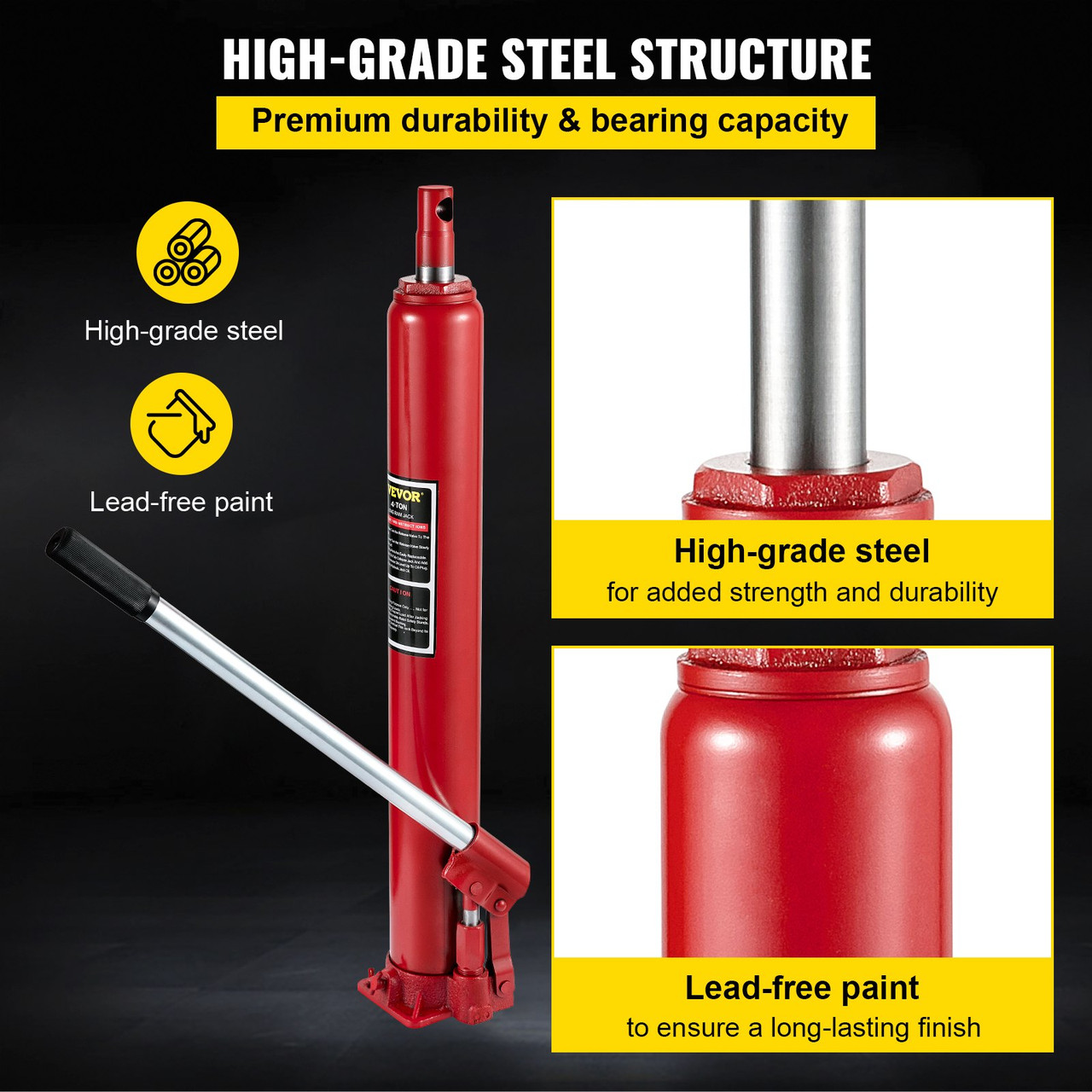

- Sturdy Steel Construction: Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability. A lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish. Paint is oil, grease, and dirt-resistance for easy cleanup.
Specifications
- Model: VV-CGQJD-HODP-4T
- Lifting Capacity: 4 tons/8818 lbs
- Min. Lift Height: 24 in/61 cm
- Max. Lift Height: 43.7 in/111 cm
- Stoke: 19.7 in/50 cm
- Piston Rod Dia.: 1.1 in/2.8 cm
- Pinhole Dia.: 0.7 in/1.7 cm
- Product Diameter: 2.8 in/ 7 cm
- Base(L x W): 6 x 6 cm/2.4 x 2.4 in
- Weight: 17.6 lb/8 kg
