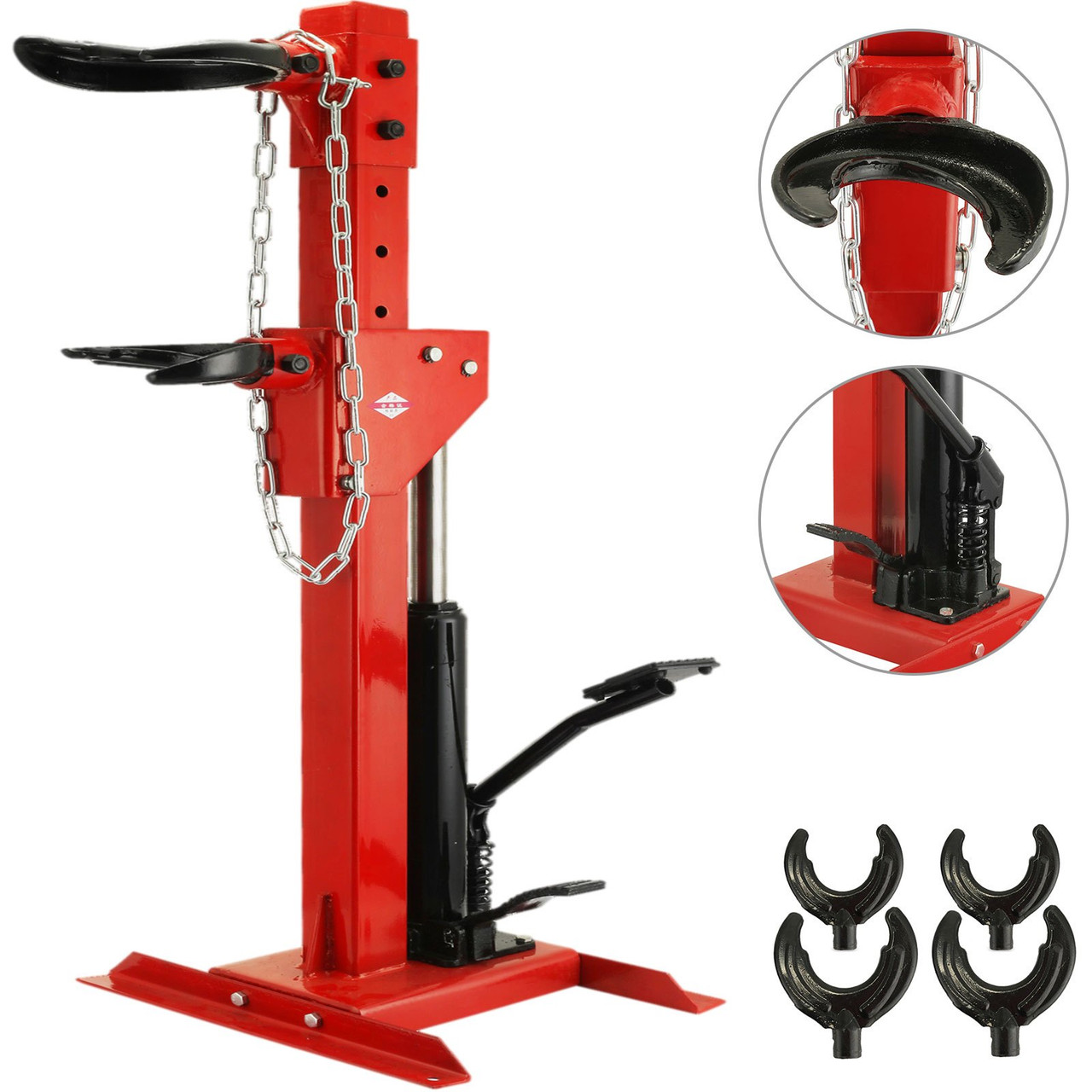

Product Description
- ?HIGH PERFORMANCE?- The Capacity: 3 Ton (6600 lbs); The lifting height is 495~820 mm (19.5"* 32.3"), and its max support bar shaft open can be 60* 300 mm (2.4"* 11.8").

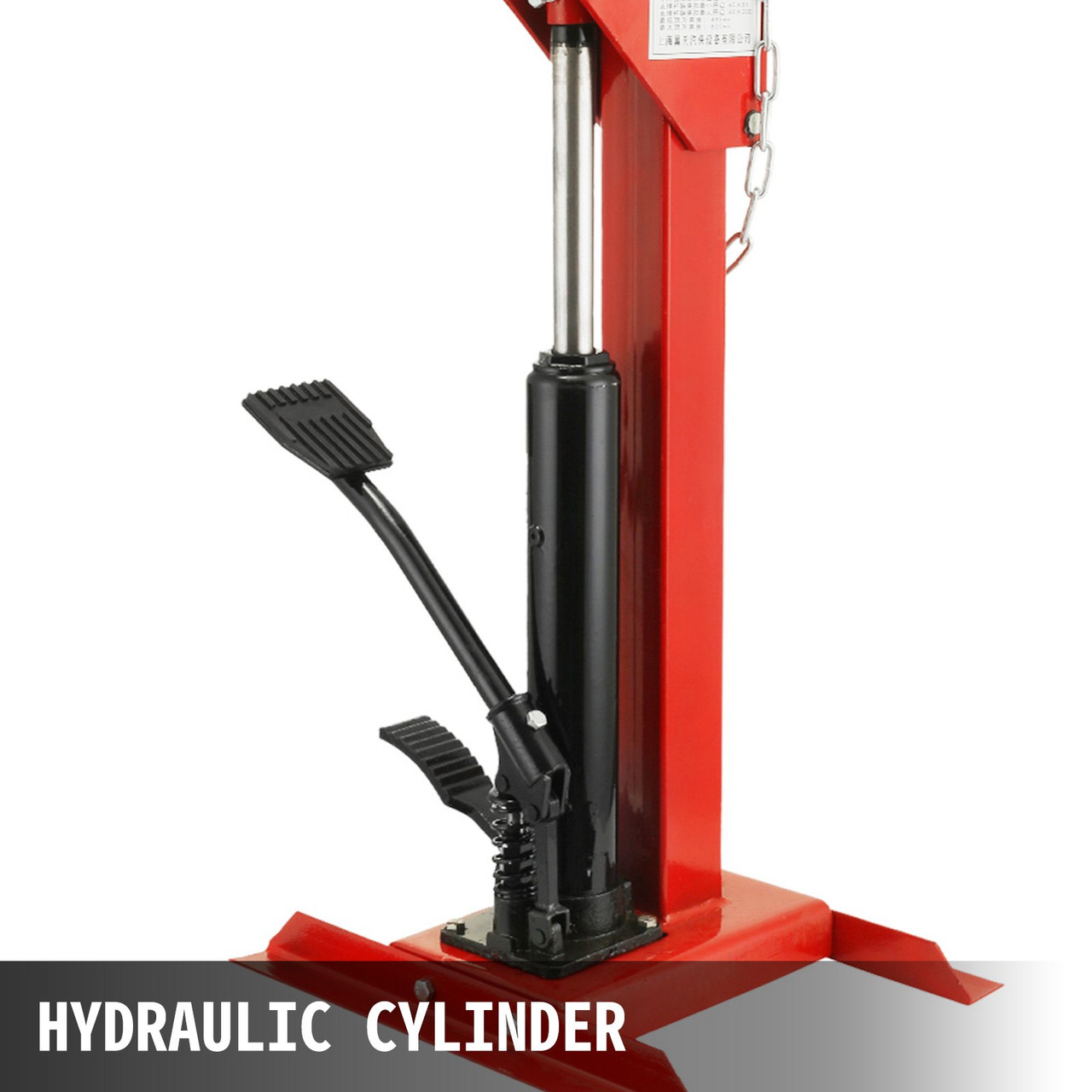

- ?HYDRAULIC CYLINDER?- Hydraulic cylinder is made with good tightness. There will be no oil leakage. And needs no efforts to operate the product for single person.

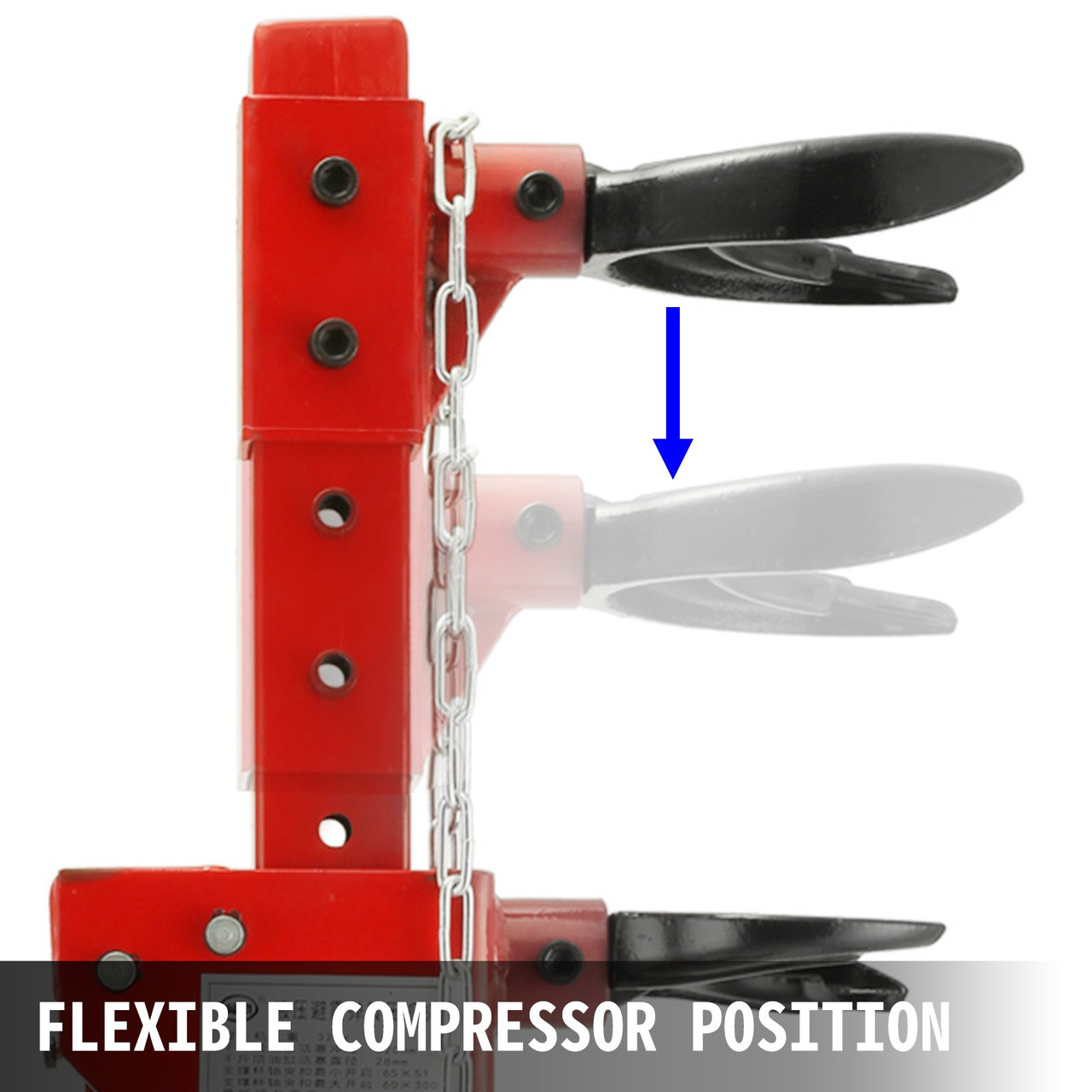

- ?FLEXIBLE COMPRESSOR?- There are 7 small holes on the column by which the compressor can be flexibly adjusted for a wide range of applications to suit the shock absorber springs of different models.

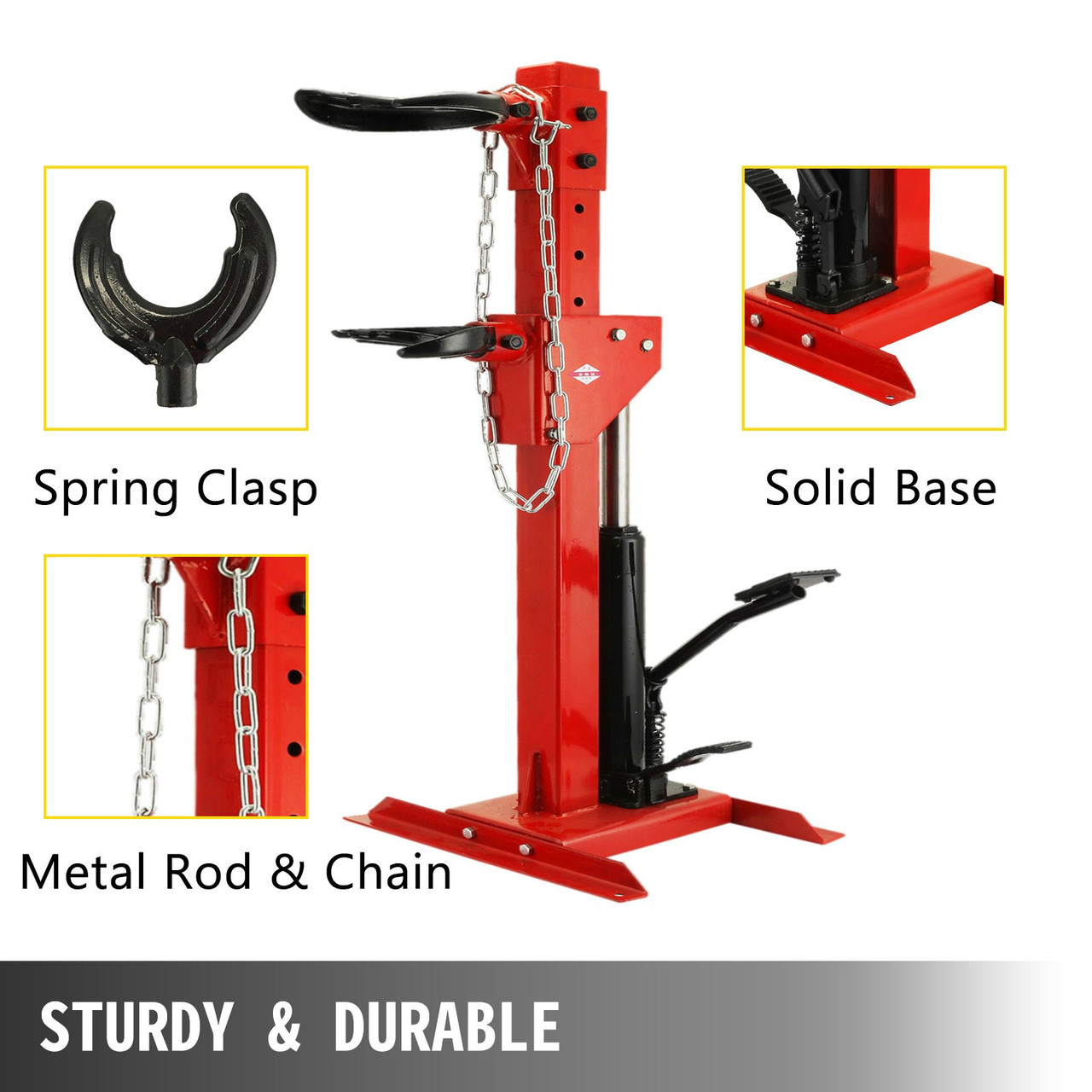

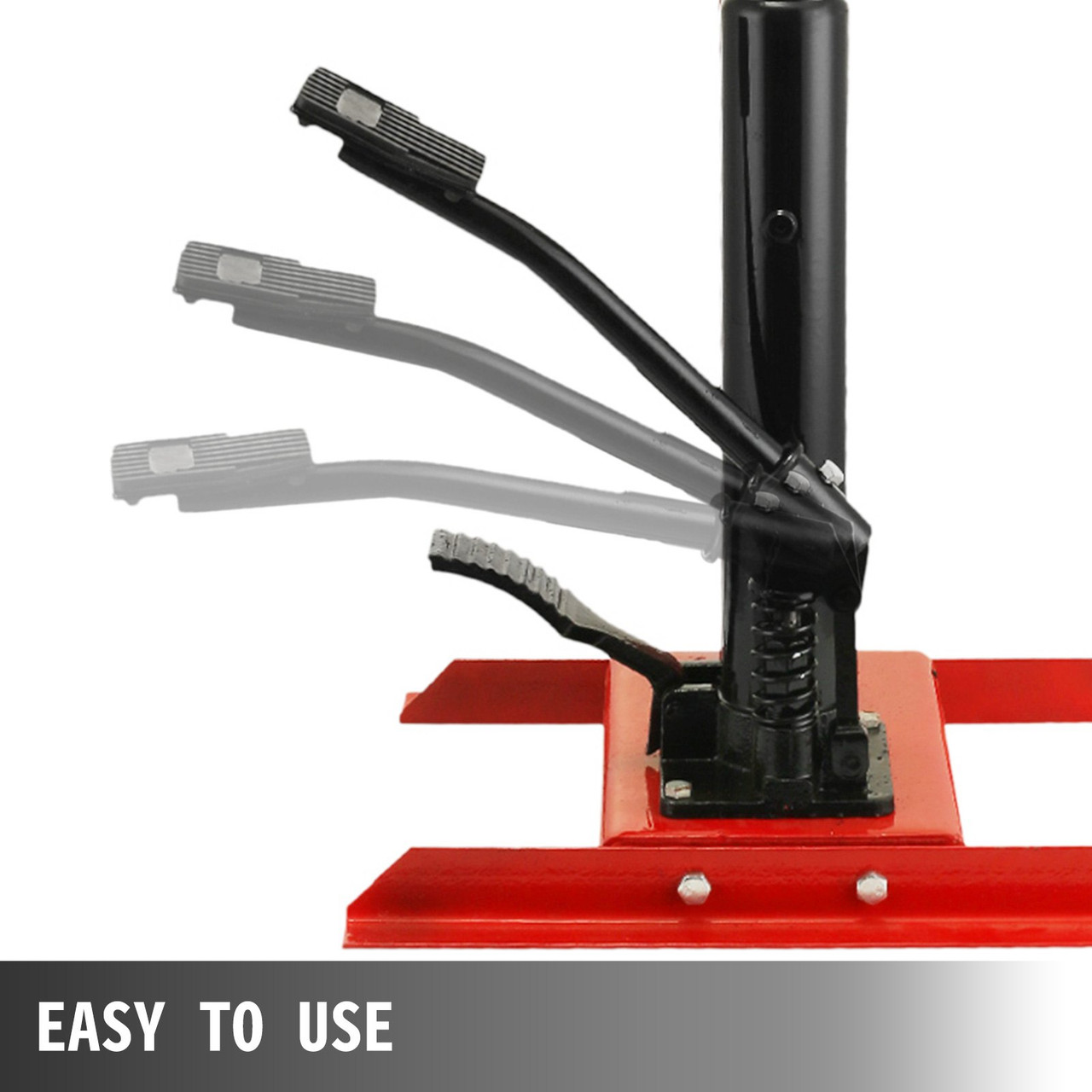

- ?EASY TO USE?- This product has a foot pedal for easy and convenient operation, also make sure the use is safe, and saves time and effort for you.

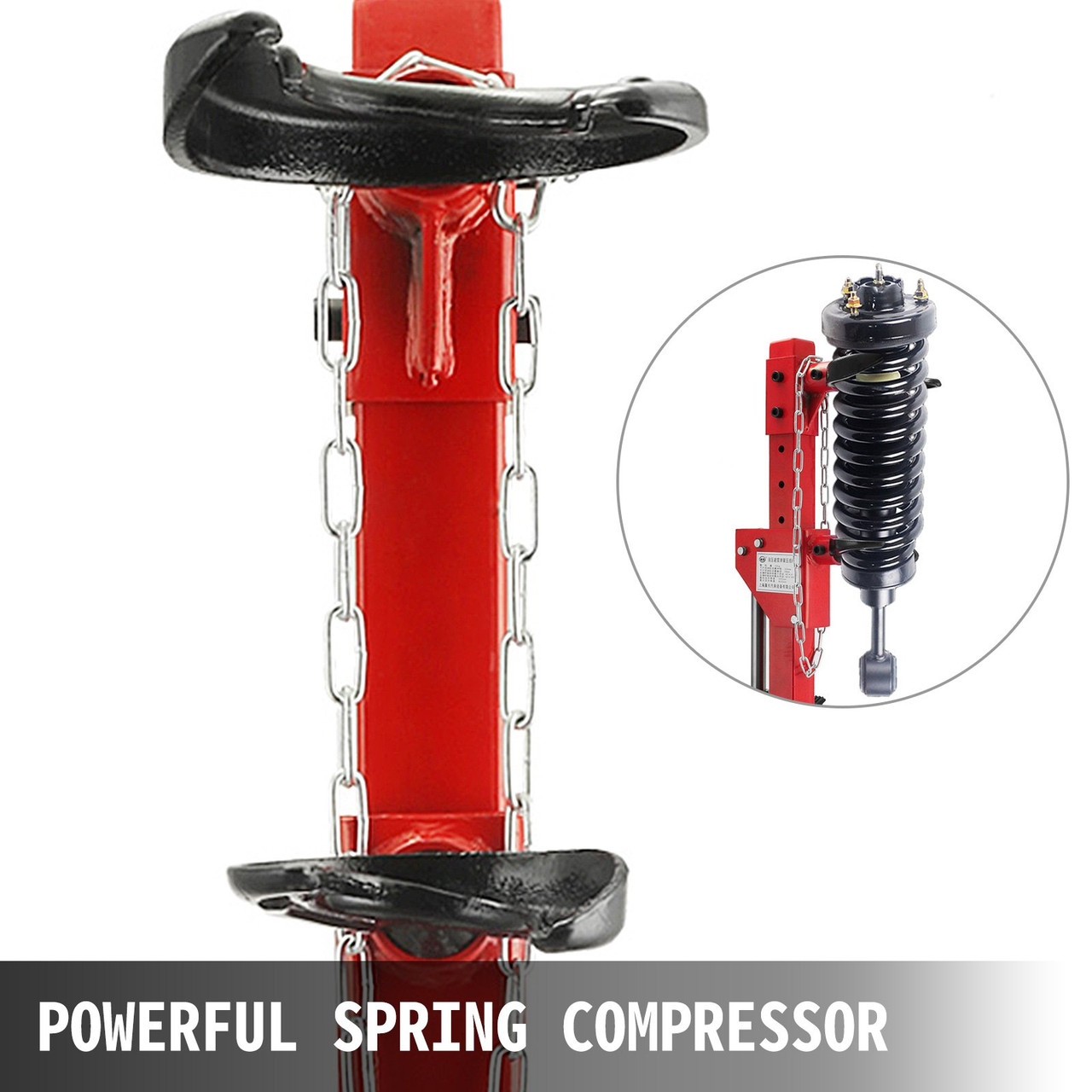

- ?WIDE APPLICATION?- Suitable for the disassembly and assembly of strut type shock absorbing springs for cars, off-road vehicles, vans, pickup trucks and other vehicles.
Specifications
- Load Capacity: 3T (6600 lbs)
- Cylinder Piston Stroke: 320 mm (12.6")
- Piston Diameter: 28 mm (1.1")
- Min. Support Bar Shaft Open: 65* 51 mm (2.6"* 2")
- Max. Support Bar Shaft Open: 60* 300 mm (2.4"* 11.8")
- Jack Lifting Height: 495~820 mm (19.5"* 32.3")
- Height Adjustment: Adjustable with 7 holes on the column
- Gross Weight: 32 kg (70.5 lbs)
- Package Dimensions: 107* 26* 19 cm (42.1 X 10.2" X 7.5")
