Product Description
| Brand | Jet |
| Height | 45 inch |
| Width | 32 inch |
| Length | 71 inch |
| Net Weight | 1055 pound |
| Gross Weight | 1195 pound |
| Swing over Bed (in.) | 13 |
| Swing over Cross Slide (in.) | 7-25/32 |
| Swing Through Gap (in.) | 18-3/4 |
| Length of Gap (in.) | 8 |
| Distance Between Centers (in.) | 40 |
| Spindle Bore (in.) | 1-3/8 |
| Spindle Mount | D1-4 |
| Spindle Taper W/ Sleeve | MT-5 (MT-3) |
| Number of Spindle speeds | 12 |
| Range of Spindle Speeds (RPM) | 60 - 1240 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Range of Longitudinal Feeds (IPR) | .0036 - .0325 |
| Range of Cross Feeds (IPR) | .0012 - .0345 |
| Number of Inch Threads | 40 |
| Range of Inch Threads (TPI) | 4 - 112 |
| Number of Metric Threads | 27 |
| Range of Metric Threads | 0.2 - 6 |
| Max Tool Size (in.) | 5/8 X 5/8 |
| Compound Slide Travel (in.) | 2-11/16 |
| Cross Slide Travel (in.) | 6-5/16 |
| Carriage Travel (in.) | 35 |
| Tailstock Spindle Travel (in.) | 3-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Steady Rest Capacity (in.) | 2-5-8 |
| Follow Rest Capacity (in.) | 2-3/4 |
| Width of Bed (in.) | 7-3/8 |
| Motor | 2HP, 230V, 1 Ph |

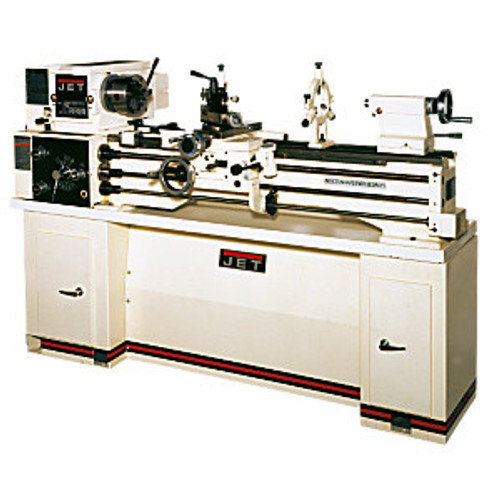

One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature. The enclosed gearbox design provides smooth, quiet operation. The low voltage motor controls and fast, easy speed changes make this BDB-1340A lathe one of a kind.
