Product Description
Features and Benefits:
- Battery Pack Test (1-6 Batteries) for effective preventative maintenance testing
- Special commercial battery algorithms for Group 31 batteries, 8D and 4D batteries
- 15’ field replaceable tester cable for efficient testing from the cab
- New clamp designed specifically for HD and Commercial testing
- Built in integrated printer

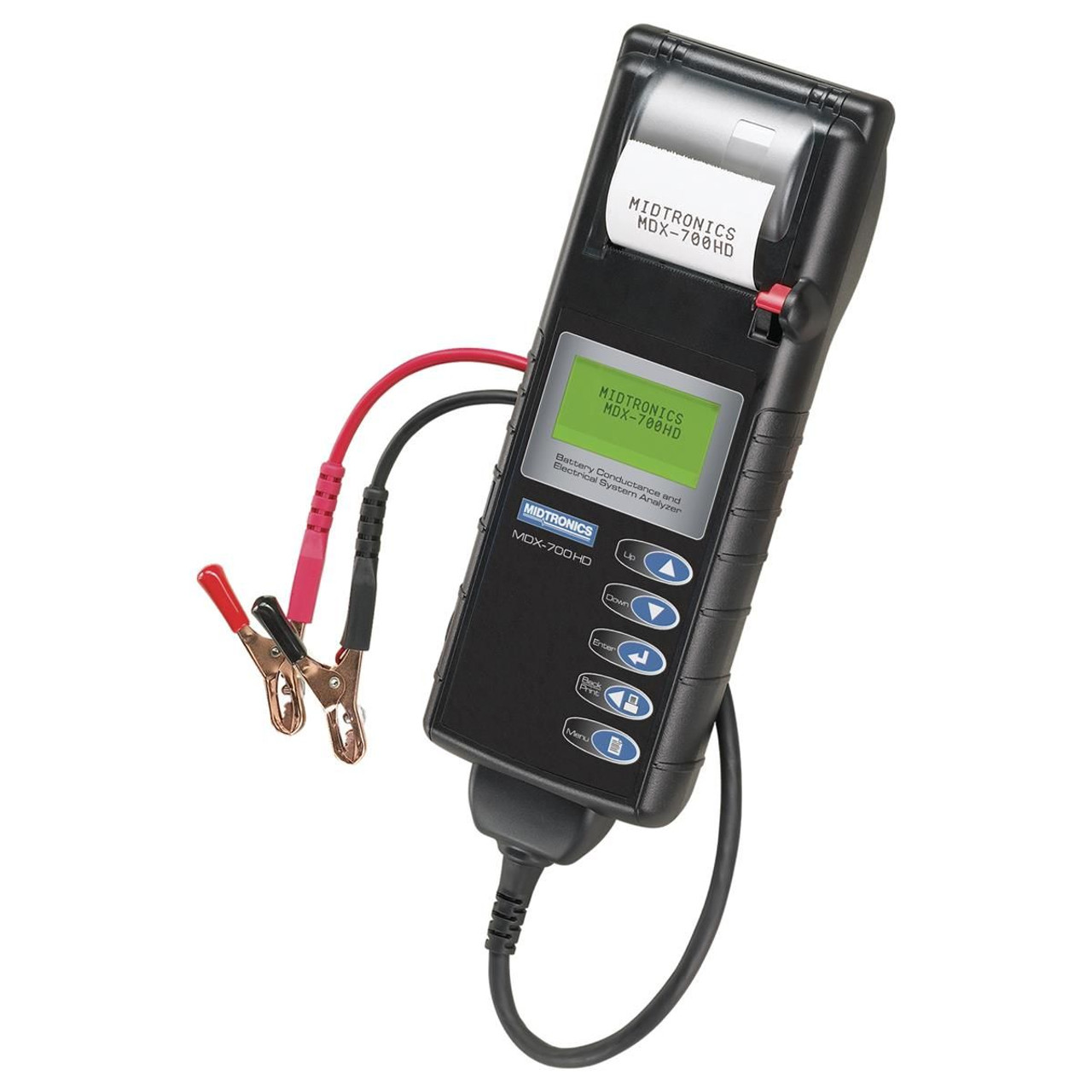

The MDX-700 Heavy Duty tester combines individual or pack battery tests, with full system testing diagnostics, including starter and alternator, onto the back-lit, easy to read screen. These all-in-one results can also be printed out with the integrated printer.
⚙️ Electrical & Battery Testing
-
Voltage Range: 0.9V to 30V DC
-
Battery Types Supported:
-
Flooded
-
AGM (flat plate & spiral)
-
Gel
-
-
System Compatibility:
-
6V & 12V batteries
-
12V & 24V starting and charging systems
-
-
CCA Range: 100–2000 Cold Cranking Amps
-
Conductance Technology: Fast, accurate, and safe diagnostics
- ️ Printer & Interface
-
Integrated IR Printer: Prints test results with date/time stamp
-
User Interface: Menu-driven prompts for guided testing
-
Languages Supported: English, Spanish, French
- Physical Specs
| Attribute | Value |
|---|---|
| Dimensions | 10.6" x 3.9" x 2.4" (27 x 10 x 5 cm) |
| Weight | ~1.7 lbs (771g) |
| Cable Length | 15 feet (455 cm) |
| Housing Material | Acid-resistant ABS plastic |
| Operating Temp | 32°F to 122°F (0°C to 50°C) |
| Power Source | Battery under test + 6 AA batteries |
- Additional Features
-
Battery Pack Testing: Up to 6 connected batteries
-
Starter & Alternator Analysis: Without disabling ignition
-
Voltmeter Mode: For manual voltage checks
-
Memory Recall: View or reprint last test results
-
Activity Counter: Tracks good vs. replace decisions
This tool is built for fleet diagnostics, preventative maintenance, and commercial vehicle service. Want to compare it with the MDX-700HD (non-printer version) or explore compatible accessories like thermal paper rolls
