Product Description
The #595 is a premier automotive diagnostic tool. It is equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors. The #595 features a huge LCD display w/bargraph for easy viewing. This meter can even be interfaced to your PC or notebook computer for enhanced diagnostics and data presentation. The software and computer interface cable are included free! The #595 includes two sets of test leads, RPM pick-up, temperature probe, software CD, interface cable, protective holster, 9 volt battery, instructions manual and hard storage case. Inductive RPM pick-up features a five position, adjustable sensitivity switch.
Features
58 Test Ranges, 16 Test Functions
Huge LCD display w/analog bargraph, large digits and brilliant backlighting
Ms Pulse Width for fuel injector on-time
Max/Min function captures high/low readings for better diagnostic capability
4 Step adjustable trigger levels
RS-232 PC Interface
Desireable 20 Amp fused test range
Special access panels for fuses
Hard Storage Case for safe storage
Auto Power-Off, saves batteries
TEST RANGES:
DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
AC Volts: 0-400mV, 4V, 40V, 400V, 750V
DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
RPM 4: 0-4,000 RPM, 12,000 RPM x 10
RPM2/DIS: 0-4,000 RPM, 6,000 RPM x 10
Dwell: 1, 2, 3, 4, 5, 6, 8, 10, & 12 cyl.
Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 30kHz
Duty Cycle: 0.1% - 99.9%
mS Pulse Width: 2.0ms - 10.0ms
Period: 2.0ms - 20.0ms
Temperature: -4F to 1400F, -20C to 760C
Continuity: Audible Beep
Diode Test: Diode Test

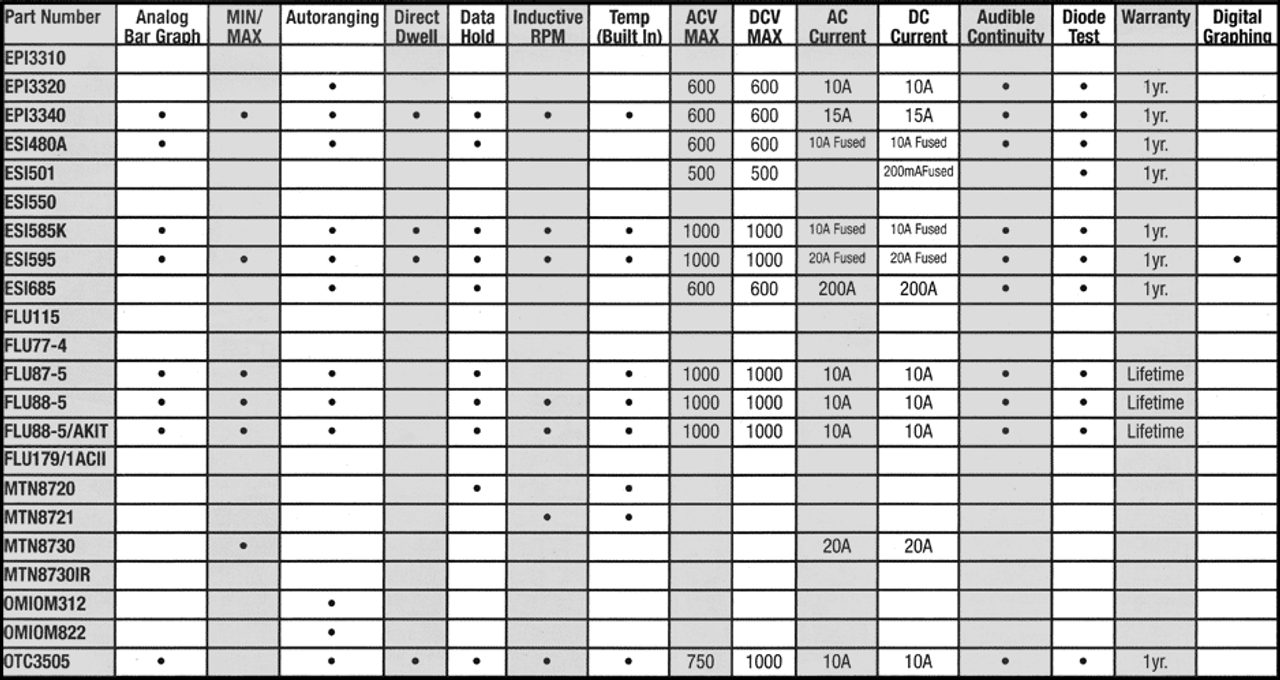

NOTE: Click image for multi-meter comparison chart.
Features
58 Test Ranges, 16 Test Functions
Huge LCD display w/analog bargraph, large digits and brilliant backlighting
Ms Pulse Width for fuel injector on-time
Max/Min function captures high/low readings for better diagnostic capability
4 Step adjustable trigger levels
RS-232 PC Interface
Desireable 20 Amp fused test range
Special access panels for fuses
Hard Storage Case for safe storage
Auto Power-Off, saves batteries
TEST RANGES:
DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
AC Volts: 0-400mV, 4V, 40V, 400V, 750V
DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
RPM 4: 0-4,000 RPM, 12,000 RPM x 10
RPM2/DIS: 0-4,000 RPM, 6,000 RPM x 10
Dwell: 1, 2, 3, 4, 5, 6, 8, 10, & 12 cyl.
Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 30kHz
Duty Cycle: 0.1% - 99.9%
mS Pulse Width: 2.0ms - 10.0ms
Period: 2.0ms - 20.0ms
Temperature: -4F to 1400F, -20C to 760C
Continuity: Audible Beep
Diode Test: Diode Test

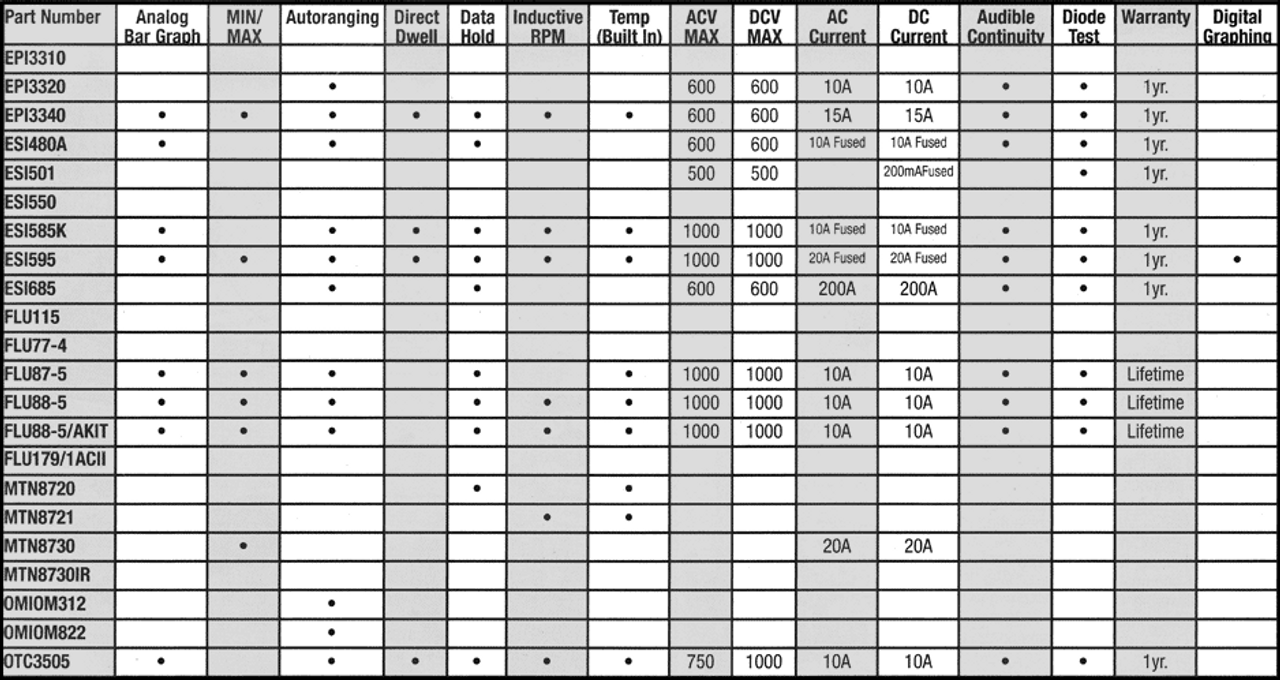

NOTE: Click image for multi-meter comparison chart.
Test functions: ,AC/DC Volts, ms-Period, AC/DC Amps, ms-Pulse Width, Ohms , Temperature, Capacitance , Diode test, Frequency, Continuity, Duty cycle. Includes: Probe style leads, Alligator clip style test leads, Temperature probe ,RS-232 PC interface cabl
