Product Description

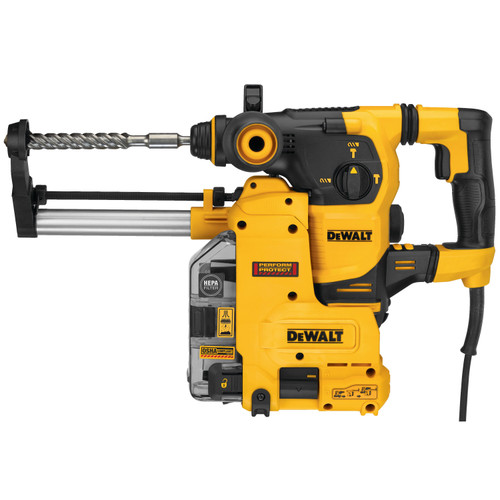

This OSHA Table 1-compliant Dust Extractor works with the DCH273 1 in. Hammer. It features an OSHA 1926.1153-compliant Dust Box Assembly. With a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater. The Dust Extractor has a powerful built in motor for increased suction during high performance drilling. The 2-second power-off delay ensures that dust extraction continues after the drill is switched off. It accomodates drill bit diameters up to 5/8 in. which allows users to drill overhead for 1/2 in. drop-ins.
FEATURES & SPECS
FEATURES
- Table 1-compliant dust management solution for 1 in. SDS Plus rotary hammers
- 2-second power off delay ensures dust extraction to continue after drill is switched off
- Clear, durable dust box ensures users can see when dust box needs to be emptied
- Built-in motor increases suction and high tool performance
- Replaceable dust nozzle to quickly change to new nozzle
- Drill up to 5/8 in. diameter, 4 in. useable length, 6 in. overall length bits
- Fits into tight spaces on scissor lifts and between overhead pipes and duct work
- Easily adjustable depth guage for accurate anchor drilling
- Replaces D25303DH
SPECIFICATIONS
- CARBIDE DRILL BIT CAPACITY 5/8 IN. X 4 IN. USEABLE X 6 IN. OVERALL
- COMPATIBLE WITH DCH273P2 , DCH273B
- FILTER CLEANING MECHANISM TRUE
- FOR TOOL TYPE SDS PLUS ROTARY HAMMERS
- HEPA FILTER (99.97% EFFICIENCY) TRUE
- OSHA COMPLIANCE TABLE 1
- TOOL HEIGHT 10.2 IN
- TOOL LENGTH 13.6 IN
- TOOL WEIGHT 3.08 LBS
- TOOL WIDTH 5 IN
INCLUDES
- DWH303DH Extractor
- DWH302DH Dust Box
- Side Handle
