    Atlas

    $5,604.56
    (No reviews yet) Write a Review
    SKU:
    1000-9KOH
    Width:
    22.00 (in)
    Height:
    40.00 (in)
    Depth:
    113.00 (in)
    Gift wrapping:
    Options available
    Free Shipping
    Adding to cart… category.add_cart_announcement

    Product Description

    Capacity 9,000 LB.
    Lifting Time Ask Your Salesperson
    Overall Height 142" (11' 10") or
    138" (11' 6")
    Overall Width 141" (11' 9") (With Power Unit)
    134 ¼" (11' 2 ¼")
    Outside Column To Outside Column 124 ?" (10' 4 ?")
    Maximum Lift Height
    (Without Adapters)    		 74" (6' 2")
    Maximum Lift Height

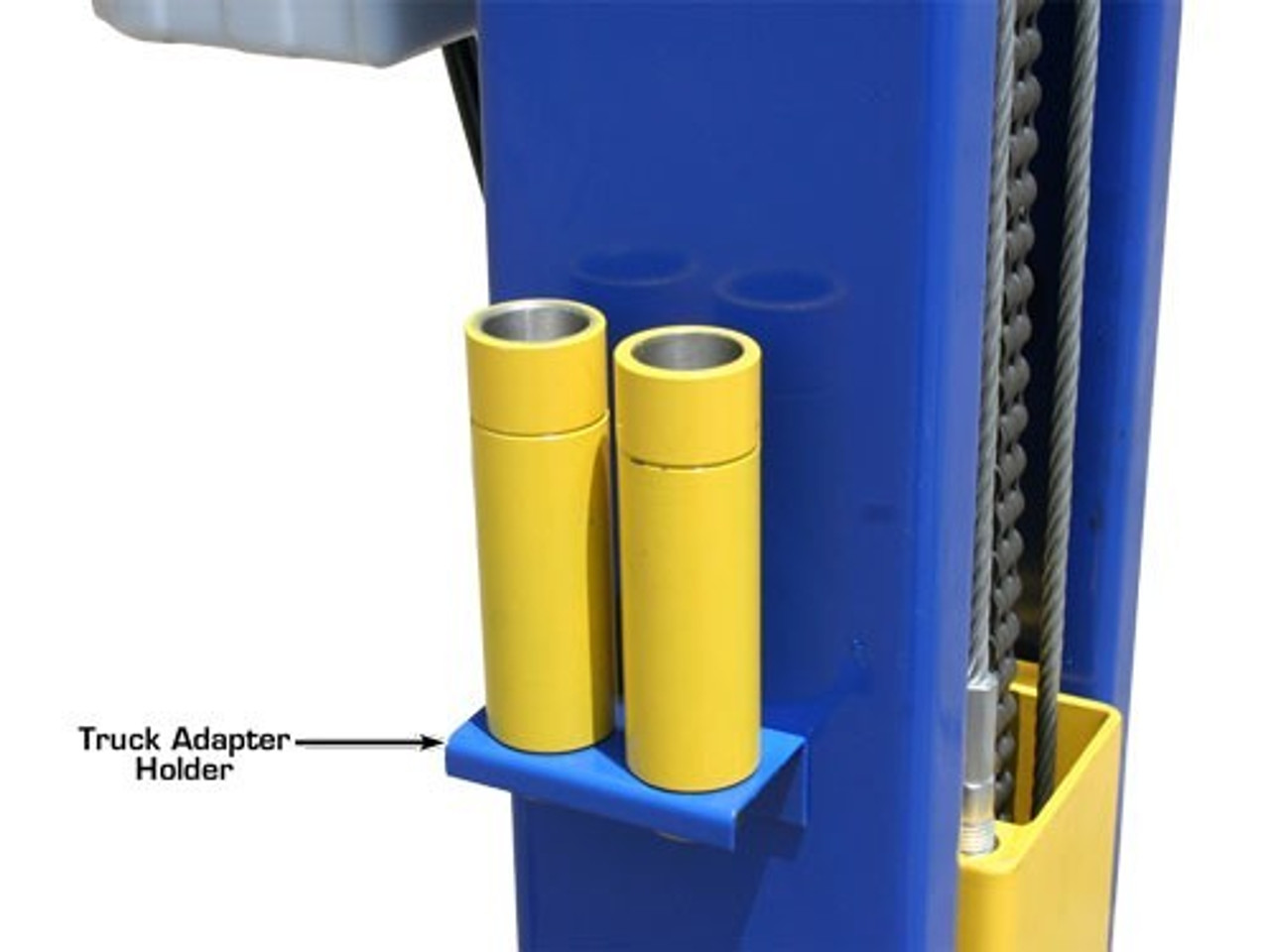

    (With Adapters)    		 80 ¼" (6' 8 ¼")
    Padded Bar Height 136" (11' 4") or
    132" (11')
    Minimum Arm Height 4"
    Inside Column 109 ¾" (9' 1 ¾")
    Column Size 7 ¼" x 11 ?"
    Drive Thru 92 ½" (7' 8 ½")
    Base of Lift 13 ½" x 18"
    Column Thickness of Steel 5mm
    Carriage Thickness of Steel 6mm
    Arms Thickness of Steel 6mm
    Cable Diameter .375"
    Motor/Electrical Requirement 3 HP 220V +/- 5% (209-231volts) single (1) phase.
    A 30 amp breaker is required.
    Oil Requirement 3-5 Gallons AW32/AW46
    Shipping Weight 1,450 LB.
    Requires a minimum of 4" of concrete with 3000 psi.
