Product Description

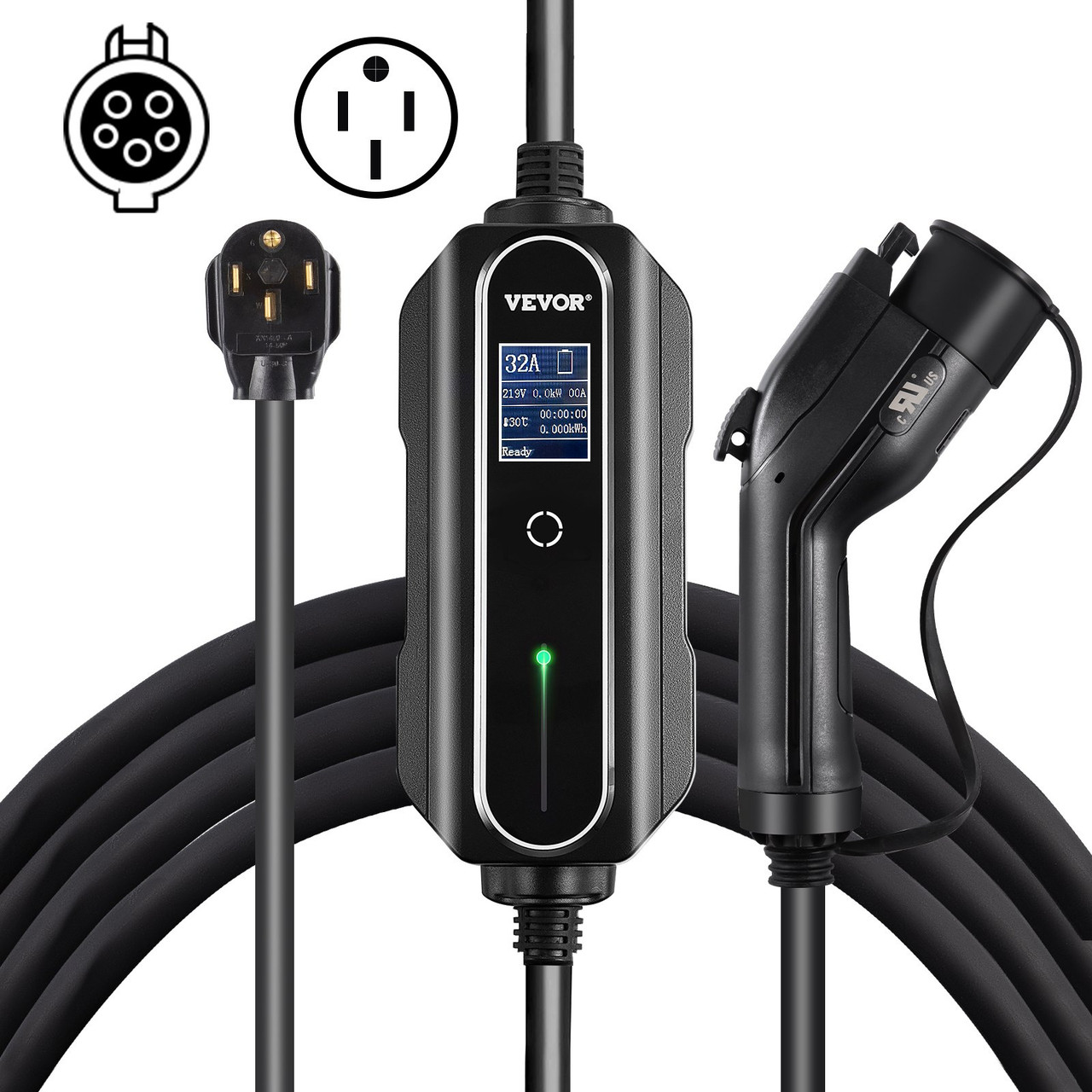

- Faster Charging Speed: our 32A level 2 portable EV charger is designed to make EV charging quick and effortless. This EV portable charger with NEMA 14-50 plug could charge your car 8x faster than other 8A level 1 EV chargers you have used before. The actual charging speed depends on the settings of your electric vehicle. Charger Amperage Adjustable: 10A/16A/20A/24A/32A.
- Excellent Protection: EV connector and cable have UL certification. With CE certification, IP66 control box and an IP54 EV connector to secure your car charging. The portable level 2 charger features an intelligent chip to provide lightning / leakage / grounding / over voltage / under voltage / over charge / over current / overheat protection.
- Intuitive LCD Screen: Level 2 electric charger features a real-time data screen that displays relevant information, such as actual charging voltage, selected amperage limit, actual charging power, actual charging amperage, etc. The LED indicator lights on the control box help you identify the EV charger's working condition.
- Portable & Convenient: The portable bag is included for effortless storing and carrying. The electric car charger needs no assembly. All you need is just a NEMA 14-50 outlet to plug the charger into. The compact size has a total 25 ft extra-long charging cable that fits most driveways or garages. It has flexible installation and outstanding usability.
- Universal Compatibility: The EV charger is compatible with most electric vehicles and plug-in hybrid vehicles that comply with the J1772 standard. Perfect for users who own more than one electric vehicle or buildings with docks for EV charging. When traveling or visiting relatives and friends, you don't have to worry about charging again.
Specifications
- Model: WB-SP2-AC2.0
- Plug Type: NEMA 14-50
- Charging Level: Level 2
- Charging Current: 10A / 16A / 20A / 24A / 32A
- Voltage: 110 - 240V
- Power: 7.68 kW Max
- Frequency: 50-60 Hz
- Cable Length: 25 ft / 7.5 m
- Cable Specification: 3*10awg + 1*18awg UL cable
- Connector: Universal SAE J1772(IEC 62196 Type 1)
- IP Rating: IP66 Enclosure, IP54 Connector
- Protection: Lightning / Leakage / Grounding / Over Voltage / Under Voltage / Over Charge / Over Current / Overheat Protection
- Enclosure Material: PC Plastic(UL94V-0)
- Certificate: CE (UL Cable & Connector)
- Mechanical Life: No-load Plug in/Pull out ?10000 times
- Working Temperature: -13°F to 122°F / -25°C to 50°C
- Net Weight: 7.72 lbs / 3.5 kg
- Package Dimensions(L x W x H): 15.16 x 14.96 x 5.31 in / 38.5 x 38 x 13.5 cm
