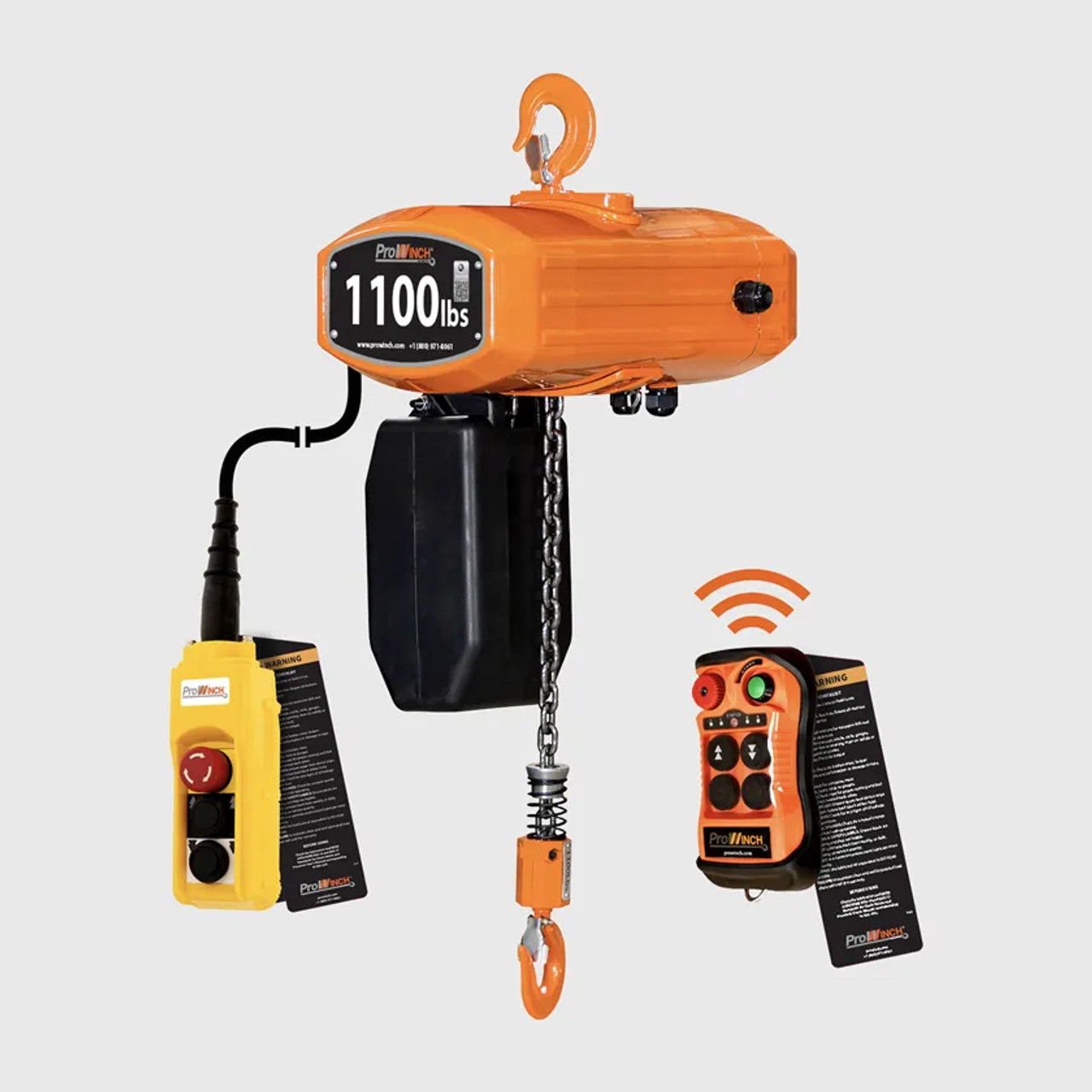

Product Description
Key Points:
| MRC Rated Capacity | 1100 lbs / 500 kg |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G80 JAPAN |
| Number of Speeds | 2 Speed |
| Control Included | Wireless F21-4 and Pendant Control |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by a powerful 0.9 KW Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications UL 1340 - ASME HST-1 , ASME B30.16, EN60204-32 , , MSXT.E528915 - Hoists
Technical Specifications:
| MRC Rated Capacity | 1100 lbs / 500 kg | Rig Chain Falls / Lines | 1 |
| Number of Speeds | 2 Speed | Chain Length (ft) | 20 ft / 6 m |
| Duty Class | H4/M5/2m/Class D | FCC Cert ID | 2AZMK-Q1212 |
| Standard Lifting Height | 20 ft / 6 m | Total Power Watts | 900 |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Noise Level | 81 dB |
| Speed (f/m) / min | 2.6 / 8 m/min | Humidity | <85% |
| Control Voltage | 24V | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Control Included | Wireless F21-4 and Pendant Control | IEC Motor Protection | IP55 |
| Motor Power | 0.9 KW | Standards Compliance | UL 1340 - ASME HST-1 , ASME B30.16, EN60204-32 |
| Motor Insulation Grade | F | UL File | MSXT.E528915 - Hoists |
| Motor Brake | Yes | Warranty | 3 Year |
| Load Chain Type | G80 JAPAN | Emergency Stop | Yes |
| Load Chain Size | 6.3x19mm |
