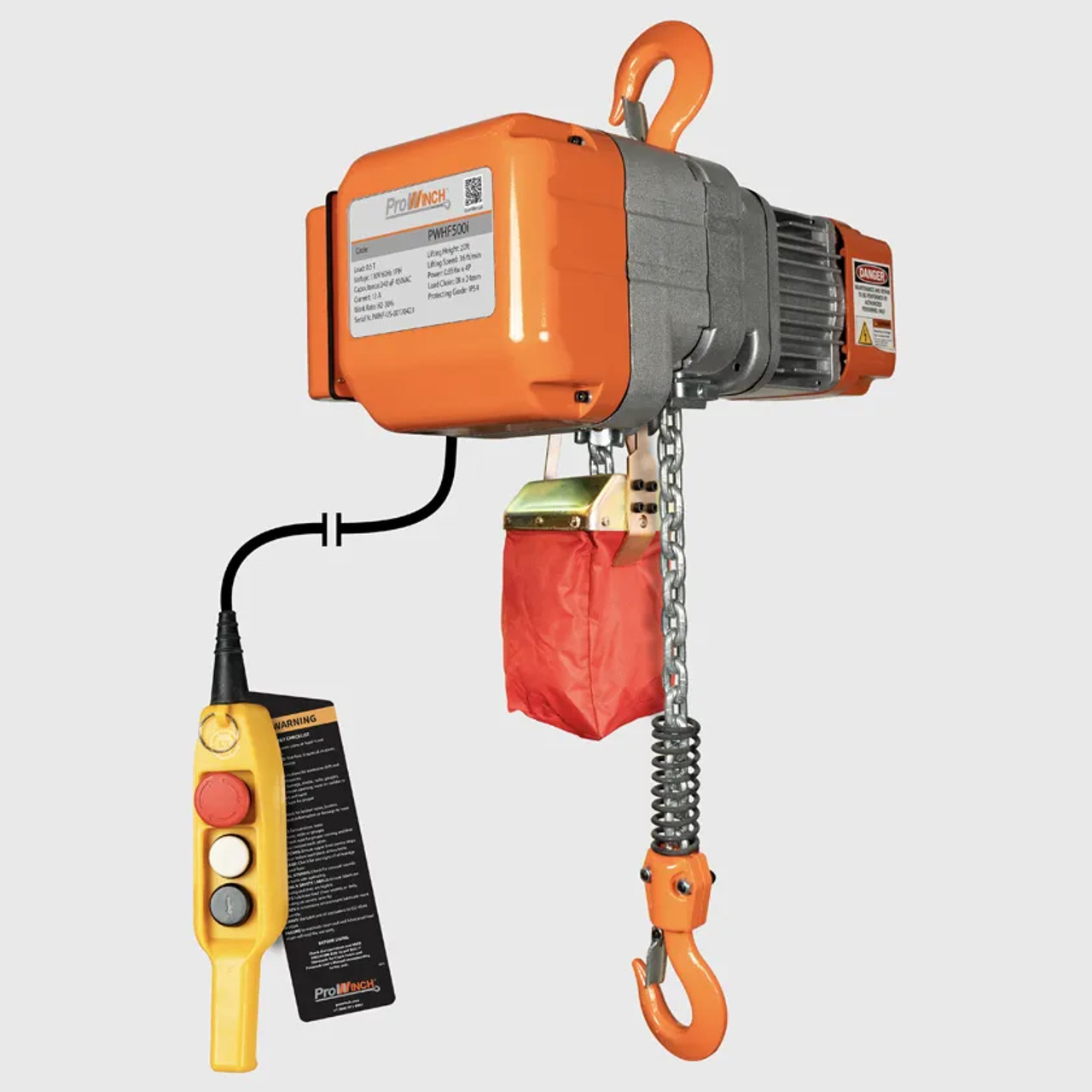

Product Description
Key Points:
| MRC Rated Capacity | 1100 lb / 500 kg |
| Voltage | 1 Phase 220~240V 50/60Hz |
| Duty Class | H2/M3/1Bm/Class B |
| Load Chain Type | 1.4KG/M |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control and Optional Wireless |
Key Features:
- H2/M3/1Bm/Class A duty cycle classification applies to lifting equipment used in light manufacturing, service, and maintenance tasks in machinery workshops, operating up to 7.5 minutes per hour with a maximum of 75 starts, a 12.5% operational time factor (K = 0.65), and a life expectancy of 2,500 hours
- Heavy Duty Control System Powered by 12 TECO 12 AMP Yes DC Electromagnetic no a powerful 0.65 kW Motor with IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16, EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 1100 lb / 500 kg | Brake Resistor Kw | no |
| Number of Speeds | 1 Speed | Motor Power | 0.65 kW |
| Duty Class | H2/M3/1Bm/Class B | Motor AMP | 4 |
| Standard Lifting Height | 50 ft / 15 m | Motor Insulation Grade | F |
| Voltage | 1 Phase 220~240V 50/60Hz | Dynamic Brake | G80 |
| Speed (f/m) / min | 16 ft / 5 m | Brake rectifiers-half-wave | 2.5t |
| Wireless Control | No | Brake rectifiers-full-wave | 101KN |
| Pendant Control Included | included | Load Chain Type | 1.4KG/M |
| Pendant Control Emergency Stop | yes | Load Chain Size | 9.6x24 mm |
| IEC Pendant Control IP Protection | IP65 | Hoist Reducer | 0.65kw |
| Pendant Control cable length | 5m | Hoist Contactor Coil Voltage | B |
| Control Voltage | 24V | Noise Level | 70 dB |
| Control Included | Pendant Control and Optional Wireless | Temperature | no |
| Contactor Brand | TECO 12 AMP | Explosion Proof Protection | CE |
| Output Contactor Capacity | 5.5KW | Standards Compliance | ASME HST-1 , ASME B30.16, EN60204-32 |
| Contactors Amps | 12 | Warranty | 1 Year |
| Manufacturer | no | 1st Package Type | wooden box |
| Model | no | Emergency Stop | Yes |
