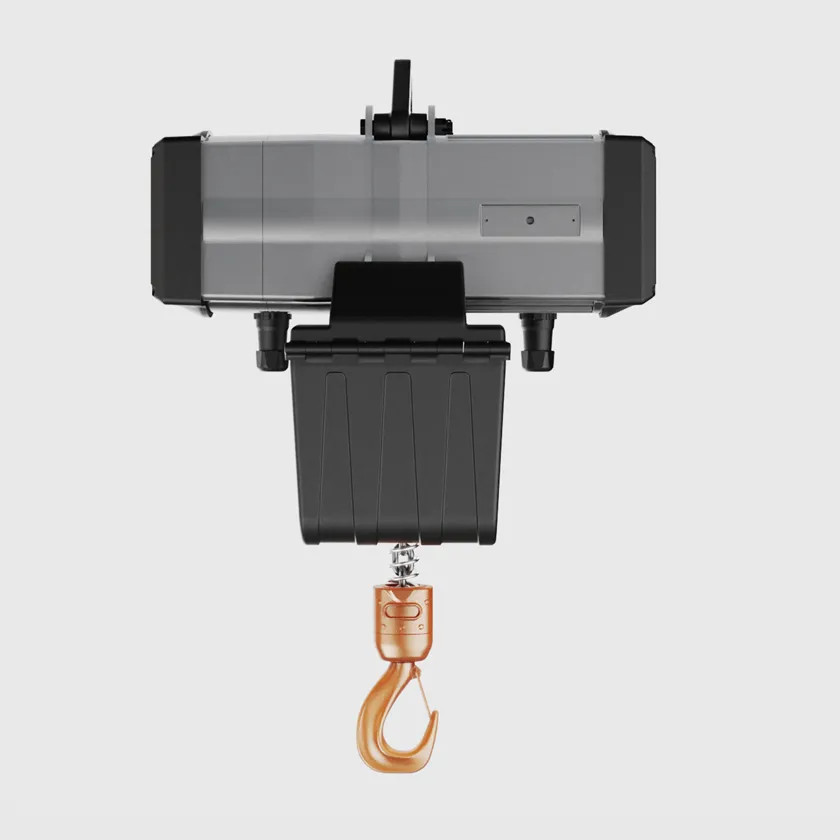

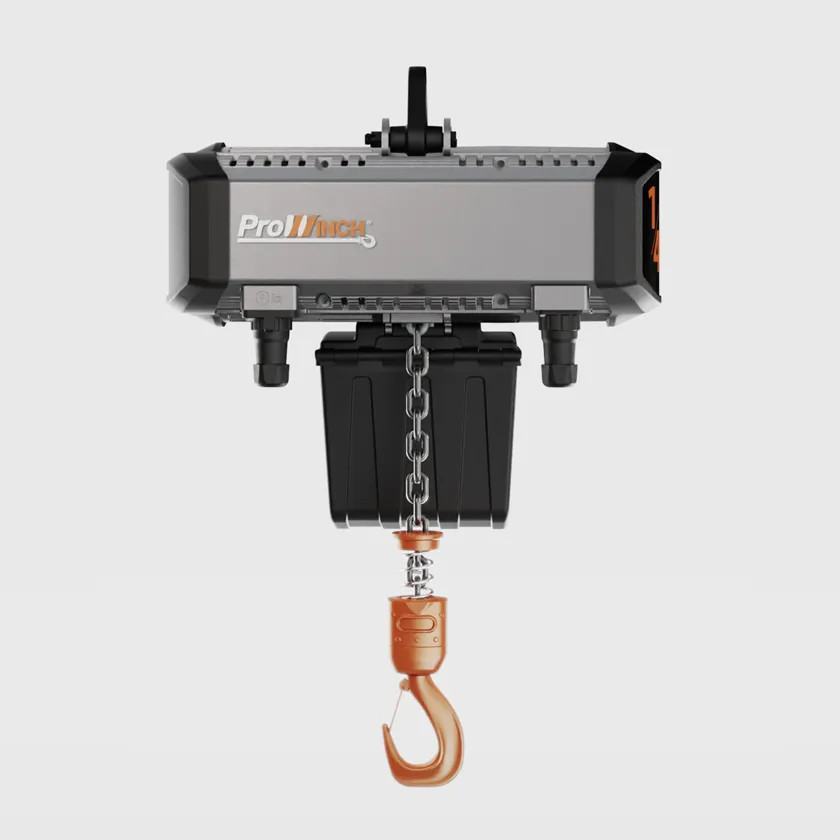

Product Description
Key Points:
| MRC Rated Capacity | 1/4 ton |
| Voltage | 3 Phase 208~240V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G100 Nikel |
| Number of Speeds | 2 Speed |
| Control Included | Pendant Control IP66 |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by 10A Schneider UL Listed Contactors a powerful 0.5 Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , EN60204-36 , ,
Technical Specifications:
| MRC Rated Capacity | 1/4 ton | Chain Length (ft) | 13 |
| Number of Speeds | 2 Speed | Hoist Contactor Coil Voltage | 48V |
| Duty Class | H4/M5/2m/Class D | IEC Hoist IP Protection | IP55 |
| Standard Lifting Height | 13 ft / 4 m | Hoist Motor Power in KW | 0.5 |
| Voltage | 3 Phase 208~240V 50/60Hz | Hoist Motor Brake Type and DC Voltage | DC99V |
| Speed (f/m) / min | 1 st speed : (11.81 ft @60Hz - 3 mt @50Hz) / 2 nd speed : (37.79 ft @60Hz - 9.6 mt @50Hz) | Hoist Motor Insulation Grade | F |
| Pendant Control Included | Included | Recommended Hoist Protection Circuit Breaker AMPs and Type | Type D 15A at 220V and 10A at 460V |
| Pendant Control Emergency Stop | Yes | Overload Protection | Overload Motor Clutch |
| IEC Pendant Control IP Protection | IP66 | Optional Load Chain Brand & Country of Origin | FEC Japan |
| Control Voltage | 48V | Total Power Watts | 500 |
| Control Included | Pendant Control IP66 | Transmission / Reducer Type | Spur gearbox |
| Contactor Brand | Schneider | Reducer Lubrication Type | Oil |
| Contactors Amps | 10A | Paint Specifications | Electrostatic Sprayed Plastic (ESP) Epoxy resins, Polyester Resins, Barium, Pigments |
| Hour Meter | Internal Working Hour Meter | Humidity | 20%~90% |
| Motor Model | TEFC | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Power Cord Length and Phase Order | 3 ft / Black L1 , Red L2 and Blue L3?Green ground | IEC Motor Protection | IP55 |
| Brake rectifiers-half-wave | PWRX-BKTF-HW | Standards Compliance | ASME HST-1 , ASME B30.16 , EN60204-36 |
| Brake rectifiers-full-wave | PWRX-BKTF-FW | UL Components | UL Listed Contactors |
| Load Chain Type | G100 Nikel | Warranty | 3 Year |
| Load Chain Size | 5mm | 1st Package Type | Wood Crate |
| Load Chain weight per foot [lbs] | 0.36 | Emergency Stop | Yes |
| Rig Chain Falls / Lines | 1 |
