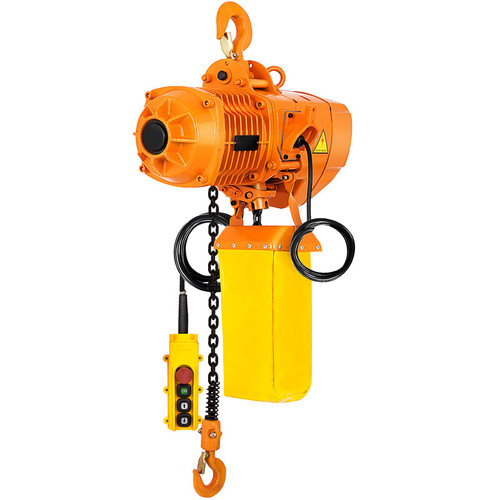

Product Description
Key Points:
| MRC Rated Capacity | 2200 lb / 1000 kg |
| Voltage | 1 Phase 110~120V 60Hz |
| Duty Class | H2/M3/1Bm/Class B |
| Load Chain Type | G80 |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control and Optional Wireless |
Key Features:
- H2/M3/1Bm/Class A duty cycle classification applies to lifting equipment used in light manufacturing, service, and maintenance tasks in machinery workshops, operating up to 7.5 minutes per hour with a maximum of 75 starts, a 12.5% operational time factor (K = 0.65), and a life expectancy of 2,500 hours
- Heavy Duty Control System Powered by TECO 12 AMP a powerful 0.75 kW Motor with IP54IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , EN14492-2 , EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 2200 lb / 1000 kg | Load Chain Type | G80 |
| Number of Speeds | 1 Speed | Load Chain Size | 8x24 mm |
| Duty Class | H2/M3/1Bm/Class B | Rig Chain Falls / Lines | 2 |
| Standard Lifting Height | 20 ft / 6 m | Chain Length (ft) | 40 ft / 12 m |
| Voltage | 1 Phase 110~120V 60Hz | Total Power Watts | 750W |
| Speed (f/m) / min | 8 ft / 2.5 m | Noise Level | 70 dB |
| Control Voltage | 24V | Humidity | <85% |
| Control Included | Pendant Control and Optional Wireless | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Contactor Brand | TECO 12 AMP | IEC Motor Protection | IP54 |
| Motor Power | 0.75 kW | Standards Compliance | ASME HST-1 , ASME B30.16 , EN14492-2 , EN60204-32 |
| Motor AMP | 8 | Warranty | 3 Year |
| Motor Insulation Grade | F | Emergency Stop | Yes |
| Motor Brake | Yes |
