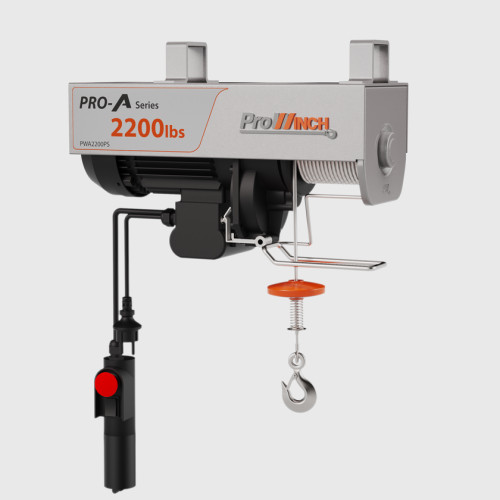

Product Description
Key Points:
| MRC Rated Capacity | 1 t / 2200 lb |
| Voltage | 1 Phase 110~120V 60Hz |
| Number of Speeds | 1 Speed |
| Duty Class | H3/M4/1Am/Class C |
| Control Included | Pendant Control w/ E. Srop |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered By a powerful 1500 Watts Motor with IP54IEC Motor Protection
- Standards Compliance and or Certifications ASME/ANSI B30.16 , C/ETL CSA C22.2#33:2019 Ed.4 ,
Technical Specifications:
| MRC Rated Capacity | 1 t / 2200 lb | Motor Insulation Grade | B |
| Number of Speeds | 1 Speed | Motor Brake | Yes |
| Duty Class | H3/M4/1Am/Class C | Reducer Brake | No |
| Standard Lifting Height | 40 ft / 12 m | Load Chain Type | N/A |
| Voltage | 1 Phase 110~120V 60Hz | Wire Rope Included | 40 ft x 6.0mm 19x7 |
| Speed (f/m) / min | single line-26.2 ft/min, doubl line-13.1 ft/min | Wire Rope Rig / Falls | 1 and 2 |
| Wireless Control | Optional PWYT-W-SET-2C-IM | Hoist Motor Brake Type and DC Voltage | 1 Motor Brake |
| Full Load Duty Cycles | 8000 | Hoist Limit Switches | Up and Down |
| IEC Pendant Control IP Protection | IP54 | IEC Wireless Control IP Protection | IP65 |
| Pendant Control cable length | 7 ft | IEC Electric Enclosure Protection | IP54 |
| Pendant Control w/Quick Connector | No | IEC Motor Protection | IP54 |
| Control Included | Pendant Control w/ E. Srop | Standards Compliance | ASME/ANSI B30.16 |
| Motor Model | Induction motor | Standards Certified | C/ETL CSA C22.2#33:2019 Ed.4 |
| Motor Power | 1500 Watts | Warranty | 3 Year |
| Motor AMP | 13.8 | Portable Case | No |
| Motor RPM | 3450 |
