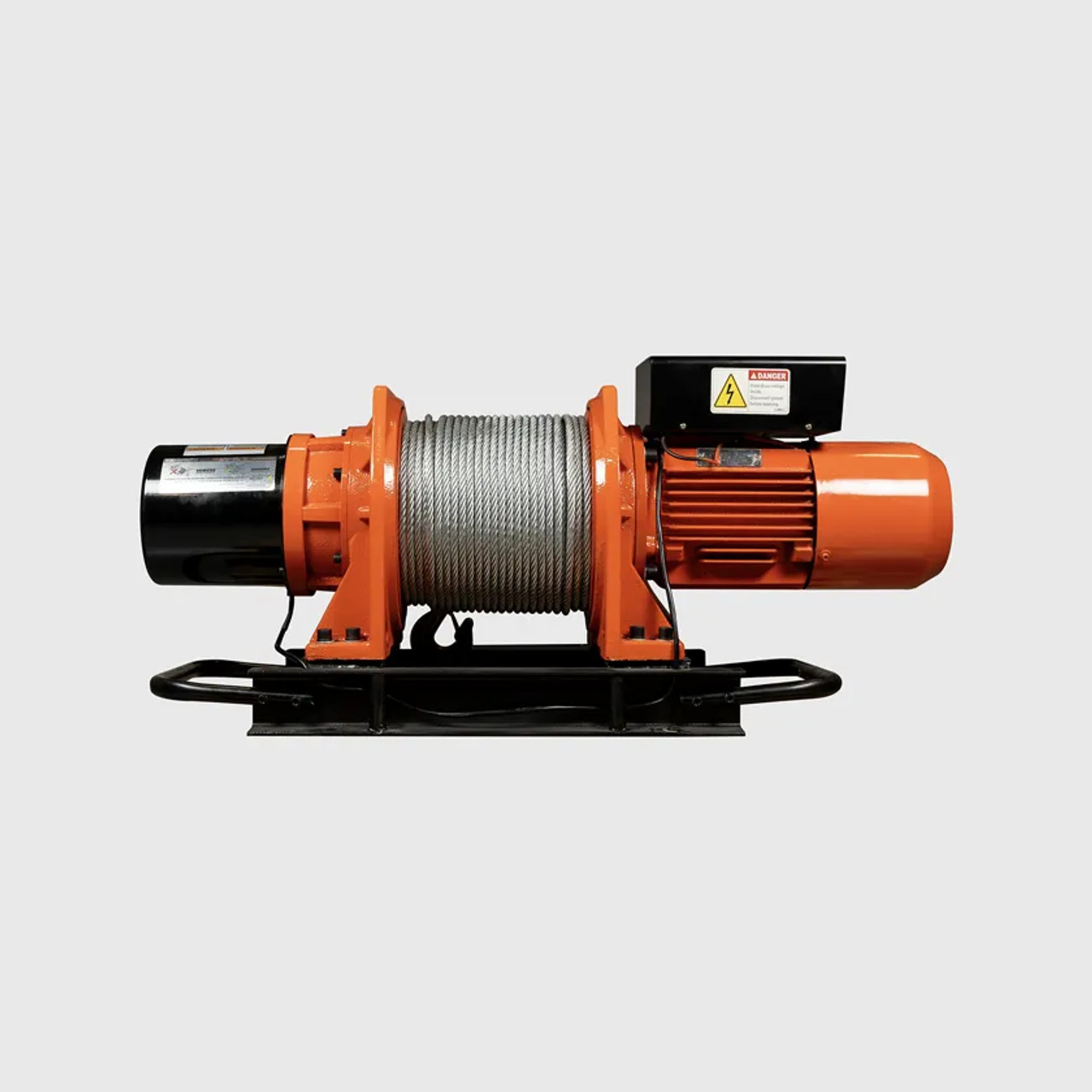

Product Description
Key Points:
| MRC Rated Capacity | 1 t / 2200 lb |
| Voltage | 3 Phase 220~240/440~480V 60Hz |
| Speed (f/m) / min | 40~58 ft / 13~18 m/min |
| Number of Speeds | 1 Speed - Optional Variable Speed |
| Control Included | E-Stop/Up/Down - Optional Variable Speed |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Control System Powered By High Performance Contactors with a powerful 3 kW Motor with IP54IEC Motor Protection
- Standards Compliance and or Certifications ASME/ANSI B30.7, B30.10 / AWS D14.3 / RR-W-410E / ISO 2232 , ,
Technical Specifications:
| MRC Rated Capacity | 1 t / 2200 lb | Drum Brake | Optional |
| Number of Speeds | 1 Speed - Optional Variable Speed | Wire Rope Included | ø3/8 in x 328 ft | ø9.5 mm x 100 m |
| Standard Lifting Height | Up to 328 ft / 100 m | 1st Layer MRC Capacity | 2846 lb / 1291 kg |
| Voltage | 3 Phase 220~240/440~480V 60Hz | Humidity | <85% |
| Speed (f/m) / min | 40~58 ft / 13~18 m/min | IEC Electric Enclosure Protection | IP65 |
| Control Voltage | 24V | IEC Motor Protection | IP54 |
| Control Included | E-Stop/Up/Down - Optional Variable Speed | Standards Compliance | ASME/ANSI B30.7, B30.10 / AWS D14.3 / RR-W-410E / ISO 2232 |
| Motor Model | Electric AC | Warranty | 3 Year |
| Motor Power | 3 kW |
