Product Description
Key Points:
| MRC Rated Capacity | 1/2 t / 1100 lb |
| Voltage | Milwaukee 18V |
| Number of Speeds | 1 Speed |
| Duty Class | H3/M4/1Am/Class C |
| Control Included | Pendant Control w/ E. Srop |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered By a powerful 380 Motor with IP54IEC Motor Protection
- Standards Compliance and or Certifications ASME/ANSI B30.16 , CE / EMC EN ISO 12100, EN 14492-2, EN 60204-32, 2006/42/EC ,
Technical Specifications:
| MRC Rated Capacity | 1/2 t / 1100 lb | Motor Brake | Yes |
| Number of Speeds | 1 Speed | Reducer Brake | Yes |
| Duty Class | H3/M4/1Am/Class C | Load Chain Type | N/A |
| Standard Lifting Height | 40 ft / 12 m | Wire Rope Included | 40 ft x 3.5 mm 19x7 |
| Voltage | Milwaukee 18V | Wire Rope Rig / Falls | 1 and 2 |
| Speed (f/m) / min | single line-11.5 ft/min, doubl line-5.8 ft/min | Hoist Motor Brake Type and DC Voltage | Electronic brake and Mechanical brake |
| Wireless Control | PWYT-W-SET-2C-BM | Hoist Limit Switches | Up and Down |
| Full Load Duty Cycles | 4000 | IEC Wireless Control IP Protection | IP65 |
| IEC Pendant Control IP Protection | IP23 | Power Battery Location | Pendant Control and/or Hoist Housing |
| Pendant Control cable length | 5 ft | Power Battery Voltage | 18V |

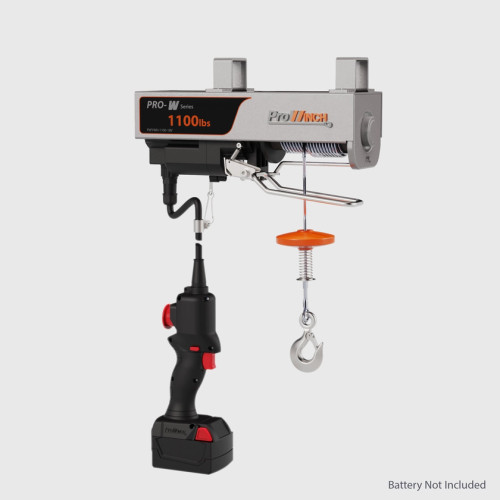

| Pendant Control w/Quick Connector | Yes | Power Battery Model | Milwaukee M18 (Not Included) |
| Control Included | Pendant Control w/ E. Srop | IEC Electric Enclosure Protection | IP23 |
| Motor Model | Brushless motor | IEC Motor Protection | IP54 |
| Motor Power | 380 | Standards Compliance | ASME/ANSI B30.16 |
| Motor AMP | 21 | Standards Certified | CE / EMC EN ISO 12100, EN 14492-2, EN 60204-32, 2006/42/EC |
| Motor RPM | 12500 | Warranty | 3 Year |
| Motor Insulation Grade | B | Portable Case | No |
