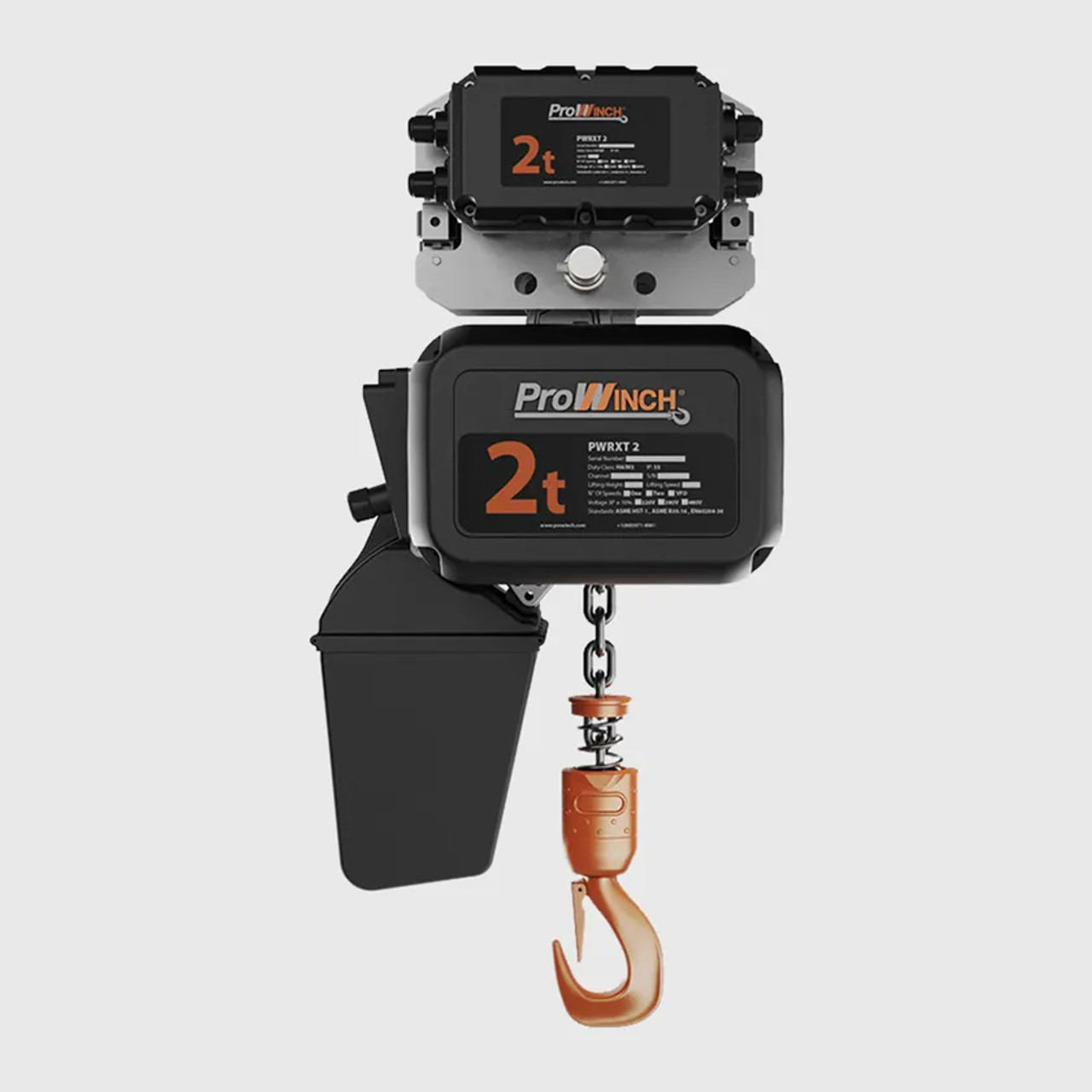

Product Description
Key Points:
| MRC Rated Capacity | 2 ton |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G100 Nickel |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control IP66 |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by 25A Schneider a powerful 3 Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , B30.17 , EN60204-34 , ,
Technical Specifications:
| MRC Rated Capacity | 2 ton | Overload Protection | Overload Motor Clutch |
| Number of Speeds | 1 Speed | Optional Load Chain Brand & Country of Origin | FEC Japan |
| Duty Class | H4/M5/2m/Class D | Total Power Watts | 4000 |
| Standard Lifting Height | 20 ft / 6 m | Transmission / Reducer Type | Spur gearbox |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Reducer Lubrication Type | Oil |
| Speed (f/m) / min | 26.77 ft @60Hz <br> 6.80 mt @50Hz | Trolley Speed /min | 43.30 ft @60Hz <br> 11 mt @50Hz |
| Pendant Control Included | Yes | Trolley Number of Speeds | 1 |
| Pendant Control Emergency Stop | Yes | Trolley Power | 500 |
| IEC Pendant Control IP Protection | IP66 | Trolley Motor Brake Type and DC Voltage | DC99V/DC207V |
| Control Voltage | 24V | Trolley Motor Insulation Grade | F |
| Control Included | Pendant Control IP66 | Trolley Contactors Amps | 32A |
| Contactor Brand | Schneider | Trolley Contactors Brand | Schneider |
| Contactors Amps | 25A | Trolley Contactors Coil Voltage | 24 V |
| Hour Meter | Internal Working Hour Meter | Trolley Wheel Diameter | 110 |
| Power Cord Length and Phase Order | 3 ft / Black L1 , Red L2 and Blue L3?Green ground | Trolley Wheel Material | No. 45 steel |
| Brake rectifiers-half-wave | PWRX-BKTF-HW | Trolley Minimum Turn Radius | 1.5 |
| Brake rectifiers-full-wave | PWRX-BKTF-FW | Trolley Beam Range | 3" to 7" |
| Load Chain Type | G100 Nickel | Trolley Beam Extension Kit | up to 12" |
| Load Chain Size | 10 mm | Paint Specifications | Electrostatic Sprayed Plastic (ESP) Epoxy resins, Polyester Resins, Barium, Pigments |
| Load Chain weight per foot [lbs] | 1.48 | Humidity | 20%~90% |
| Rig Chain Falls / Lines | 1 | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Chain Length (ft) | 20 | IEC Motor Protection | IP55 |
| Hoist Contactor Coil Voltage | 24 V | Standards Compliance | ASME HST-1 , ASME B30.16 , B30.17 , EN60204-34 |
| IEC Hoist IP Protection | IP55 | Warranty | 3 Year |
| Hoist Motor Power in KW | 3 | 1st Package Type | Wood Crate |
| Hoist Motor Brake Type and DC Voltage | DC99V/DC207V | 2nd Package Type | Wood Crate |
| Hoist Motor Insulation Grade | F | Emergency Stop | Yes |
| Recommended Hoist Protection Circuit Breaker AMPs and Type | Type D 25A at 220V and 20A at 460V |
