Product Description
Key Points:
| MRC Rated Capacity | 200Kg @ 2 lines | 100Kg @ 1 line |
| Voltage | 1 Phase 220~240V 50/60Hz |
| Number of Speeds | 1 Speed |
| Duty Class | H1/M2/1Cm/Class A |

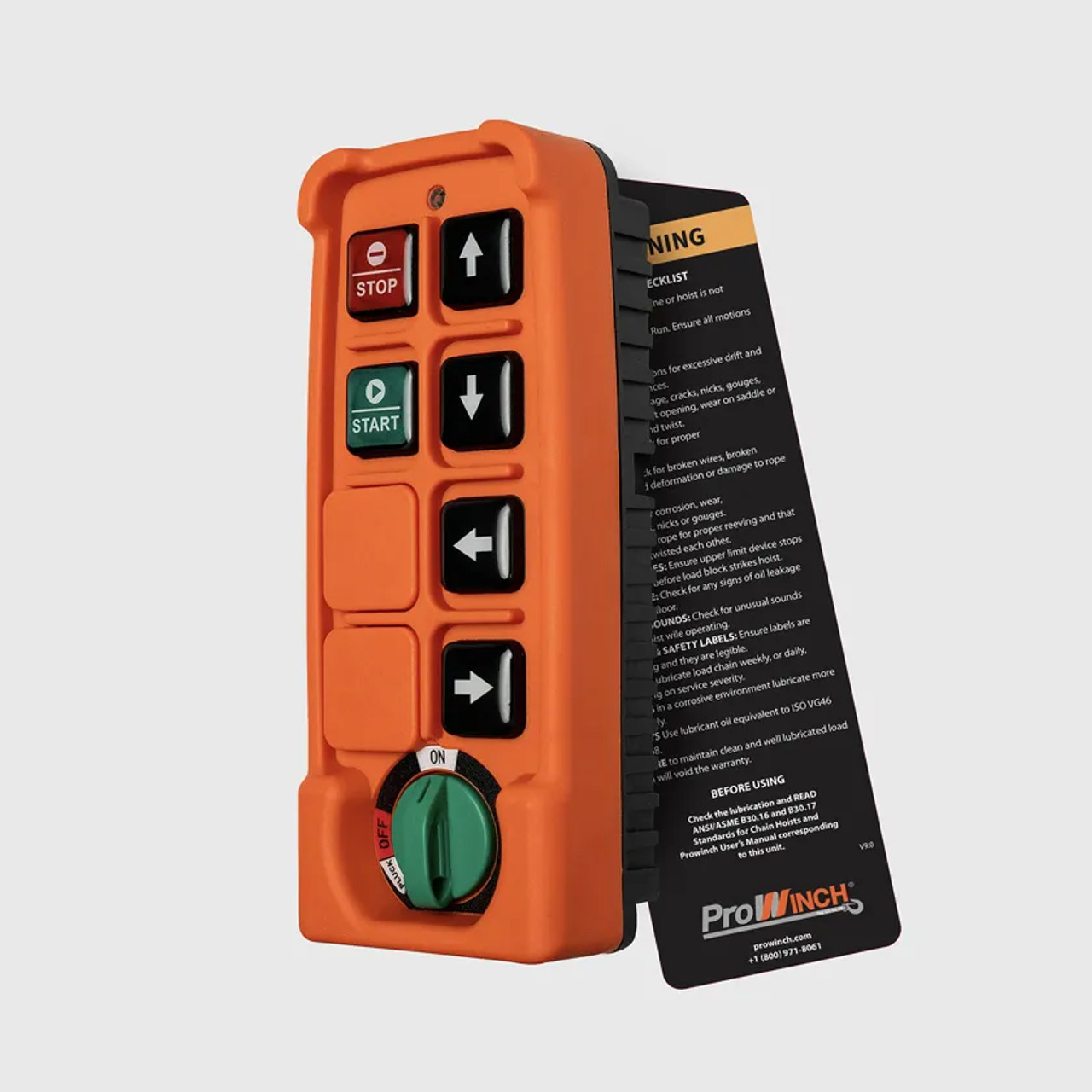

| Control Included | Wireless F21 Remote Control |
Key Features:
- H1/M2/1Cm/- duty cycle classification describes lifting equipment used infrequently for installing and maintaining heavy equipment, operating up to 7.5 minutes per hour with a maximum of 75 starts, a 12.5% operational time factor (K = 0.65), and a life expectancy of 1,250 hours.
- Standards Compliance and or Certifications ASME HST-4 , ASME B30.16 , B30.17 , EN14492-2 , EN60204-32 , Intertek 4006091 , EN 55014-1:2017, EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 ,
Technical Specifications:
| MRC Rated Capacity | 200Kg @ 2 lines | 100Kg @ 1 line | Wire Rope Included | ø1/8 in | 3.0 mm |
| Number of Speeds | 1 Speed | FCC Cert ID | OFNF21 |
| Duty Class | H1/M2/1Cm/Class A | Noise Level | 71 dB |
| Standard Lifting Height | 40ft single line / 20ft double line (12m / 6m) | Trolley Speed /min | 52 ft/min / 16 m/min |
| Voltage | 1 Phase 220~240V 50/60Hz | Trolley Number of Speeds | 1 |
| Speed (f/m) / min | 33 ft/10m @1line | 16ft/5m @2line | I-Beam Width Range | 2-4.5 in / 50-114 mm |
| Control Voltage | 220v Receiver / 2 x AA 1,5v Remote | Minimum Turn Radius | 2.62 ft / .8 m |
| Control Included | Wireless F21 Remote Control | Humidity | <85% |
| Motor Model | Squirrel Cage Induction Motor | Temperature | -4°~104° F / -20°~40° C |
| Motor Power | 450 W | IEC Motor Protection | IP40 |
| Motor Insulation Grade | B | Standards Compliance | ASME HST-4 , ASME B30.16 , B30.17 , EN14492-2 , EN60204-32 |
| Motor Brake | YES | Warranty | 1 Year |
