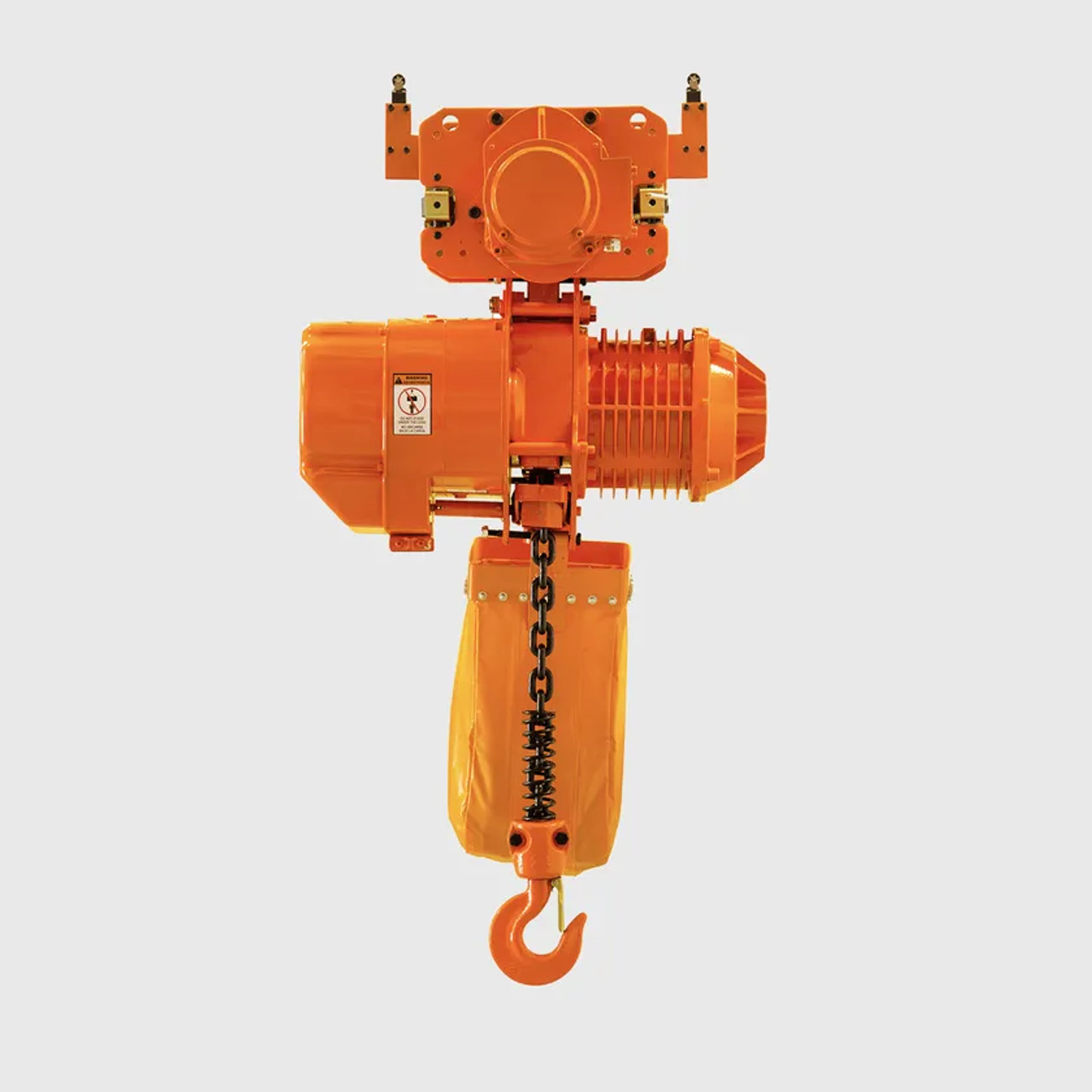

Product Description
Key Points:
| MRC Rated Capacity | 6600 lb / 3000 kg |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H3/M4/1Am/Class C |
| Load Chain Type | G100 |
| Number of Speeds | 2 Speed |
| Control Included | Pendant Control and Optional Wireless |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered by EATON 25 AMP a powerful 3 kW Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , B30.17 , EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 6600 lb / 3000 kg | Chain Length (ft) | 30 ft / 9 m |
| Number of Speeds | 2 Speed | Transmission / Reducer Type | Spur gearbox with Oil splash lubrication |
| Duty Class | H3/M4/1Am/Class C | Noise Level | 81 dB |
| Standard Lifting Height | 30 ft / 9 m | Trolley Speed /min | 36 - 68 ft /11 - 21 m |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Trolley Number of Speeds | 2 |
| Speed (f/m) / min | 7&21ft/2.1&6.4m@60Hz <br> 6&18ft/1.8&5.4m@50Hz | Trolley Power | 0.8 / 0.27 kW |
| Control Voltage | 24V | I-Beam Width Range | 100-178 mm |
| Control Included | Pendant Control and Optional Wireless | Minimum Turn Radius | 3.3 ft / 1 m |
| Contactor Brand | EATON 25 AMP | Humidity | <85% |
| Motor Power | 3 kW | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Motor AMP | 10 / 5 | IEC Motor Protection | IP55 |
| Motor RPM | 3456 & 1152@60Hz / 2880 & 960@50Hz | Standards Compliance | ASME HST-1 , ASME B30.16 , B30.17 , EN60204-32 |
| Motor Insulation Grade | F | Warranty | 3 Year |
| Motor Brake | Yes | T Trolley Motor Width | 5.6 in / 142 mm |
| Load Chain Type | G100 | R Trolley Cover Width | 9 in / 231 mm |
| Load Chain Size | 11.2 x 34 mm | Emergency Stop | Yes |
| Rig Chain Falls / Lines | 1 |
