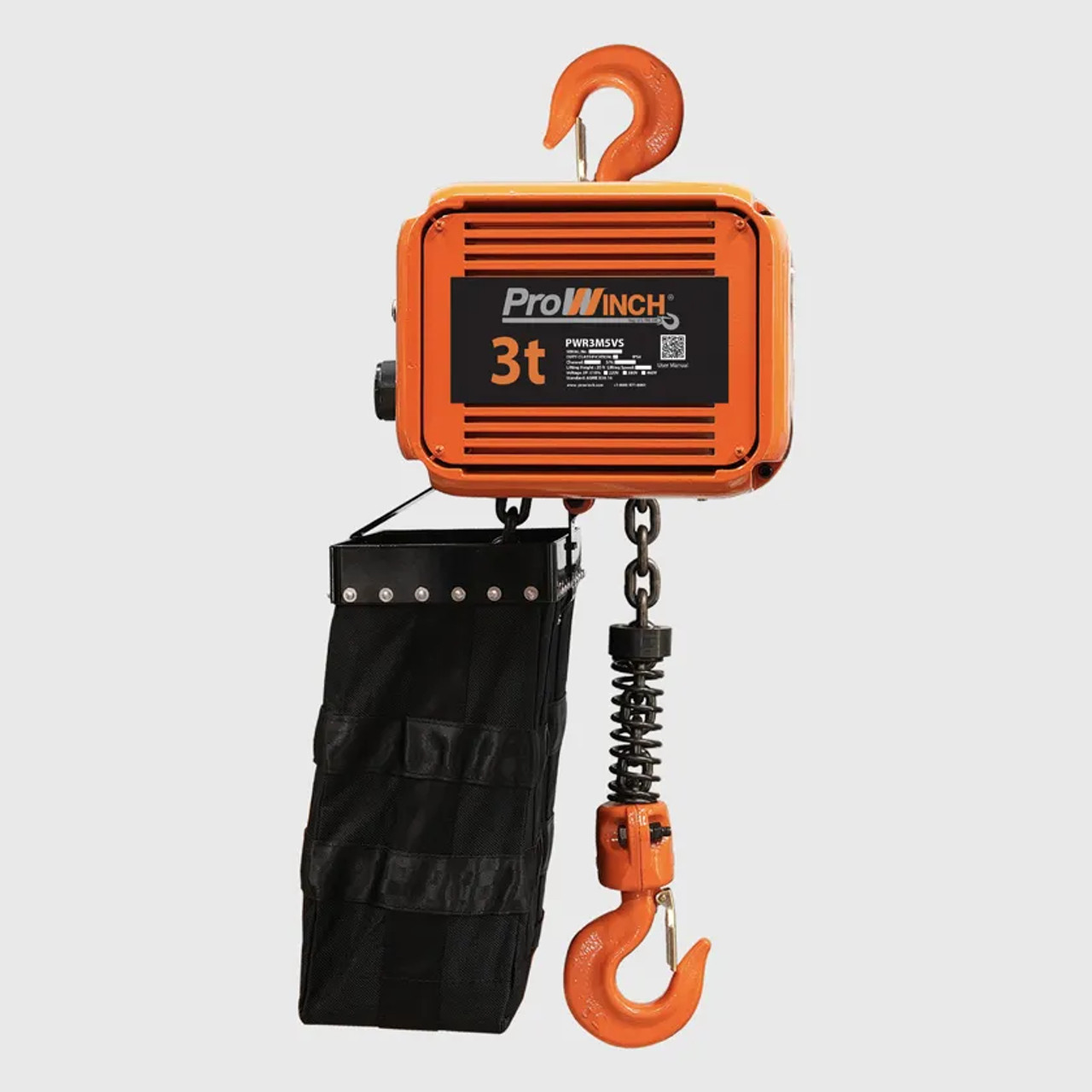

Product Description
Key Points:
| MRC Rated Capacity | 6600 lb / 3000 kg |
| Voltage | 3 Phase 380~480V 50/60Hz |
| Duty Class | H4/M6/3m/Class D |
| Load Chain Type | FEC G80 Japan |
| Number of Speeds | Variable Speed |
| Control Included | Pendant Control with Potentiometer |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by a powerful Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16, EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 6600 lb / 3000 kg | Load Chain Type | FEC G80 Japan |
| Number of Speeds | Variable Speed | Load Chain Size | 11.2 x 34 mm |
| Duty Class | H4/M6/3m/Class D | Rig Chain Falls / Lines | 1 |
| Standard Lifting Height | 20 ft / 6 m | Chain Length (ft) | 30 ft / 9 m |
| Voltage | 3 Phase 380~480V 50/60Hz | Transmission / Reducer Type | Spur gearbox with Oil splash lubrication |
| Pendant Control Included | Included | Noise Level | 81 dB |
| Pendant Control Emergency Stop | Yes | Humidity | <85% |
| IEC Pendant Control IP Protection | IP66 | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Control Voltage | 24V | IEC Motor Protection | IP55 |
| Control Included | Pendant Control with Potentiometer | Standards Compliance | ASME HST-1 , ASME B30.16, EN60204-32 |
| Motor Model | TEFC | Warranty | 3 Year |
| Motor Insulation Grade | F | Emergency Stop | Yes |
| Motor Brake | Yes DC Electromagnetic | Variable Fequency Driver | 3.7KW VFD, Delta model: VFD9A0MS43ANSAA |
