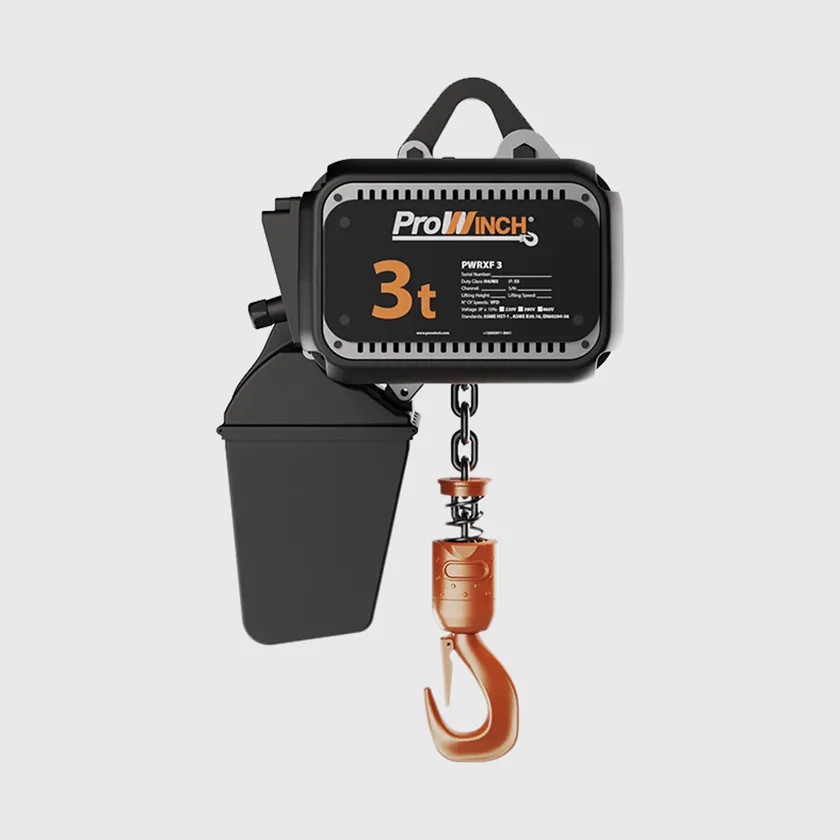

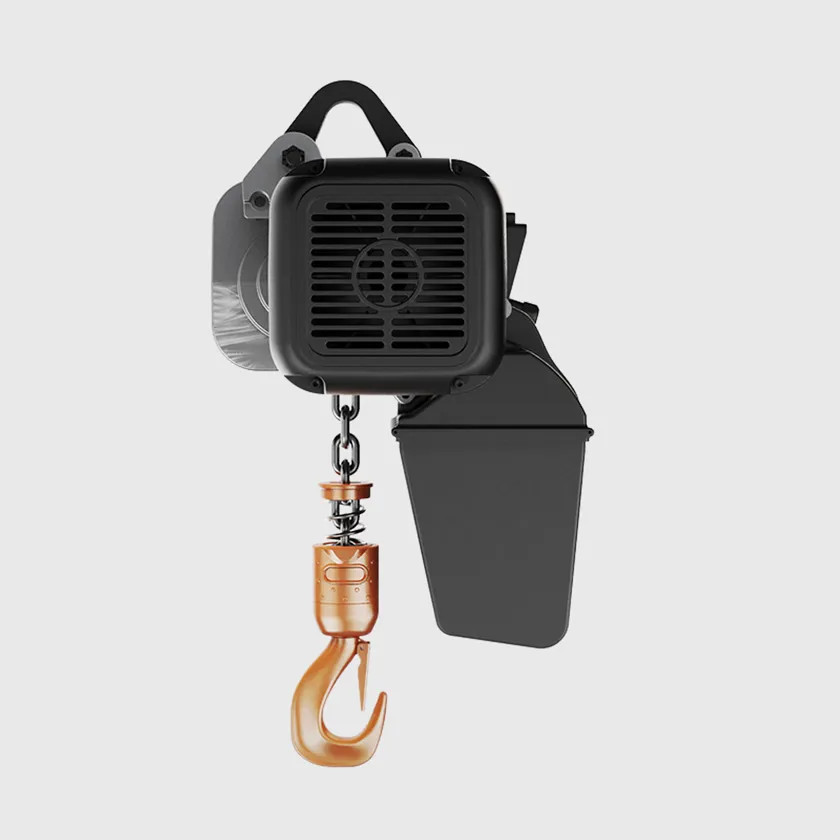

Product Description
Key Points:
| MRC Rated Capacity | 3 ton |
| Voltage | 3 Phase 440~480V 60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G100 Nikel |
| Number of Speeds | Variable Speed |
| Control Included | Pendant Control IP66 |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by 4kW VFD Z230 a powerful 3 Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , EN60204-35 , ,
Technical Specifications:
| MRC Rated Capacity | 3 ton | Rig Chain Falls / Lines | 1 |
| Number of Speeds | Variable Speed | Chain Length (ft) | 30 |
| Duty Class | H4/M5/2m/Class D | IEC Hoist IP Protection | IP55 |
| Standard Lifting Height | 30 ft / 9 m | Hoist Motor Power in KW | 3 |
| Voltage | 3 Phase 440~480V 60Hz | Hoist Motor Brake Type and DC Voltage | DC207V |
| Speed (f/m) / min | 2.7~21.2 ft @60Hz <br> mt @50Hz | Hoist Motor Insulation Grade | F |
| Pendant Control Included | Included | Recommended Hoist Protection Circuit Breaker AMPs and Type | Type D 20A |
| Pendant Control Emergency Stop | Yes | Overload Protection | Overload Motor Clutch |
| IEC Pendant Control IP Protection | IP66 | Optional Load Chain Brand & Country of Origin | FEC Japan |
| Control Voltage | 24V | Total Power Watts | 4000 |
| Control Included | Pendant Control IP66 | Transmission / Reducer Type | Spur gearbox |
| Hour Meter | Internal Working Hour Meter | Reducer Lubrication Type | Oil |
| Hoist VFD Power | 4kW VFD | Paint Specifications | Electrostatic Sprayed Plastic (ESP) Epoxy resins, Polyester Resins, Barium, Pigments |
| Manufacturer | HUAYUAN | Humidity | 20%~90% |
| Model | Z230 | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Brake Resistor Kw | 1Kw | IEC Motor Protection | IP55 |
| Power Cord Length and Phase Order | 3 ft / Black L1 , Red L2 and Blue L3?Green ground | Standards Compliance | ASME HST-1 , ASME B30.16 , EN60204-35 |
| Brake rectifiers-half-wave | PWRX-BKTF-HW | Warranty | 3 Year |
| Load Chain Type | G100 Nikel | 1st Package Type | Wood Crate |
| Load Chain Size | 11.2 mm | Emergency Stop | Yes |
| Load Chain weight per foot [lbs] | 1.83 |
