Product Description
The SLAB TRANS HEAVY DUTY conveyor is specially designed for the handling of ceramic sheets and large format tiles up to 320 cm long.
The SLAB TRANS HEAVY DUTY can be used as a complement to the SLIM CUTTER and TC-125 cutting systems.

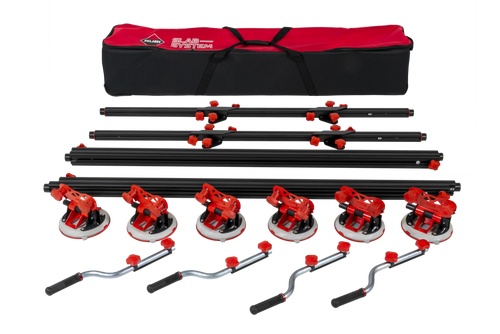

It consists of a set of two reinforced, retractable, extruded aluminum profiles, which are adjustable from 160 to 320 cm, as well as two perpendicular crossbeams that enhance the conveyour's robustness and stability, especially during the handling of the heaviest pieces.
Thanks to the 6 vacuum cups, the setter can adjust the fixing points, ensuring the handling of the porcelain sheets.
For a correct fixation of the system, we must check that the surface of the sheet is clean of dust or other debris.
The set has 4 handles (2 per guide) that can be adjusted and positioned throughout the length of the guide, facilitating and adapting the SLAB TRANS HEAVY DUTY at any moment to any format.
As a part of our strategy, RUBI continuously researches the evolution of materials based on the requirements received by the main manufacturers of ceramic tiles from around the world, as well as input from approximately 30,000 RUBI distributors, and from the more than 40,000 end users registered in Club RUBI.
Thanks to all this, RUBI makes the most complete and adapted range of tools on the market available to the professional ceramic tile installer. Everything that is needed for all phases of the installation of ceramic tile. In addition, in the design of all RUBI products, the RUBI R & D team, made up of engineers and professionals from various parts of the world, has been vital. Receiving information from many parts of the world offers us the possibility of having a global vision of the business and the needs of professionals, heling us to design tools adapted to each market.
Main Features
- 2 perpendicular aluminium guides, retractable from 165 cm to 320 cm.
- 6 vacuum cups Ø20 cm, for any type of surface (3 per profile).
- Equipped with a set of perpendicular crossbars for greater stability.
- Additionally, the SLAB TRANS HD can incorporate additional suction cups (item 18827) to increase its maximum load capacity.
Materials
- Ceramic tile and large-format ceramic tiles.
Use
- Conveyor / frame for the handling of ceramic sheet.
- Ref. - 18936
- EAN-13 - 8413797189360
- Net weight without packaging - 34 kg
- Units per box - 1
- Units per pallet - 6
Replaced by: 18982
