Product Description
Pressure Range: 0-1000 PSI
Model No. Description
97169-01 Gauge / Head
97169-02 Hose Assembly
Eliminates the need to manually record compression test readings for each individual cylinder while performing compression test
Unit is capable of storing test measurements for up to 12 cylinders
Calculates average reading across cylinders, highest cylinder reading and lowest cylinder reading during test
Technician can scroll display to review readings for each cylinder at end of test cycle
Auto-Off function to conserve battery power
Accuracy: +/- 3%, full scale
Units of Measure: PSI, BAR, KPa
Auto-Off function after 5 minutes remaining idle
Backlight: For Backlight "ON", hold FUNCTION button for (3) seconds
Model No. Description
97169-01 Gauge / Head
97169-02 Hose Assembly
Eliminates the need to manually record compression test readings for each individual cylinder while performing compression test
Unit is capable of storing test measurements for up to 12 cylinders
Calculates average reading across cylinders, highest cylinder reading and lowest cylinder reading during test
Technician can scroll display to review readings for each cylinder at end of test cycle
Auto-Off function to conserve battery power
Accuracy: +/- 3%, full scale
Units of Measure: PSI, BAR, KPa
Auto-Off function after 5 minutes remaining idle
Backlight: For Backlight "ON", hold FUNCTION button for (3) seconds

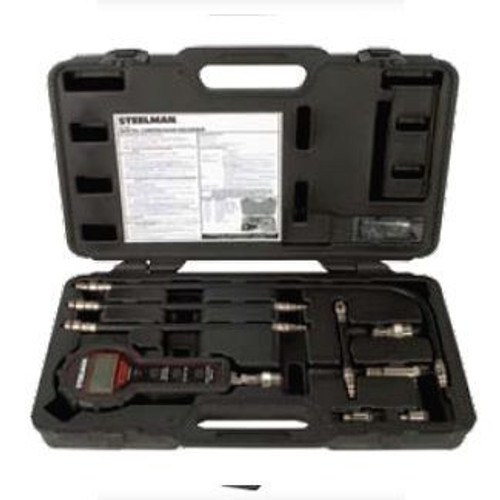

Diesel Compression Recorder
