Product Description
iDEAL, Two Post Clear Floor
- ALI Certified
- 12,000 lbs capacity
- Symmetric Arms
- Rubber Door Guards
- Direct Drive push Cylinders

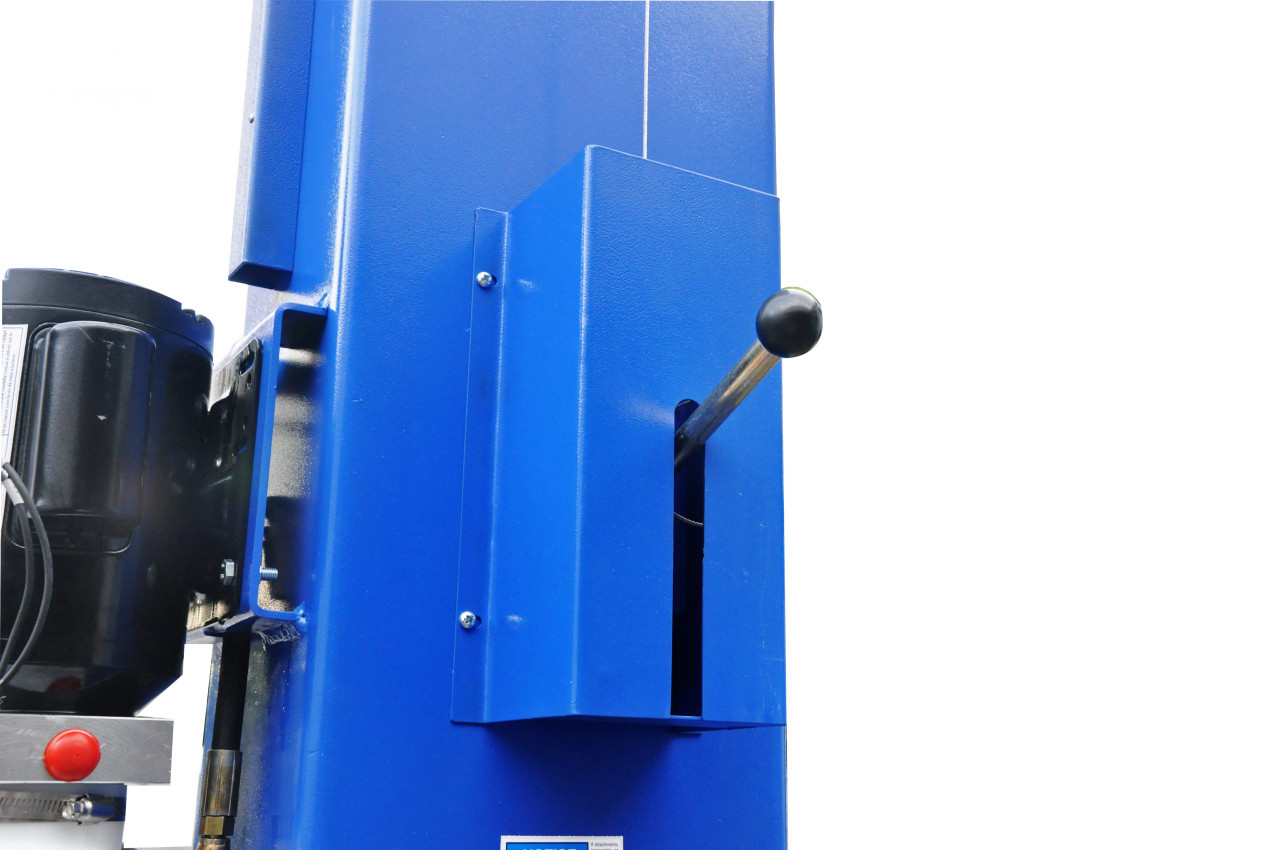

- Single Point Lock Release
- Heavy Duty Arm Restraint System
- Spin Up Lift Pads 5” min. Pad Height
- Stackable Adapters Included
- External hose guards
- Duro Certifed Power Unit – MET, UL, CSA
Specifications
| Lift Model | TP12KSC-DX |
| Capacity | 12,000 lbs. |
| Height Overall | 168-1/2″ |
| Width Overall w/ Power Unit | 151-5/16″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 4-7/8″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8″ – 57″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,295 lbs |
| Power | 220V – 20 AMP – 1 PH |
Other Details
Manufacturer's WarrantyProduct Videos
Custom Field
Flyer Click Here For Flyer
Delivery Time Normally ships within 1-2 days and 7-10 days delivery depending on location and freight company.
