Product Description
- Great Compatibility: The cylinder liner puller is compatible with Mack, Cummins, Volvo, Detroit, and other CAT engines. With the manual liner puller, you can quickly remove the cylinder liner. Besides, its power is evenly distributed and will not cause damage to your cylinder liner.
- Premium Performance & Features: With high working efficiency, this universal liner puller can directly replace PT-6400-C, M50010-B, and 3376015. It can work perfectly on a heavy-duty truck, with wet liners of 3.7" to 6.2" diameter, 15" depth, and 0.15" minimum wall thickness.

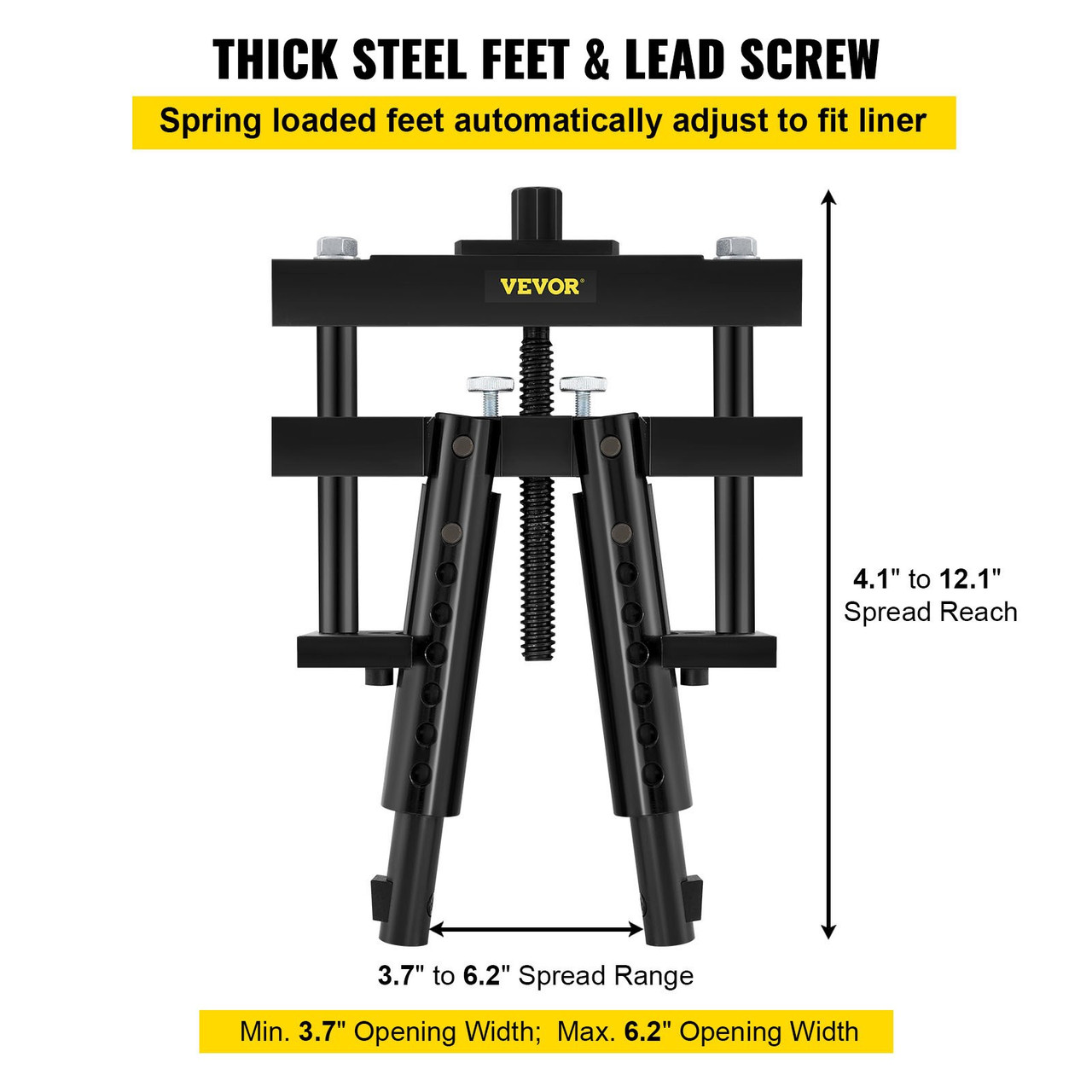

- Spring-loaded Feet Design: Equipped with spring-loaded feet, the puller can automatically be adjusted to fit the liner so that you don't need to operate the swing arms manually. The adjustable spread range is from 3.7 to 6.2 inches, suitable for most wet cylinder liners. Plus, there are 7 holes in the lower leg so that you can adjust the length of the rod according to the depth of the cylinder.

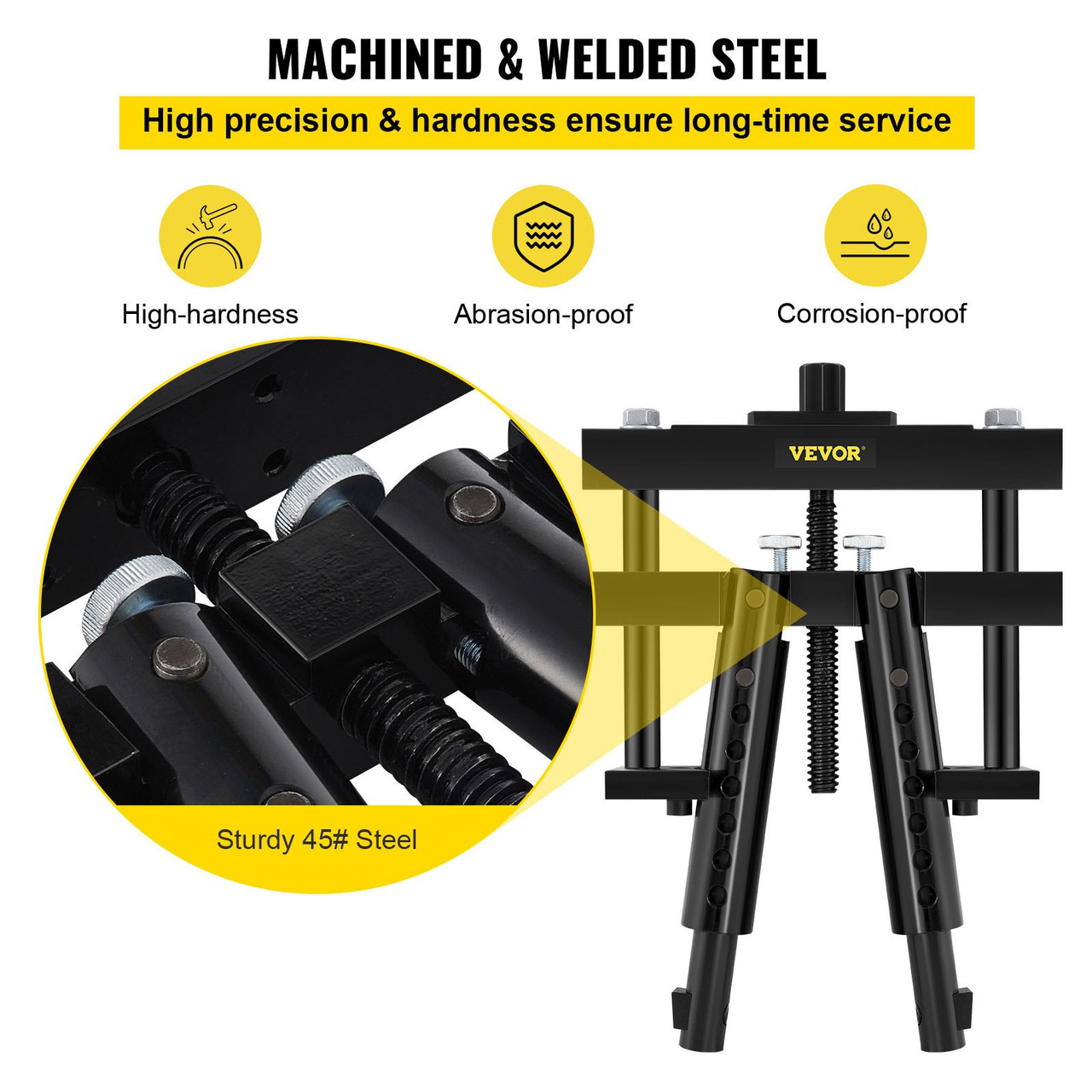

- Superior Material: The universal cylinder puller is made of durable 45# steel, providing good performance to withstand abrasion, corrosion, and impact, which can effectively extend the service life of the cylinder liner puller.

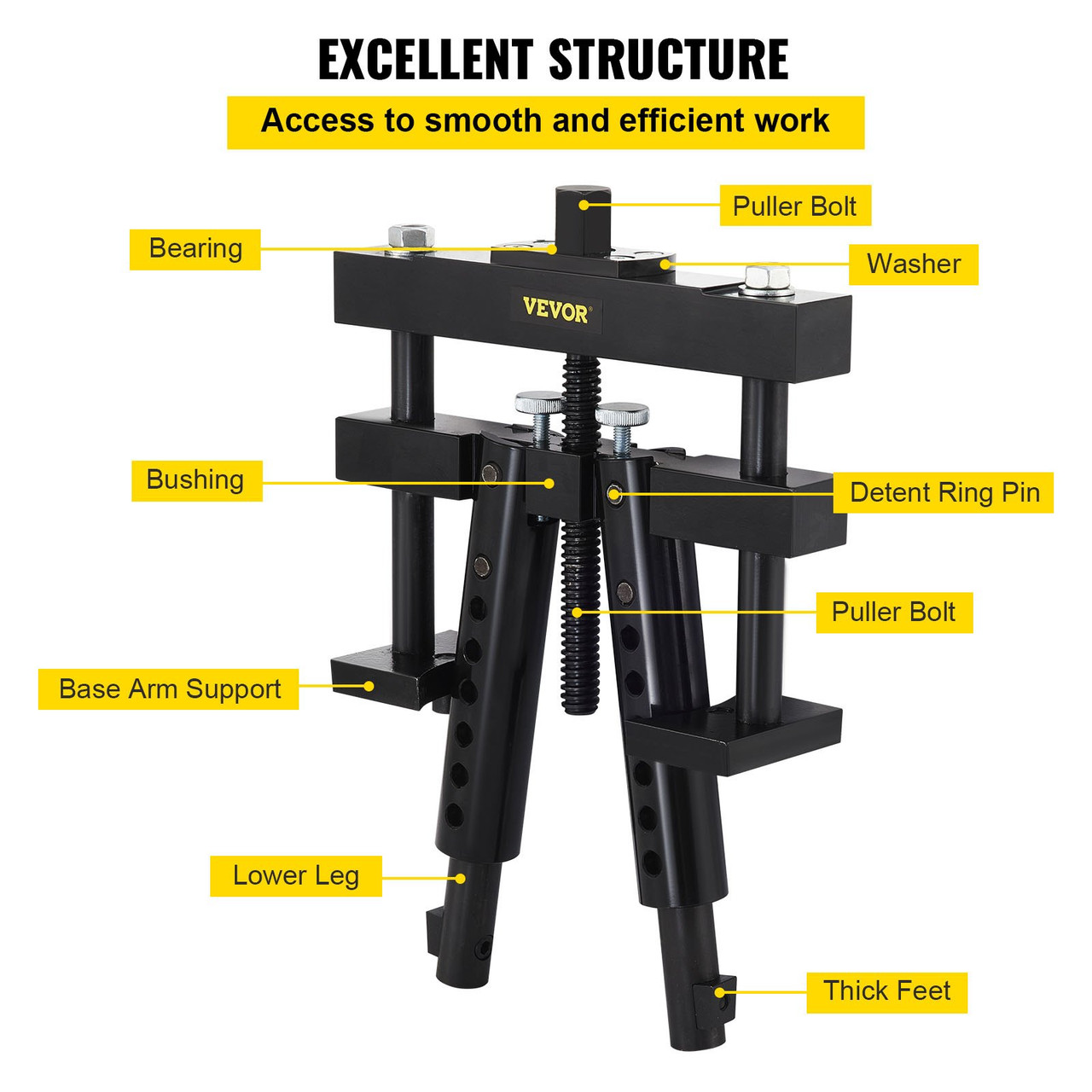

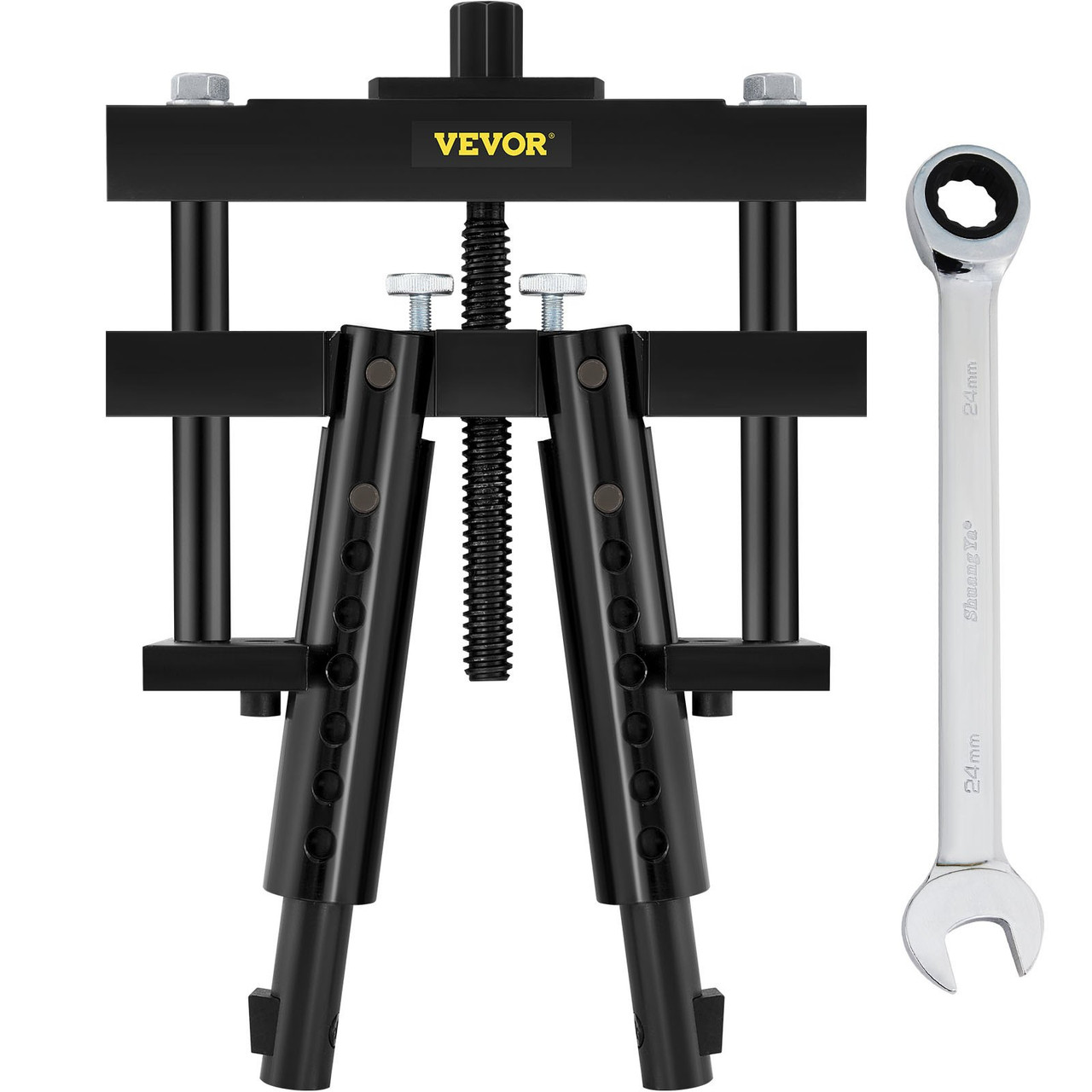

- Reasonable Structure: The universal cylinder puller's structure is very stable and reasonable. There are gaskets, bearings, bushings in the upper part, and detent brake pins in the middle. Besides, two baffles with 0.7 inches thickness are designed on both sides. Plus, We will provide you with a wrench so that you can use it with heavy-duty tools. All these designs are constructed to stabilize the whole puller significantly and help you quickly finish the removal work.
Specifications
- Model: K04T
- Dismantling Size Range: 3.7-6.2 in/ 95-157 mm
- Material: 45# Steel
- Applicable Models: Wet-type Cylinder Liner
- Max. Lead Screw Length: 12.1 in/ 308 mm
- Baffle Thickness: 0.7 in/ 15 mm
- Item Weight: 23.1 lbs/ 10.5 kg
- Item Size: 6.18 x 22.2 x 12.1 in/ 15.7 x 56.5 x 26 cm
