Product Description

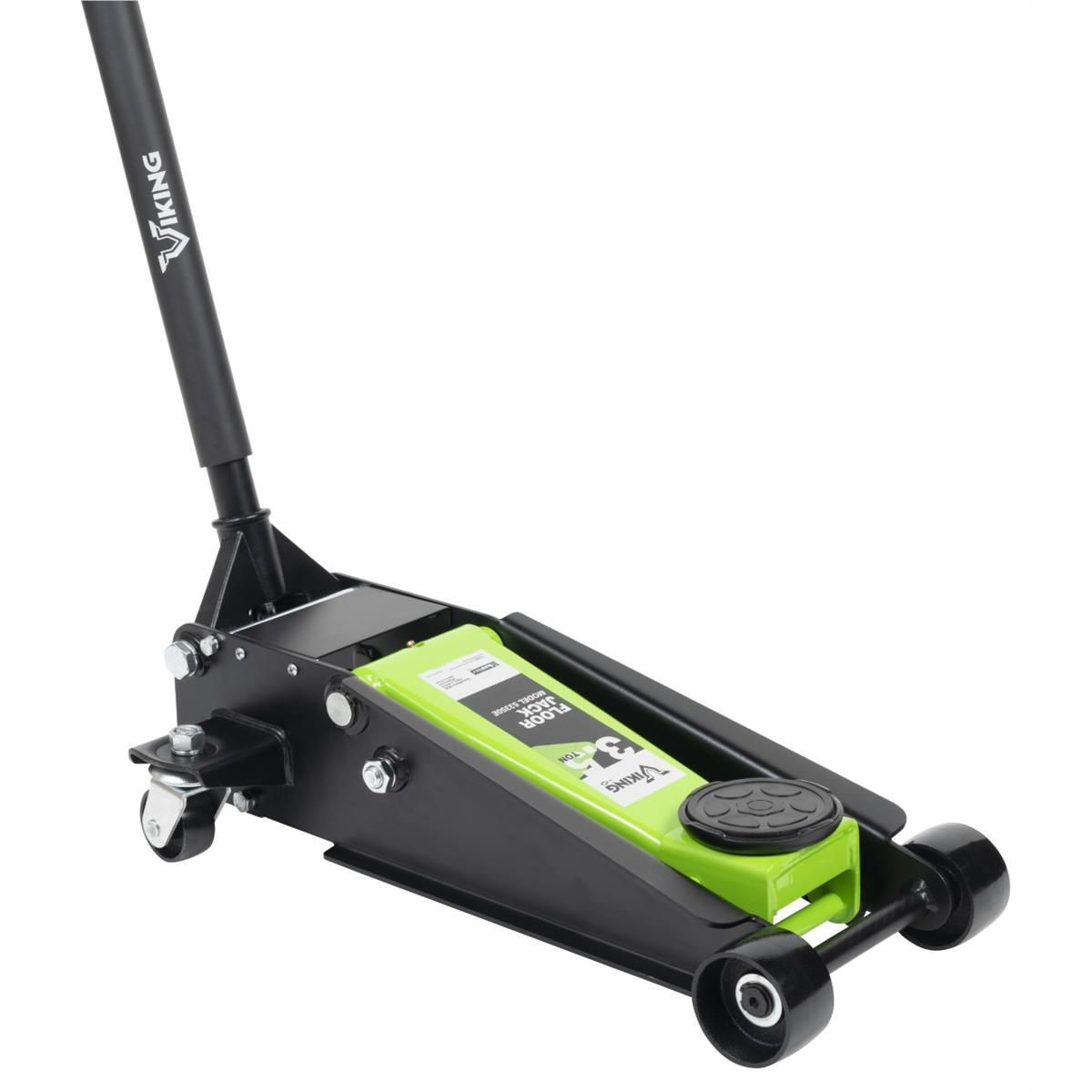

3.5‑Ton Lightning‑Lift Short‑Chassis Service Jack
The INT53350E is a professional‑grade hydraulic floor jack engineered for high‑duty automotive service environments. It combines 3.5‑ton lifting capacity, a short‑chassis design, and AFF’s Lightning™ Lift system, which raises the saddle to load height in a single pump. Built from heavy‑gauge steel with upgraded seals and overload protection, it is designed for long‑term durability in daily shop use.
Key Features
-
3.5‑Ton Capacity — Suitable for trucks, SUVs, and passenger vehicles.
-
Lightning™ Lift System — Single‑piston quick‑lift mechanism raises the saddle to load height in one pump.
-
Short‑Chassis Design — Ideal for tight shop spaces while maintaining full lifting power.
-
Low Profile Start Height — 4.5 in minimum height for easier access under lower vehicles.
-
18.3 in maximum lift height for broad service coverage.
-
Heavy‑Duty Steel Construction — Built for professional technicians and daily shop use.
-
U‑Joint Release Assembly — Provides precise, controlled lowering.
-
Rubber Saddle Pad Included — Protects vehicle lift points.
-
2‑Piece Straight Handle — 45.3 in length with bumper pad for body‑panel protection.
-
Ball‑Bearing Rear Swivel Casters — Improves maneuverability under load.
-
Overload Bypass Valve — Prevents unsafe over‑capacity lifting.
-
ASME/PASE 2019 Certified — Meets or exceeds current safety standards.
-
Service Parts Available — Supports long‑term maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 3.5 Ton |
| Minimum Height | 4.5 in |
| Maximum Height | 18.3 in |
| Chassis Length | 24 in |
| Chassis Width | 13.57 in |
| Handle Length | 45.3 in (2‑piece) |
| Saddle Size | 4.25 in |
| Rear Casters | 2 |
| Front Wheels | 2 |
| Weight | 72 lb |
| Duty Level | Standard |
| Warranty | 1 Year |
What Makes INT53350E Stand Out
-
The Lightning™ Lift system is the major differentiator—AFF’s fastest single‑pump rise mechanism.
-
The short chassis gives maneuverability without sacrificing lift height.
-
The 72‑lb weight indicates a robust steel frame, heavier and more durable than economy jacks.
-
Fully compliant with ASME/PASE 2019, which many cheaper jacks do not meet
