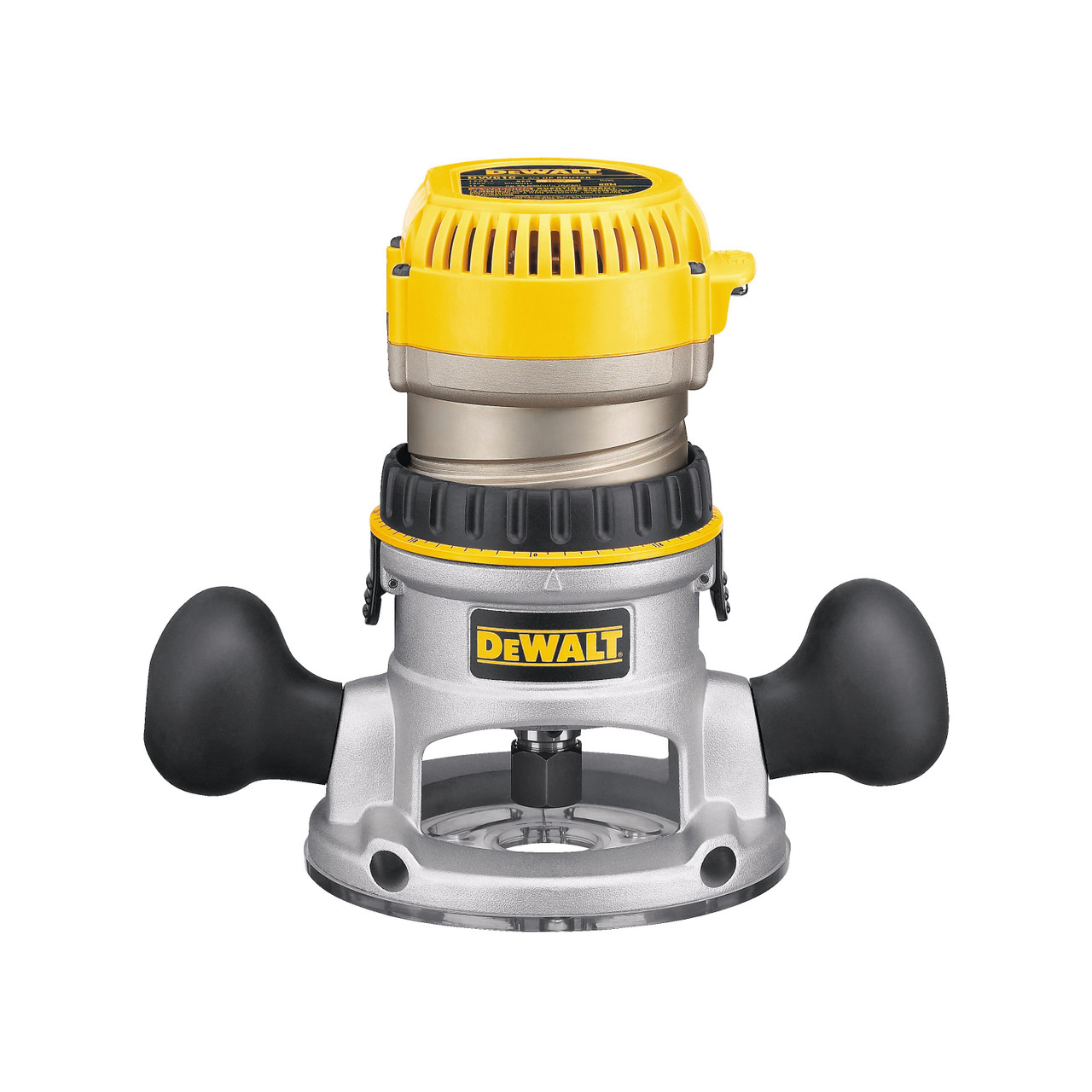

Product Description
The DW616 1-3/4 HP Fixed Base Router has the power to rout smoothly through hardwoods. Provides quick and precise depth adjustments and fast, easy motor pack removal for bit and base changes.
FEATURES & SPECS
FEATURES
- 1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods
- Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
- Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
- Quick release motor latches for fast and easy motor pack removal for bit and base changes
- Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
- Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
- Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
- Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
- Dust-Sealed Switch protects against dust ingestion for longer switch life
- Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
- Nickel plated motor housing for a smooth, long-lasting depth adjustment
- Right or left switch and cordset location provides the ability to have the switch in your right or left hand
- Flat top for easy bit and depth changes
- Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits
SPECIFICATIONS
- AMPS 11.0 AMPS
- BASE DIMENSION 6 IN
- COLLET DIAMETER 1/2", 1/4 IN
- DEPTH STOP MICRO-FINE DEPTH ADJUSTMENT RING
- NO LOAD SPEED 24,500 RPM
- PEAK HORSEPOWER 1-3/4 HP
- PLUNGE STROKE N/A IN
- POWER TOOL TYPE CORDED
- SPINDLE LOCK NO
- TOOL WEIGHT 7.1 LBS
INCLUDES
- DW616M motor pack
- DW6184 fixed base
- 1/4" and 1/2" collets
- Sub-base concentricity gauge
- 2 wrenches
