Product Description

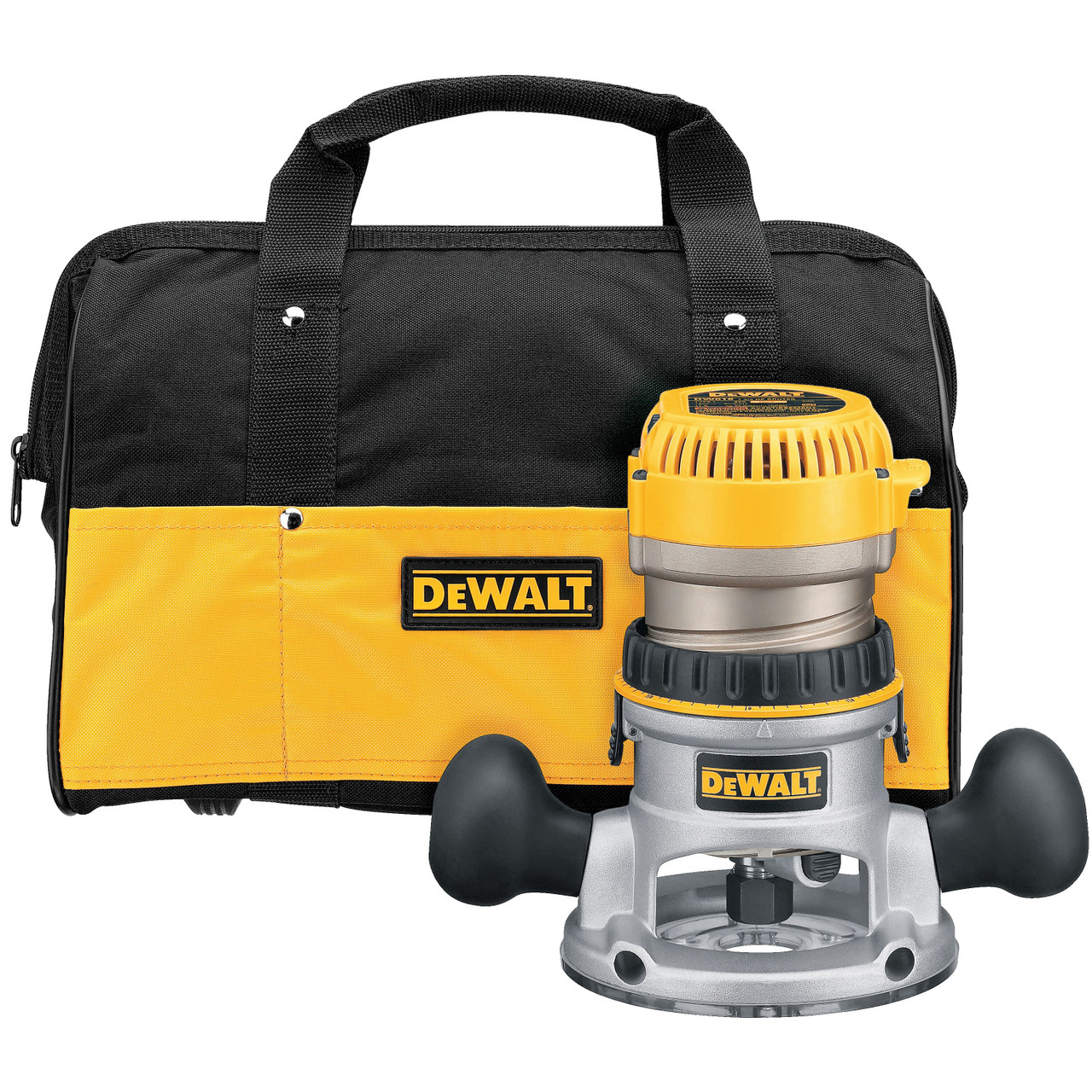

The DW618K 2-1/4 HP EVS Fixed Base Router Kit with Soft Start has a powerful motor for routing through tough hardwood at the user's desired speed. Features precise depth adjustments and fast, easy motor pack removal for bit and base changes.
FEATURES & SPECS
FEATURES
- 2-1/4 HP (maximum motor HP), 12.0 amp electronic variable speed motor provides the power to rout smoothly through the toughest hardwoods
- Electronic variable speed with full feedback control for constant speed under load from 8,000-24,000 rpm and soft start to reduce start-up torque for enhanced control
- Adjustable, tool-free, steel motor cam lock makes depth adjustment and base changes quick and solid-locking
- Quick-release motor latches for fast and easy motor pack removal for bit and base changes
- Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
- Spindle lock button allows for single-wrench bit changes
- Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
- Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
- Dust-Sealed Switch protects against dust ingestion for longer switch life
- Heavy-duty, precision-machined, die-cast aluminum base and motor housing for durability and low tool weight
- Nickel-plated motor housing for a smooth, long-lasting depth adjustment
- Right or left switch and cordset location provides the ability to have the switch in your right or left hand
- Flat top for easy bit and depth changes
- Self-releasing, long, eight slot collets for better bit retention and elimination of frozen bits
- Micro-fine, depth-adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
SPECIFICATIONS
- AMPS 12.0 AMPS
- BASE DIMENSION 6 IN
- COLLET DIAMETER 1/2", 1/4 IN
- DEPTH STOP MICRO-FINE DEPTH ADJUSTMENT RING
- NO LOAD SPEED 8,000-24,000 RPM
- PEAK HORSEPOWER 2 1/4 HP
- PLUNGE STROKE N/A IN
- POWER TOOL TYPE CORDED
- ROUTER BASE FIXED BASE
- ROUTER TYPE MIDSIZE ROUTER
- SPINDLE LOCK YES
- TOOL WEIGHT 7.2 LBS
INCLUDES
- DW618M motor pack
- DW6184 fixed base
- 1/4" and 1/2" collets
- Wrench
- Large hole sub base
- Storage Bag
