Product Description
Stationary 13" thickness planer with 15 Amp motor, three-knife cutter head, two-speed gearbox, fan-assisted chip ejection, and automatic carriage lock for precision woodworking.
Overview

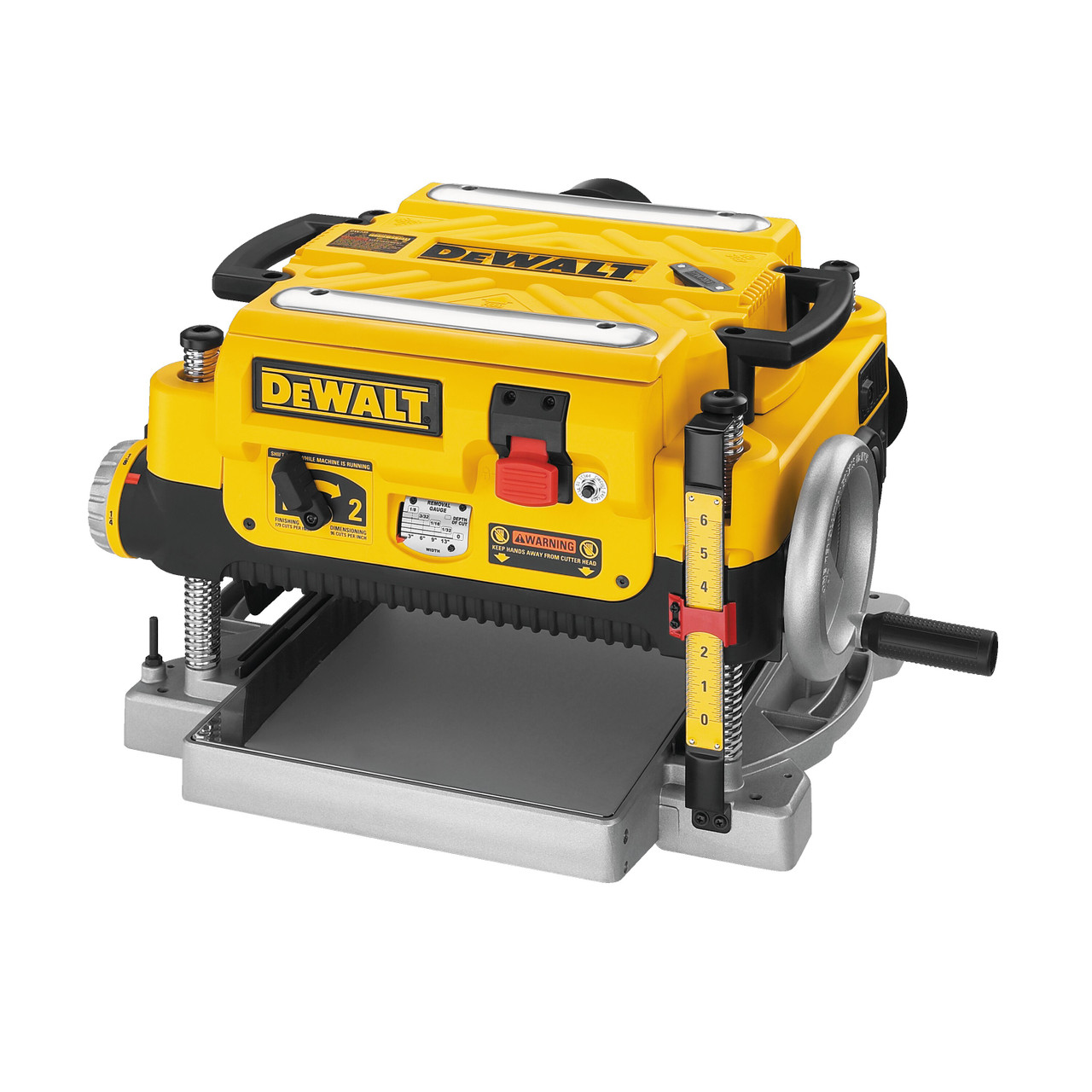

The Dewalt DW735 Thickness Planer is built for professional woodworking, delivering smooth, accurate cuts in wide materials. Powered by a 15 Amp motor, it handles large cuts with ease. The three-knife cutter head runs at 10,000 RPM, offering 30% longer knife life and faster blade changes. A two-speed gearbox lets users optimize cuts per inch at 96 or 179 CPI. Fan-assisted chip ejection keeps the workspace clean, while the automatic carriage lock minimizes snipe. With a rigid 19-3/4" cast aluminum base and extra-large turret depth stop, this planer ensures accuracy and durability.
Key Features
-
15 Amp, 20,000 RPM motor for large cuts
-
Three-knife cutter head at 10,000 RPM
-
30% longer knife life, faster changes
-
Two-speed gearbox: 96 or 179 CPI
-
Fan-assisted chip ejection system
-
19-3/4" cast aluminum base for rigidity
-
Automatic carriage lock reduces snipe
-
Material removal gauge and thickness scale for accuracy
-
Extra-large turret depth stop for repeat settings
Technical Specs
-
Model Number: DW735
-
Motor Power: 15 Amps
-
No Load Speed: 20,000 RPM (motor) / 10,000 RPM (cutter head)
-
Width Capacity: 13"
-
Depth Capacity: 6"
-
Max Depth of Cut: 1/8"
-
Planer Type: Stationary
-
Tool Weight: 92 lbs
-
Power Tool Type: Corded Thickness Planer
Includes
-
Dust Hose Adapter
-
Thickness Planer Crank Handle
-
Blade Change T-Wrench
End-of-Page Summary
Dewalt DW735 13" Thickness Planer with 15 Amp motor, three-knife cutter head, and two-speed gearbox for professional woodworking precision.
